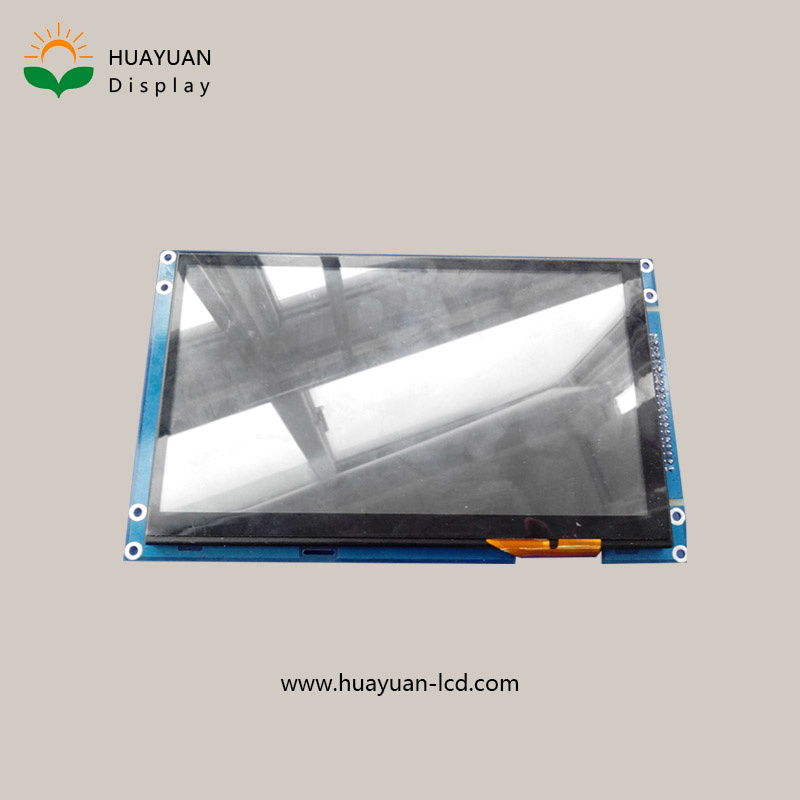

LCD Display 800X480 with Capacitive Touch Screen

LCD Display 800X480 with Capacitive Touch Screen
Price: US $ 9.99-16.9/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TFT178A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LCD Type: TFT
Backlight: 21 LED White
Resoluton: 1024X RGB X 600
Outline Size: 164.9mmx100X5.6mm
Operating Temperature: -20~70 Degree
Screen Size: ≤17"
Application: Graphic Design
Aspect Ratio: 16:9
Feature: Touch Display
Type: TFT
Widescreen: Widescreen
Response Time: 5ms
3D: Not 3D
Interface Type: RGB or Others
Optimum Resolution: 800X480

Product Description

LCD Display 800X480 with Capacitive Touch Screen

General Specification
Display resolution: (pixel)  800(H) x 480(V)
Driver element:  A-si TFT active matrix
Display mode::  Normally White, Transmissive
Active area (mm): 154.08(H) x 85.92(V)=5creen size (inch)
diagonal pxel ph (mm):0.1926(H) x 0.1790(V)
Color configuration:  R, G, B vertical Stripe
Panel outline (mm): 162.5 (W) x 96.62 (H) x1.43 (Pol) (D)
Weight (g) :45 (Typ.)
Surface treatment:  Anti-Glare
Color saturation: 50%
Optimum viewing direction: 6 o'clock
Glass thickness (mm):0.5
Transmittance: 5.11%
Input signal:  8 bit RGB
Panel Power consumption: 0.226W (Typ.)

The  is a wide 7" LCD FOG with thin film transistors as active elements and contains
800(H) x 480 (V) pixels. Each pixel is divided into red, green and blue dot, which are arrange in
vertical stripe. The FOG is normally white mode, and can be applied to the transmission type display.
Backlight unit (BLU) is not built in.

FAQ
FAQ
Q1: Are you a factory or trading company?
A1: We are manufacturer.
Please refer to our company show
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station.
Q3: How can I get some samples?
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount.
Q4: How does your factory do regarding quality control?
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification.
Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement
Delivery time: 5-7 days for sample and 25-30 days for mass production.
Cooperate Supplier: Tianma, Innolux, Sumsung,, Varitronix, CPT, BOE, HSD, Chi mei
Exhibition information: Our company will participate 2017 electronics exhibition in Korea.
Related products:
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized.
Application:
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics.
Contact Us: Send inquiry to us to get newest price and information.
Tel: +86-731-28668968
Fax: +86-731-28660280

Related Products
1. Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.)
2. Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.)
3.TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17" , etc.
4. TN/STN/HTN/VA segment custom lcd,LED backlight panel
All kinds of LCD Module can customize according to customer`s requirement.

Safety
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
1. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
