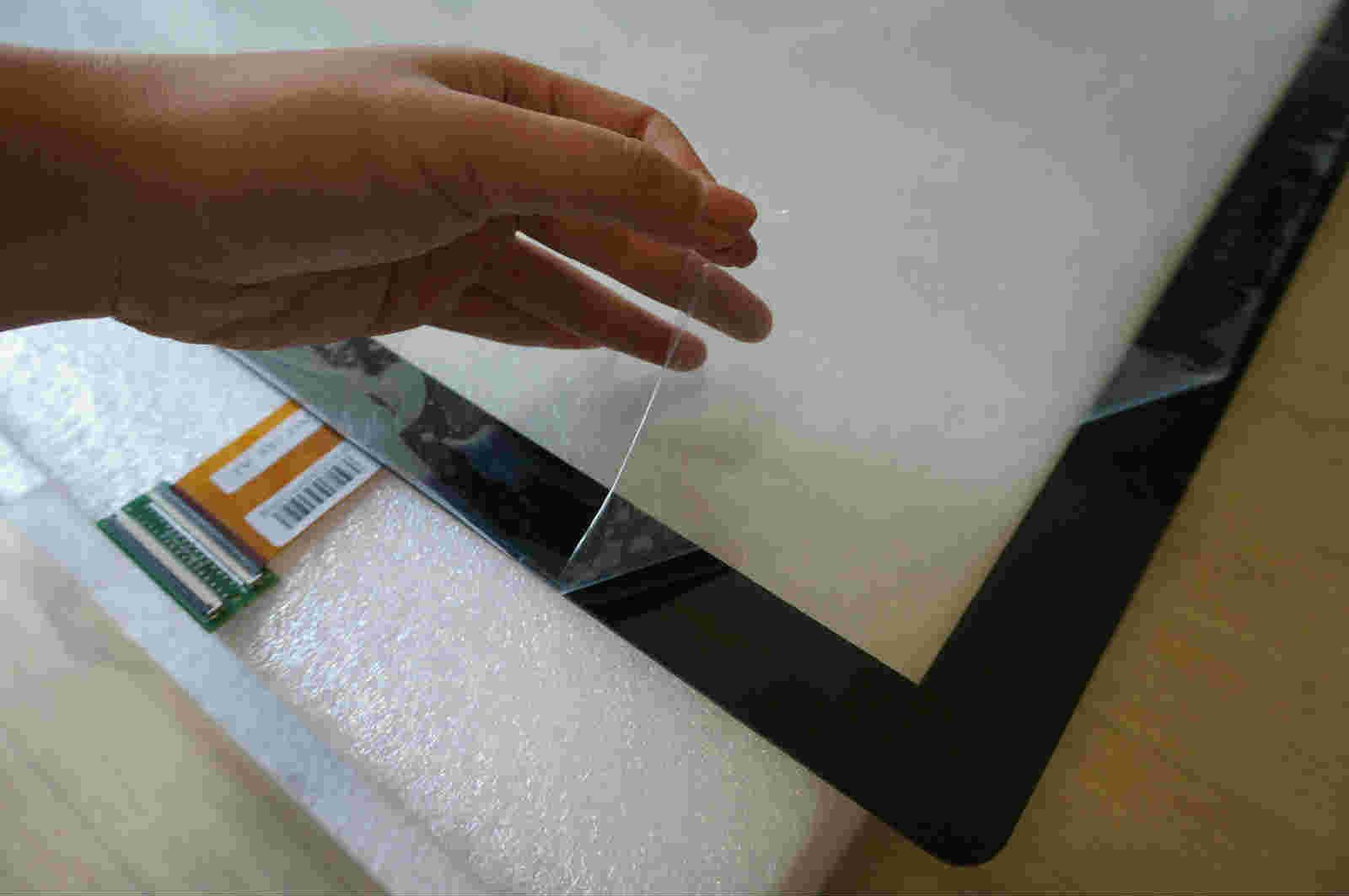

Large Format Projected Capacitive Touch Screens

Large Format Projected Capacitive Touch Screens
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: HL-CTS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen Size: >60 Inches
Aspect Ratio: 16:9
Application: Public Information Inquiry System
Screen Type: Capacitive
Resistive Touch Screen Type: Digital
Customized: Customized

Product Description


SPECIFICATION


 General
 Product Name Capacitive Touh Screen
 Module Substrate Optical Grade PET Film / Film on Glass
 Multi-Points Support YES
 Basic Featres
 Outline Dimensions(mm) 42inch 992.00(H)*586.00(V)  ±1.0
  55inch 1267.00(H)*738.00(V)  ±1.0
  65inch 1515.48(H)*890.52(V)  ±1.0
 Viewing Area(mm) 42inch 932.00(H)*526.00(V)  ±1.0
  55inch 1207.00(H)*678.00(V)  ±1.0
  65inch 1430.38(H)*805.42(V)  ±1.0
 Module Thickness(mm) 42inch 3.275 - 3.350
  55inch 2.475 - 2.550
  65inch 2.375 - 2.45
 Glass Thickness(mm) ±0.28    42inch:2.8 ; 55inch:2.8 ; 65inch:1.90
 Glass Corner Radius(mm) x 4    42inch:10.0 ; 55inch:10.0 : 65inch:16.4
 Glass Edge Bevel(mm) ±0.05   42inch:0.20 : 55inch:0.30 : 65inch:0.30
 Characteristics
 Total Transmittance 75% ± 3%
 Haze <5%
 Display Recommendations
 AUO P420HVN | P550HVN2.2
 LG LG420E/D | LD550DUN-TGB1
 INNOLUX V650HP2
 SAMSUNG LSC650HNO2-G
 Electrical Characteristics
 Interface Standard Full Speed USB;USB2.0 and above compliant
 Power Supply +5Vdc<500mA(via USB connection)
 Device Driver Windows: Win8 Retail Version,Win7,XP*
  IOS*:Mac OS 10.9(Mavericks)
  Android:5.0,4.0~4.4
  *Limited to single-point touch
 Regulatory and Enviromental

 Electrostatic Discharge Immunity
 (ESD)

Air Discharge:±8kv
Direct Contact Discharge:±4kv

 Electromagnetic Interference Immunity
 (EMI)

FCC CFR Part 15 Subpart B&C
EN55022(CISPR 22)classB


HUILI TECHNOLOGY CO.,LTD
www.huili-tech.com
HUILI TECHNOLOGY Co., Ltd(HUILI TECH for short)is a creator and supplier of IR Multitouch Overlay and Kiosk. We concentrated development and promotion on interaction application technology. We have got CE, FCC, IP65 and RoHS certificates.

HUILI TECH is a comprehensive high-tech enterprise which is integrated with manufacturing, sale and service. We provide 15"~98" IR Multitouch Overlay, super size multi-touch splicing wall and kiosk.

HUILI TECH gives media companies, advertisers, event and exhibition organizers the ability to display digital contents in various public locations, including museums, science centers, amusement parks, tradeshows, retail locations, bars & nightclubs, real estate presentation centers, corporate showrooms, boardrooms and airports.

Welcome new and old customers from all walks of life to contact us for future busniess relationships and mutual success!
