HCOOL Evaporative Air Conditioner (Centrifugal fan 35000cmh)
JHCOOL have been working with data centres and server room equipment manufacturers to develop a industrial evaporative cooling system which can be used for new projects or retrofitted to existing facilities. Comprehensive process controls maintain compliant temperatures together with all of the connectivity required for the secure and safe operation of the total package.
Evaporative air cooler Working principle
Evaporative air cooler cool the outside air temperature with the directly evaporative cooling, supply the cool and fresh air into the workshop, and then exhaust the hot air outside. The temperature ofthe workshop will be cooled down by exchanging the air inside.
If you want to cool workers beside a high temperature machine but not the whole room, this air cooler is the best choice. It has great advantages such as large coverage area, high wind pressure, low energy consumption and affordable price. We have larger size too.
Comparison
Evaporative air cooler is not an air conditioner, as it does not use a compressor and Freon gas. We could not expect an Evaporative Cooler works as effectively as refrigerated air conditioner. However, compared with air conditioner the advantages of the Evaporative Air Cooler are:
Low purchasing cost
Low power consumption
Low installation cost
Low maintenance cost
Green, energy-saving, eco-friendly
Windows and doors can be kept open
Multifunctional: Air cooling, ventilation, humidification, purifier
Widely used in indoor and outdoor applications

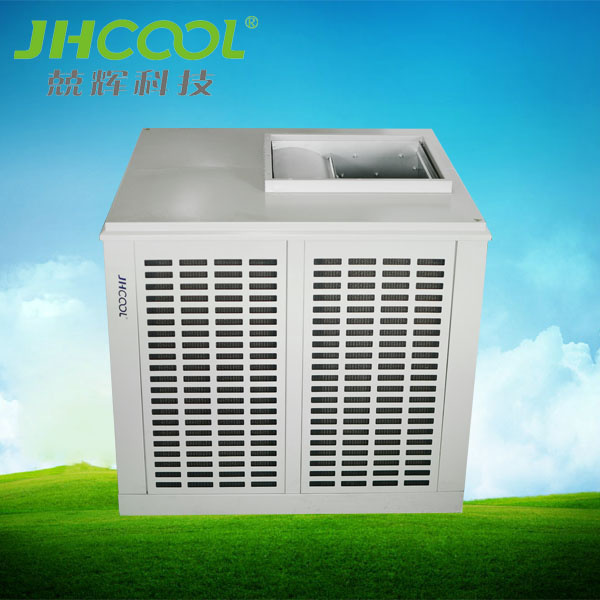

35LM-T evaporative air cooler
Nature's most efficient means of cooling is through the evaporation of water. Evaporative cooling works on the principle of heat absorption by moisture evaporation. It also happens on human skin, the body sweat to cool temperature down.
Huge airflow providing perfect ventilation for big building
35000cmh airflow, suitable for 220~300sqm
Top discharge type for window, wall and ground installation
Strong metal cabinet, good quality galvanized sheet, stainless steel sump as water tank
Big wind pressure to support 90m ducting
|
Item |
JH35LM-32T2 |
Gross weight(kg) |
470 |
|
Airflow (cmh) |
35000 |
Dimension(mm) |
1630x1630x1580 |
|
Power(w) |
8000 |
Packed size(mm) |
1630x1630x1680 |
|
Fan type |
Centrifugal |
Vent size(mm) |
800x800 |
|
Noise(dBA) |
≤80 |
Cover area(sqm) |
220-300 |
|
Watre inlet |
Auto |
Water tank(L) |
60 |
|
Phase loss protection |
Yes |
Water consumption(l/h) |
25-35 |
|
Load Quantity(Full) |
7pcs(40'HQ) |
Power resource(v/hz) |
3ph,380/50 |
|
Control type |
Industrial button |
Overload protection |
Yes |
