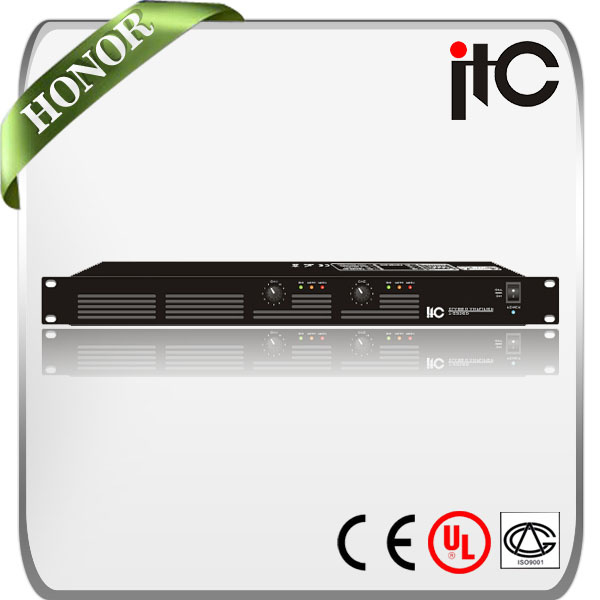

Itc T-2240d Channel Class D Stereo Audio Amplifier

Prod Model:	T-2240D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power Output:	2X240W
Speaker Outputs:	100V
S/N Ratio:	≥85db
Thd:	≤0.1% at 1kHz, 1/3 Rated Power
Power Consumption:	500W
Power Supply:	190V~240V 50Hz, DC24V
Type:	Professional Amplifier
Function:	Amplifier Combined
Voltage:	AC 110V
Element Number:	Push-Pull Amplifier
Used For:	Professional
Conductive Mode:	AB
Usage:	KTV System
Sound Channel:	3.1
Output Number:	2

Product Description

T-2240D/T-2350D/T-2500D
ITC 2 Channel Class D Stereo Audio Amplifier
Description:
This range of two channel power amplifier is Class-D series, which built two separate
Amplifiers into a single chassis. The output power of this series amplifiers are 240W, 350Wand 500W by two channels. The amplifiers are designed to be both tabletop and rack mountin 1U height. A shinning feature of this amplifier is that power electricity saving technology has been adopted. From one hand, switch power technology with APFC (Active power factor correction) had enhanced the efficiency up to 85%. From another hand, this amplifier is also preferable for much lower heat generation of less than 55 even at severe working conditions, thus this benefits are not only good for a green environment but also good for extension of life span. Two channel separate balanced line inputs by phoenix connectors. Two channel RJ45 ports for remote power control, volume control and status monitor. Remote power on/off could be done through the RJ45 port. Two channel separate speaker outputs of 100V line without transformer. Two Channel separate volume control. Two channel separate status indicators include signal, peak and protection. AC 190V to 240V wide voltage input suitable for global distribution. Two channel separate DC 24V input for higher reliability, which is also designed of wide range protection within 20V to 25.6V, so as to protect battery during power shortage and protect circuit from high voltage damage. Two channel separate cooling system to ensure the system internal temp kept under 55. Extensive protection includes high temp, overload and short-circuit.

Feature:
* Class-D series digital power amplifier

* Switch power technology of APFC (Active power factor correction)

* 85% high efficient amplifier

* Low power consumption and less heat generation

* Two channel power amplifier in 1U height

* RMS power output of 240W, 350W and 500W by two channels

* Two channel balanced line inputs by phoenix connector

* Two channel separate speaker outputs of 100V without transformer

* Two channel RJ45 ports for remote power control, volume control and status monitor

* Remote power on/off could be done through the RJ45 port

* Two channel separate volume control

* Built-in powered band pass filter for 80Hz to 16kHz signal

* Two channel separate cooling system for each channel

* Two channel separate status indicators include signal, peak and protection

* Extensive high temp, overload and short-circuit protection

* AC 190V to 240V wide voltage input

* Two channel separate DC 24V inputs with wide voltage protection
