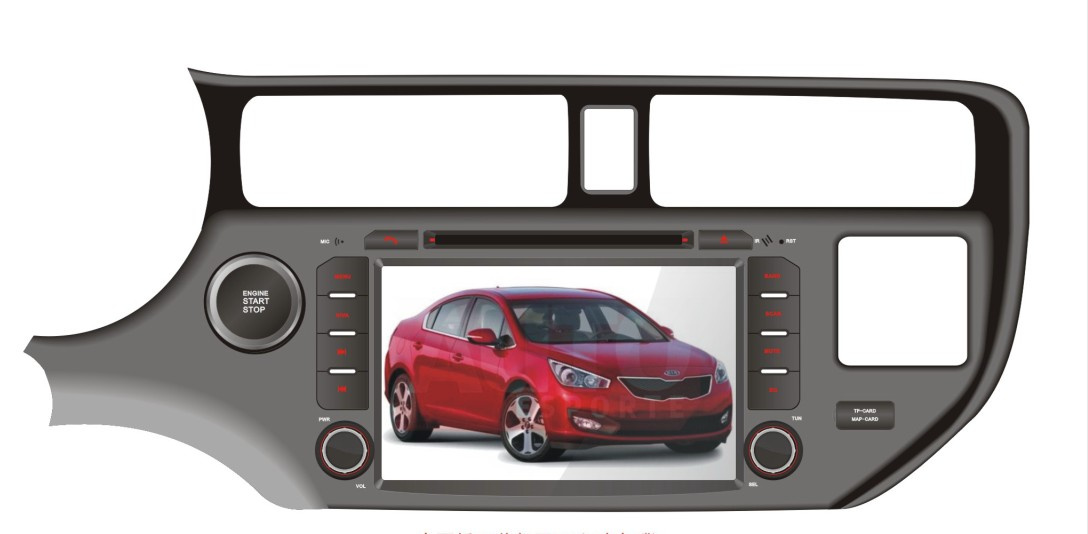

Isun Digital Touch Screen Car Audio System for KIA Rio 2012 (TS7565)

Isun Digital Touch Screen Car Audio System for KIA Rio 2012 (TS7565)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: TS7565
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Digital Touch Screen Car Audio System for KIA Rio
Size: 7 Inch
Resolution: 800*480
GPS: Built in
Operation System: Wince 6.0
Steering Wheel Control: Support
Bluetooth: Support
Dual Zoom: Support
Product Type: Car Audio System
Supply Type: OEM/ODM
Certification: CE
Video Output: 2 RCA
Audio Output: L/R Channel
Voltage: 12/24V
Placement: Dashboard
Combination: Bluetooth, MP3/MP4 Player, GPS, Radio, TV, iPod

Product Description

7" Digital touch screen Car audio system for KIA Rio 2012:

Key Features:

1.7 inch 16: 9 800*480 digital high definition TFT LCD touch screen car DVD
2. Built-in GPS navigation system
3. Build-in Bluetooth for hand free (Coming Tel No. Display function & Call out directly by touch screen)
4. SD card slot, support MP3/MP4/DIVX/WM etc
5. Compatible with MP3/MP4/DVD/VCD/CD/CD-R/DIVX/CD-RW etc
6. With excellent mechanical anti-vibration and electronic shock protection
7. Uniquely designed circuitry including standby function to increase battery durability
8. Adjustable parameters can be memorized automatically, and resume back to the default value
9.3D interface make operation to easy
10. Real time clock function
11. One channel video input, two channel video output; Two channel audio input, three channel audio output
12. Dualzone function (lister radio/CD while using GPS)
13.30 preset radio stations
14. Multi-function OSD menu
15. Small light available on the button of the panel
16. Fluorescent keys available for the remote control
17. Radar detection and rearview mirror both available
18. Original Canbus system for steering wheel control
19. Built-in DVB-T for digital television system (optional)
20. Built-in TV tuner
21. English/Arabic/Russian/Portuguese/Italian/Hebrew/Turkish/Czech languages etc are available

We also can make Special Car DVD for the following cars --- (about 300 types)

German Cars:
VW, Benz, Opel
Japanese Cars:
Toyota, Honda, Nissian, Mitsubishi, Suzuki, Mazda, Subaru
Korea Cars:
Hyundai, KIA
American Cars:
Chevrolet, Ford, GMC, Buick, Chrysler
French Cars:
Renault, Citroen, Peugeot
Chinese Cars:
Geely, BYD, Brilliance, MG, Roewe
System parameters
Working voltage DC 11V-14V
Working current MAX 15A
Standby current 25 mA
Video system automatic PAL/NTSC
GPS specification
Operation system WINCE 6.0 CORE
Support map Garmin, Tomtom, IGO, Route 66 etc
Processor Sirf Prima
EMSmemory 64MB SDRAM
Storage device 128MB
Display output CVBS+S-VIDEO output
Audio output Stereo CD Quality
Main frequency 600MHz
Support audio type MP3/PCM/WMA
Support video type ASF/AVI/WMV/DIVX
Chipset SIRF STAR 3
Frequency 1.575GHz
Channel number 20channels
Tracking sense degree -159dbm
Position accuracy 10m, 2D RMS, WAAS enable
Velocity 0.1m/s
Data renewal rate 1Hz
Re-catching time average 0.1s
Hot start time average 1s
Warm start time average 38s
Cold start time average 42s
The biggest fixed height 18000m
The biggest velocity 515m/s
Power specification DV 12V, current<500mA
Consumption 4.5W(12V/360mA), normal 3W(12V/250mA)
DVD parameters
Video output range 1+10.2Vp-p(75Ω)
Disc spec diameter 12cm disc
Compatible disc DVD/VCD/CD/MP3/WMA/JPEG/MPEG4
Amplifier parameters
Testing voltage 13.8V
Maximum power output 4×45W
Speaker impedance 8Ω (4-8Ω acceptable)
Audio parameters
Track imbalance degree ≤2dB
Segregation degree ≥45dB
Frequency response 20Hz-20KHz (±3dB)
Volume adjustment Low 100Hz±7dB
Medium 1KHz±7dB
High 10KHz±7dB
Radio parameters
FM/AM frequency FM: 87.5MHz-108MHZ
AM: 522KHz-1620KHz
Tune method PLL frequency complex tune
Display method TFT Graphical User Interface OSD
Storage quantity FM radio: 18channels
AM radio: 12channels
Search method automatic/manual
Isun Digitech Limited is a leading professional manufacturer and exporter of Car DVD Navigation products and electronic products in China. Our products include Car DVD Navigation, GPS Navigator, Bluetooth GPS Receiver, and other digital products.

As a professional supplier, we always place much emphasis on quality control. Special quality control measures have been implemented in the whole process from materials selection to final delivery. Under this system, all products are under strict control with defective items removed.

It is our principle to devote ourselves to offering good quality products with reasonable pricing to all partners. Moreover we have excellent capability of filling customers" OEM requirements. Thanks to our excellent production cost control and constant innovation, we are enjoying the success of providing simple but beneficial experience with our high-tech solutions!

What we understand is Customer satisfaction first, Communication always.
