-520 Lines of Resolution
-1/3" SUPER HAD CCD
-Automatic Gain Control & BLC
-6 Super Long Range IR LEDs
-Unique Design Suitable For Indoor/Outdoor
-Weather Resistance IP65

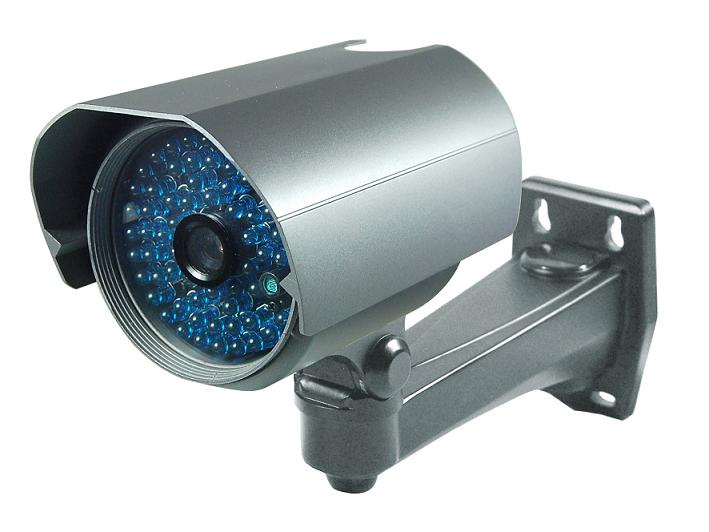

Model Number MC-L3152
Scanning System NTSC 525 lines 2: 1 interlace
PAL 625 lines 2: 1 interlace
Scanning Frequency NTSC 15, 734Hz(H), 60Hz(V)
PAL 15, 625Hz(H), 50Hz(V)
Effective Pixels NTSC 768 (H) x 492(V)
PAL 752 (H) x 582(V)
Electronic Shutter NTSC 1/60-100, 000sec.
PAL 1/50-100, 000sec
Image Device NEW 1/3" Super HAD CCD ( ICX6 **AKA )
Horizontal Resolution 520 TV lines
Sensitivity 0.2Lux, 0 Lux at IR on
Signal to Noise More than 48dB
Gain Control AGC
White Balance Auto ATW 2500-9500 ° K
BLC Auto
Gamma Correction 0.45
SYNC System Internal
Lens/Fousc point 12mm (Optional 6mm, 8mm. 12mm. 16mm )
Video Output 1.0 Vp-p, 75 Ohm
IR LED 64 units 850nm infrared LED
IR Distance 50meters (Subject to IR reflection conditions )
IR Status IR on: Under 10 Lux, by PT auto control
LED life More than 10, 000 Hours
Protection Class IP65
Power Requirement (± 10%) DC12V, 1000mA
Power Consumption (± 10%) IR on: 500mA, IR off: 150mA
Operation Temp. Operating: -20 ~ + 55, Storage: -30 ~ + 80, Humidity: 0~95%RH
Dimensions ( mm ) 88(W) x 80(H) x 172(L)
Weight ( N. W) 1070g
