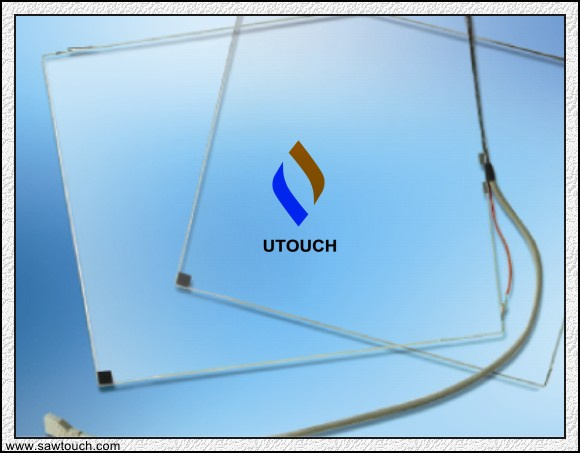

UTOUCH SAW touch screen technology is suggested for use in ATMs, Amusement Parks, Banking and Financial Applications, Gaming Environments, Industrial Control Rooms, and KIOSK. It has excellent durability that allows it to continue working if scratched since the overlay for the touch sensor is a solid glass display. SAW offers superior image clarity, resolution, and high light transmission. We also supply SAW touch screen with Dust-proof, Vandal-proot, Water-proof, Anti-glare.
Function is same as elo touch screen.
|
Specifications |
|
Touch Technology |
Surface Acoustic Wave(SAW) Touch Technology |
|
A. Mechanical |
|
Input Method |
Finger, gloved hand |
|
Available Size |
8.4”-32” |
|
B. Electrical |
|
Positional Accuracy |
Standard deviation of error is less than 0.080 in.(2mm) |
|
Resolution |
Touchpoint density is based on controller resolution of 4096x4096; Plus 255 levels corresponding to touch pressure. |
|
Touch Activation Force |
Typically 100g |
|
Controller |
Serial (RS232) or USB |
|
C. Optical |
|
Light Transmission |
Up to 98% |
|
D. Environmental |
|
Temperature |
Operating: -20°Cto 50°C;
Storage: -40°Cto 71°C |
|
Relative Humidity |
Operating: 40°Cat 10%~90% RH. Non-condensing |
|
Altitude |
3000M |
|
Chemical Resistance |
The touch active area of the touch screen is resistant to chemicals that do not affect glass, such as: acetone, toluene, methyl ethyl ketone, isopropyl alcohol, methyl alcohol, ethyl acetate, ammonia-based glass cleaners, gasoline, kerosene, vinegar. |
|
Electrostatic Protection |
Per EN 61000-4-2. 1995: Meets level 4(15kV air/8kV contact discharges) |
|
Sealability |
Can be sealed to meet NEMA 3/3R/5/12/12K/13.IP64 standards |
|
E. Durability |
|
Surface Durability |
Surface durability is that of glass. Mohs’ hardness rating of 7 |
|
Expected life |
No known wear-out mechanism, as there are no layers, coatings or moving parts. Utouch technology has been operationally tested to more than 50 million touches in one location without failure, using a stylus similar to a finger. |
|
Warranty |
Touchscreen: 5-year limited warranty
Controller: 3-year limited warranty |
|
Agency Approvals |
CE, FCC |
