| Prod Model: |
TJSUN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
Product Description

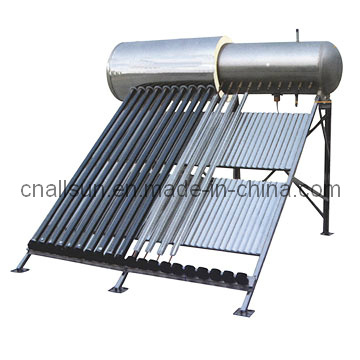

Integrative Pressurized Solar Water Heater
Thermosyphon (passive solar water heater)
1. Inner tank: 1.2 mm food grade stainless steel; Outer tank: 0.4mm galvanized steel
2. Insulation: 55mm
3. Supporting Frame: Galvanized plate 1.5mm
4. Vacuum tube: Absorption rate≥ 96%, Hail resistance 25mm, service life 15 years
5. Capacity: 50-300 Liters
Features:
1. Lots of Pressurized Hot Water: The water in the tank is at full supply pressure, and an internal or external gas or electric booster provides hot water at all times.
2. Stable and reliable system: There is no water in the evacuated tubes, so there is no fouling, no breaking due to freezing, and the collector can safely work at very low temperatures.
3. Melds beautifully with buildings: The optimal design of the collector makes it visually less obtrusive and compatible with existing architectural designs.
4. Intelligent controller with complete functionality: The wall mounted controller allows precise setting and monitoring of system parameters.
| Solar Collector(Heat pipe series) |
| Model | Size(M) | Absorption area (M2) | Length of Tube | Outer Dia of Tube | Efficiency | Losses | Tube Quantity | Manifold | Heat Pipe | Dust Ring Gasket | Vacuum Tube | Mounting Frame | Rack Insert | Container Loading Quantity(set) |
| 20' | 40' | 40'HQ |
| TJH-58/1800-15-C | 1.96*1.13*0.1 | 1.2 | 1800mm | φ58mm | 0.88 | 2.4 | 15 | casing material: Aluminum Alloy; Thickness:1.8mm; Insulating layer:rock wood or foam | pure red copper TU1+water; transfer power:>=150W; Working pressure: 4Mpa; welding pressure: 4Mpa | Silicon Rubber | tri-element tube; High boron and silicon content 3.3; Structure: Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree: P<=5*10-4; Service Life: 15 years | Aluminum Alloy; Thickness: 2.0mm | ABS | 102 | 221 | 278 |
| TJH-58/1800-18-C | 1.96*1.355*0.1 | 1.44 | 18 | 78 | 169 | 213 |
| TJH-58/1800-20-C | 1.96*1.505*0.1 | 1.6 | 20 | 77 | 166 | 209 |
| TJH-58/1800-24-C | 1.96*1.805*0.1 | 1.92 | 24 | 63 | 136 | 172 |
| TJH-58/1800-30-C | 1.96*1.88*0.1 | 2 | 30 | 62 | 134 | 176
|
Jiaxing Tjsun New Energy Co., Ltd., is a high & new technology company which is specialized in manufacturing solar energy products, especially the solar water heaters, with ten years' experience in this line. Tjsun is a global company focused on providing simple and effective solutions for families and businesses concerned about the effects of climate change and rising energy costs. Tjsun solar thermal systems are widely used in both residential and commercial applications to provide hot water, space heating, industrial hot water and even air-conditioning. In 2013, TJSUN Energy spent 200000000RMB to build a production line for Foam glass, Insulation material for Petrochemical and commercial construction use.
Tjsun has a high reputation with the strategy of technological products, normative management, international standard and star-class service. Jiaxing TJSUN New Energy Co., Ltd. Has won quite a good market share due to excellent quality and competitive price. In the coming years, Jiaxing tjsun New Energy Co., Ltd. Would like to cooperate with the customers from all over the world and make more people share the benefits which the solar energy brings.
