| Prod Model: |
WJH-IP-58-1800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE |
Product Description
Specifications

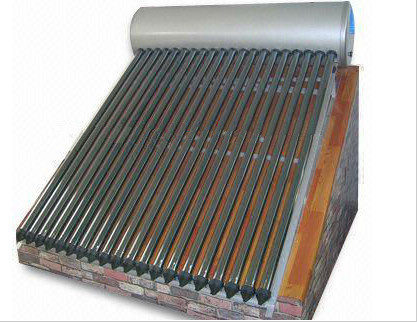

Integrated Pressurized Solar Water Heater
1. Adopts the best conduction performance metal- heat pipe (copper)
2. High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized water tank rapidly
3. The whole pressure of the system is up to 1.2MPA, the inlet could connect the tap water directly, the max pressure can be 1.2MPA
4. No water in the tube, even though one tube broken, the system still work normally
5. The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
Working principle of Integrated Pressurized Solar Water Heater
1. Vcuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized water tank, then water tank will become hot, the result is cold water in tank become more and more hot.
2. No water in vacuum tube making the whole system could bear 1.2MPA pressure.
|
Solar Water Heater(Well-known Trademarks in China, ISO, CCC, SGS & CE Approved |
|
Model |
Tube size |
Tube Qty |
Capacity |
Loading QTY |
|
20GP |
40GP |
40HQ |
|
WJH-IP-5818-15 |
58*1800 |
15 |
150 |
47 |
105 |
123 |
|
WJH-IP-5818-18 |
58*1800 |
18 |
180 |
40 |
87 |
103 |
|
WJH-IP-5818-20 |
58*1800 |
20 |
200 |
35 |
79 |
95 |
|
WJH-IP-5818-24 |
58*1800 |
24 |
240 |
30 |
67 |
79 |
|
WJH-IP-5818-30 |
58*1800 |
30 |
300 |
25 |
55 |
65 |
