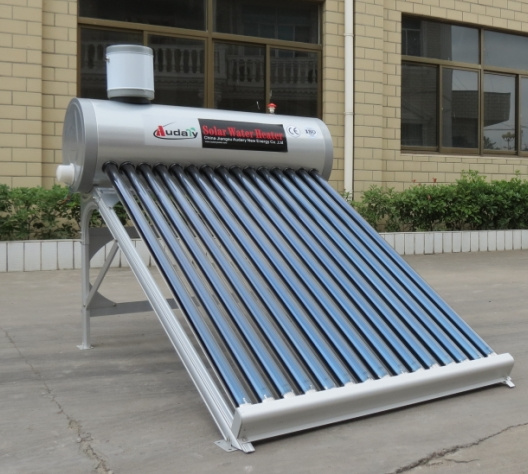

Solar water heater
(1)CE, ISO, SGS, solar keymark
(2)Low pressure, standard SRCC
(3)High Quanlity&Reasonable Price
Solar water heater
We are a professional solar water heater manufacturer with SOLAR KEYMARK and SRCC certificate in Nantong, China.
Solar water heater ( CE ISO SGS SOLAR KEMARK )
ADL series is low pressurized solar water heater
Specification:
1) SUS304-2B stainless steel
2) Vacuum heat-collecting tubes at high temperature with new triangle elements
3) A long time of heat preservation
4) Specially fitting in the areas of acid rain, seawind erosion by salt and bad weather conditions
5) Stable and reliable performance, well wind resistance
6) Patent protected collision from the side bracket resistant design
7) Meeting the requirement of washing clothes, abstersion and bathing
8) Meeting the demand of well-to-do families
Specifications:
1) Thickness of bracket: 1.5mm
2) Glass vacuum tube: 58mm x 1.8m x 10PCS - 36PCS
3) Inner tank: SUS304-2B food grade stainless steel SUS304-2B
4) Outer tank: SUS304-2B stainless steel or color steel
5) Capacity: 100/120/140/150/160/180/240/300/360L
6) Insulating layer thickness: 50mm - 60mm
7) Inner tank thickness of: 0.4mm - 0.5mm
8) Tank diameter: 460mm
9) Pressure: 0PA
10) Heat preservation: 72hrs
11) Hail resistance: 25mm
|
Material |
Evacuated tube |
High borosilicate glass, with aluminum absorption layer of magnetron sputtering |
|
Inner tank |
SUS 304-2B food-grade stainless steel 360mm |
|
Outer tank |
Color coated galvanized steel 460mm |
|
Bracket |
Galvanized steel with electrostatic plastic-sprayed |
|
Thickness |
Insulation layer |
50mm |
|
Inner tank |
0.4mm |
|
Outer tank |
0.4mm |
|
Bracket |
1.2mm |
|
Accessories |
Fasteners |
Stainless steel screws. |
|
Sealing ring |
Macromolecule silicone rubber |
|
Specification |
Heat preservation |
72 hours |
|
Hail resistance |
20-30mm |
|
Max Water Temperature |
Can reach at least 95 degree |
|
Circulation |
Direct /Open loop (Active) |
|
Heating System |
Thermosyphon (Passive) |
|
Connection Type |
Direct-plug |
|
Absorption Rate |
≥ 0.95± 0.02 |
|
Emission Rate |
≥ 0.95± 0 ≤ 0.20± 0.02 |
|
Vacuum Tightness |
P≤ 5.0*0.0001Pa |
|
Idle sunny property parameres |
Y=220-260. /KW |
|
Total Weight 87KGS |
87KGS |
|
Certifications |
Solar Keymark, SRCC, SGS, CE, ISO9001 |
|
Warranty 5 years |
5 years |
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
