| Prod Model: |
IR-2011D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Undertone OEM |
| Product Number: |
IR-2011d |
| Materials: |
ABS+PC/PU |
| Impedance: |
32 Ohms |
| Driver Unit Diameter: |
30mm |
| Certificate: |
CE, Rosh, FCC |
| Sensitivity: |
> 75dB |
| Track: |
Dual Channel |
| Original Of Place: |
Guangdong China(Mainland) |
| Playing Music Time: |
8 Hours |
| Style: |
Headband |
| Line-Control: |
Without Line-Control |
| Jack Type: |
3.5mm |
| Microphone: |
Without Microphone |
| Type: |
Dynamic Headphones |
| Function: |
Infrared |
| Use: |
Household |
| Earpad Size: |
Medium |
| Color: |
Gray |
| Wire Material: |
PVC |
Product Description

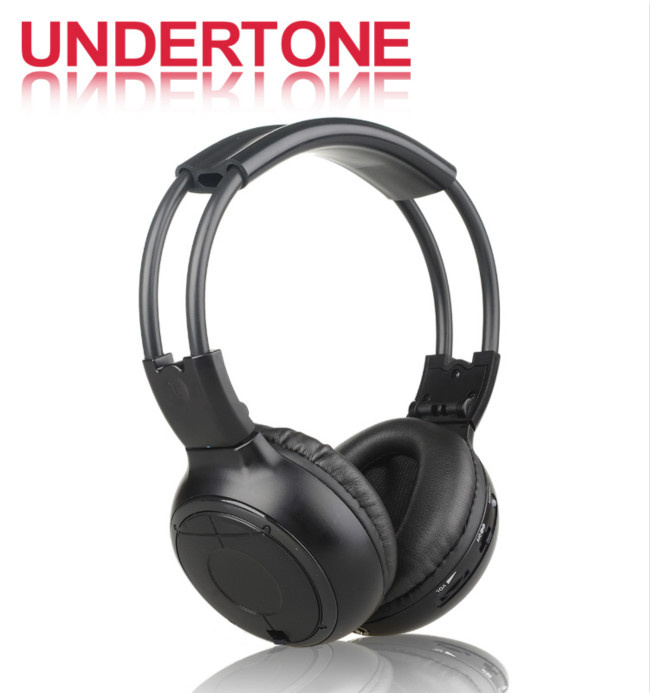

True Fidelity Infrared Wireless Headphones
Product s Description
? In-Car Dual Channel Foldable Infrared Headphone
? Fashion design, superior sound, good quality infrared stereo headphone
? Suitable for car audio system, Up to 10 meters operating distance
? Ultra light design for comfortable wearing
? High-quality transmission and high sound quality
? Wireless IR headphones to enjoy in car listening without the hassle of cables
? 3.5mm Auxilary port. Allows plug in use on any Ipad/Pod, MP3 devices that uses a 3.5mm auxillary cord (cord not included)
? Soft padded ear pieces and an adjustable headband ensures a comfortable fit for hours of listening enjoyment.
? Auto auto mute function.: When there is no infrared signal transfer to IR headphone, the headphone will auto mute.
? Auto power off function: When the IR headphone can not receive IR signal for 3-5 minutes, the headphone will automatically turn off.
? Carrier frequency: A Channel: Left: 2.3Mhz/Right: 2.8Mhz. B Channel: Left: 3.2Mhz / Right: 3.8Mhz.
? Effective distance: A frequency 4-6m, B frequency 8-10 m
? Foldable headband for easy storage
? Two channel will do everything a one channel headphone does but gives you the option to change between two different audio sources.
Technical Specification:
| Brand Name | Undertone OEM |
| Driver unit diameter | 30mm |
| Impedance | 32 ohms |
| Audio model | stereo |
| Power | 2 * AAA batteries required |
| Sensitivity | > 75dB |
| SNR | > 55dB |
| Frequency Response | 30-20,000Hz |
| Carrier frequency | A channel: L channel 2.3MHz
R channel 2.8MHz
B channel: L channel 3.2 MHz
R channel 3.8MHz |
| Net Weight/Unit | about 210g |
| Distortion | <1% |
| Color | Multi-color |
| Transfer distance | Around 10m |
| Channel separation | >=40dB |
| Theory standby time | up to 180 hours |
| Playing music time | 8 Hours |
| Effective distance | A frequency 4-6m, B frequency 8-10 m |
| Jack Type | 3.5mm audio jack(optional) |
| Net Weight/Unit | about 210g |
| Maximum Input Power | 50 mW |
Packaging & Delivery
?Packaging Details: Gift box with export standard carton/ Durable storage box(optional,extra price)/Kraft paper box
?Reference Size:Φ203*75*197
?Reference Weight : 210(g)
?Color Box Measure: 12.5*9*12.5/pcs(mm)
?Delivery Details: usual 20 working days after receiving payment
