Infrared Touch Screen Working Principle:

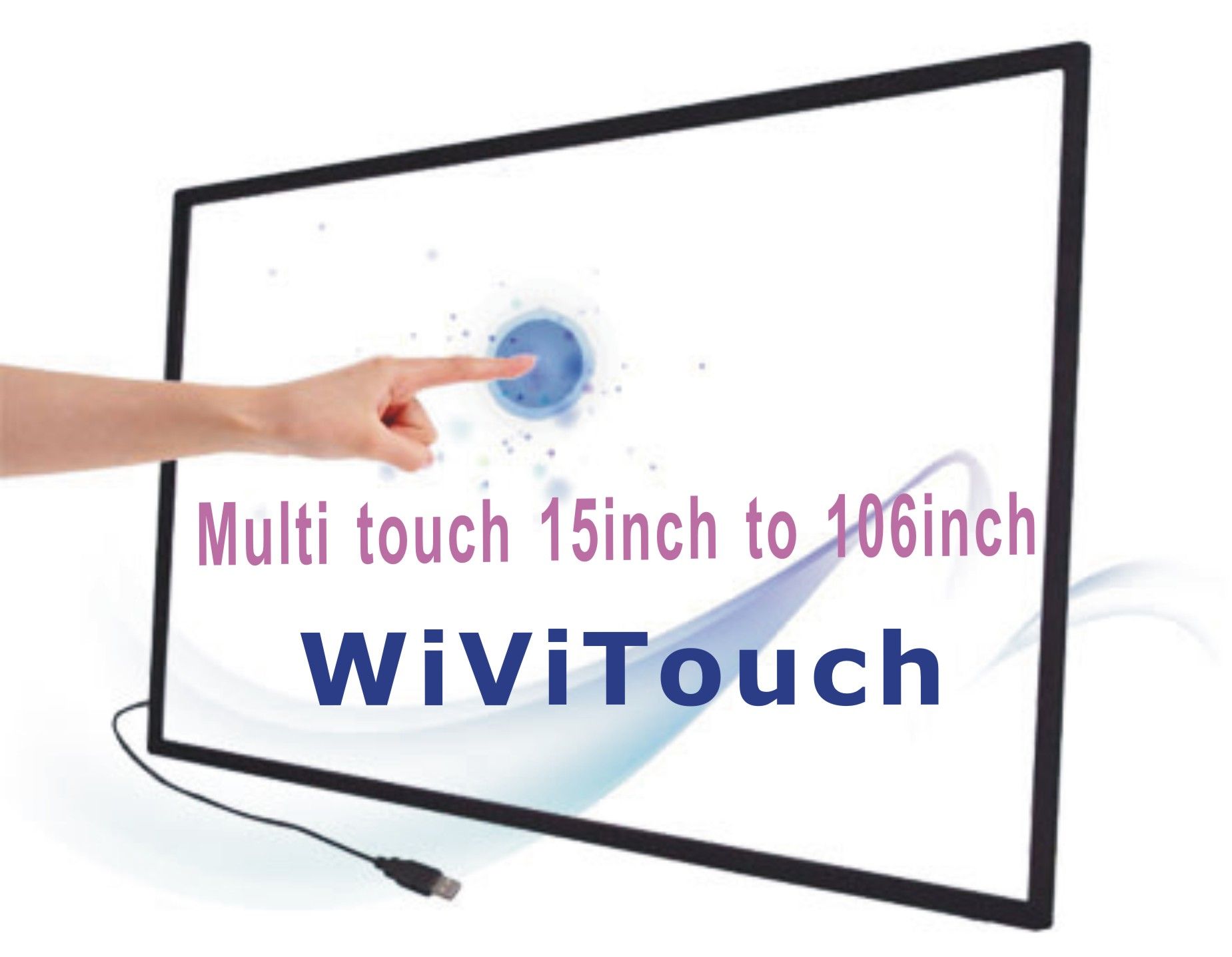

Infrared Touch Screen is a touch frame which is usually installed in front of the display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation environment while allowing the IR beams to pass through.
The Infrared Touch Screen controller sequentially pulses LEDs to create a grid of IR light beams. When a user touches the screen, enters the grid by a stylus which can interrupt the IR light beams, the photo transistors from X and Y axes detect the IR light beams which have been interrupted and transmit exact signals that identify the X and Y axes coordinates to the host.
1. Advantages:
*2points touch (Multi touch)
*IP65 Available
*Support zoom in/out, display rotation
*Withstands severe environments
*Stable, no-drift calibration performance
*Vandaproof and abrasion-resistant screens, ideal for rugged applications
*Parallax-free performance for LCD displays
*Sealable against contaminants
*Operable in various light conditions, indoor and outdoor
2. Applications:
*Point-of-information kiosks, Desktop touch monitor
*Electronic catalogs, Ticket machine
*Gaming, POS, ATM, lottery, and amusement
*Industrial control rooms
*Computer-based training
*In-vehicles and transportation
*Medical instrument
3. Certification:
* CE
* RoHS
Acoustic Wave(SAW) touch screen, Multi-touch Infrared touch screen/IR Touch Panel frame, LCD Touch Monitor, Kiosk, Interactive touch foil, LCD touch Panel PC/ Computer/ bezel Monitor, Touch Tablet PC, Touch advertisement monitor, Touch advertising display, Touch Payment Kiosk, touch solutions, Optical touch screen and Capacitive touch screen, Any size of touch panel we can customized for you. Just let us know the requirement. For Multi-touch IR Panel, we can offer Dual-touch(2 points), 6 points, 8 points, 10 points, 16 points and 32 points, No ghost point etc.
|
Size |
|
General Size |
15 inch to 106 inch |
|
Fit in with |
Panel display device |
|
Performance |
|
Touch Mode |
Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out |
|
Resolution(Interpolation) |
4096*4096 |
|
Linearity Error |
< 1.5mm |
|
Response Speed |
< 15ms |
|
Mechanical |
|
Input Method |
Finger or gloved hand (rubber, cloth or leather) |
|
Minimum Touch Object |
2.5 mm X 2.5 mm |
|
Vandal-proof |
No break by 1-pound steel ball dropping from 130 cm high |
|
Optical |
|
Glass: |
Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional |
|
Light Transmission |
92% |
|
Gloss |
Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units |
|
Environmental |
|
Temperature |
Operating Range: -20° C ~ 70° C; |
|
Storage Range: -40° C ~ 85° C |
|
Relative Humidity |
Operating Range: 0%~90% RH (no dew falls) |
|
Storage Range: 0% to 95% RH (no dew falls) |
|
Ambient Light |
Direct sunlight 90° to ± 30° to the display surface Touch detection operational |
|
Direct sunlight all angles to display surface Free of false touch reports |
|
Electrical |
|
Operation Voltage |
Typical +DC 5V, +4.75V to +5.25V |
|
Power Supply |
Size under 52” (include 52” )USB or PS/2 Interface, power ripple max. 200mV rms |
|
Size above 52” (52” not included): external AC-DC power adaptor |
|
Interface |
Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
|
Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity |
|
Current |
Typical 150MA@+5VDC; 350mA, maximum |
|
Power |
< 1.5W, operating current< 300mA |
|
Electrostatic Protection |
15 kV air / 8 kV contact discharges (EN61000-4-2, 1995: Level 4) |
|
Controller |
Integration inside touch panel |
|
Agency Approvals |
CE, FCC, Rohs |
|
Operating System |
|
Operation System: windows 7 |
