Specifications

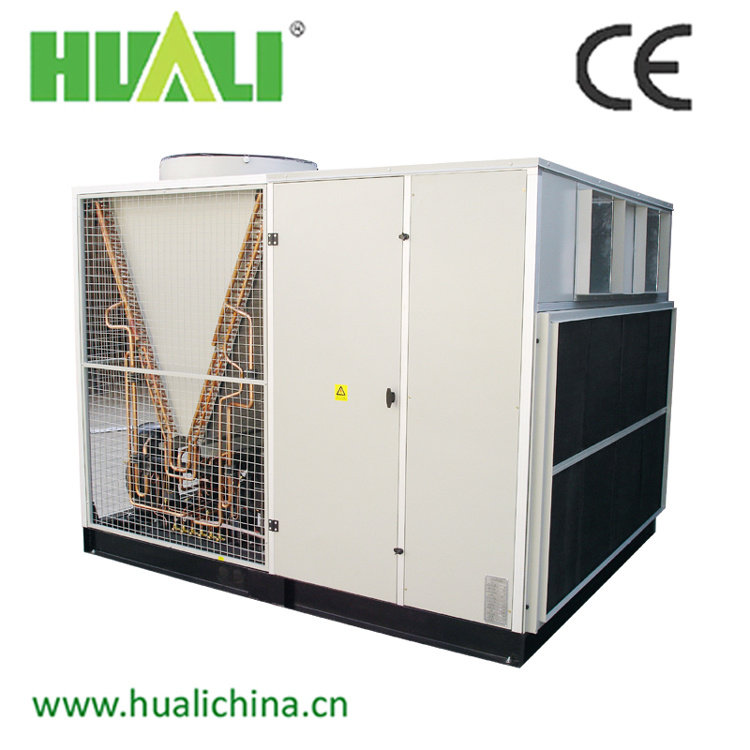

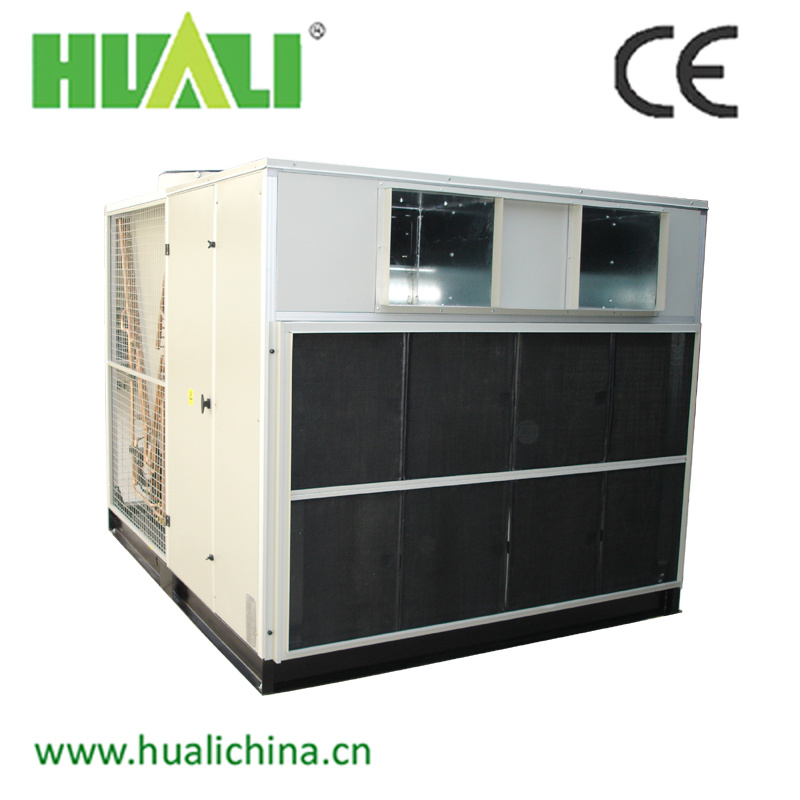

Rooftop air conditioner
*CE Certificate
* Refrigerant: R22, R407C
*Power supply: 380V, 3PH, 50HZ
Product advantages:
Rooftop Air Conditioner are getting increasingly perfect with the features of high energy-efficiency ratio, low noise, high static pressure, high control accuracy, safety, reliability, little vibration, high degree of corrosion resistance, good sealing performance, excellent rainproof and dust proof performance, convenient installation beautiful appearance etc.
The integral rooftop air conditioning unit can be wildly used in villas, stations, shopping clubs, workshops, industrial plant and other civilian or industrial establishments.
1. Diverse specifications
Various types: Refrigerating-only type, electric heating type, constant temperature and humidity type, heat pump type, fresh air type and clean type, etc
2. Superior Components
The main parts we use are all famous product with superior quality and high performance. The high efficiency scroll or screw compressors can work stably; The centrifugal fans have strictly passed the dynamic & static balancing adjustment test and are equipped with effective vibration isolation measures which can effectively reduced the noise.
3. Intelligent control
The microprocessor control and liquid crystal display can not only control the temperature and humidity, but also have the functions of malfunction self-diagnose and malfunction alarm. Moreover, due to the simplified operating environment and user-friendly operation guild, you can set up the operating time any way so as to realize automatically monitor.
4. Multi- protection
Units are equipped with multi-protections, such as high/low pressure protection, short circuit protection, motor overheating protection, etc. All of those can ensure the unit operating safe and reliably.
5. Unique design
For the evaporator and condenser, we use enhanced heat transfer technology, , so the unit is high efficiency and energy saving; Besides, the unit can achieve centralized control with can timely control the matching condition of the energy of the unit and the load of the air conditioning room, so that the unit can operate in the best situation. The energy saving effect is remarkable and the operation cost is low.
6. Special treatment
As the specific requirements of the operating occasions, the units can be design as anti-exploded and anti-corrosion. It can be widely used in the occasions which exist or possible exist II A, II B grade, T1 ~ T4 flammable gas or explosive mixture of steam and air in the industries of petroleum, chemical, metallurgical, military, medicine, etc.
| Rooftop air conditioner |
| Model HLLA~ | 18F | 21F | 26F | 35F | 50F | 70F |
| Cooling capacity | KW | 17.5 | 21 | 26 | 35 | 52.5 | 70 |
| Cooling power | KW | 6.4 | 7.8 | 9.6 | 12.9 | 16.7 | 20.4 |
| Heating capacity | KW | 19.3 | 23.0 | 28.5 | 38.5 | 57.8 | 77.0 |
| Heating power | KW | 6.3 | 7.4 | 9.5 | 12.4 | 16.2 | 19.6 |
| Air flow | m 3 /h | 3700 | 4200 | 5200 | 6600 | 9200 | 12300 |
| CFM | 2100 | 2470 | 3060 | 3880 | 5410 | 7240 |
| Static pressure(Max) | Pa | 80 | 80 | 80 | 300 | 300 | 300 |
| Compressor | Type | / | Scroll |
| Quantity | set | 1 | 1 | 2 | 2 | 2 | 2 |
| Power supply | V/PH/HZ | 380V,3PH,50HZ |
| Refrigerant | / | R22 |
| Refrigerant charge | KG | 3.8 | 4.2 | 6 | 9.2 | 13.8 | 16.4 |
| Noise | dB(A) | 59 | 61 | 61 | 63 | 65 | 70 |
| Net dimension (mm) | LXWXH | 1240X1000X810 | 1150X1050X1043 | 1310X1050X1193 | 2210X1210X1210 | 2210X1800X1210 | 2148X2140X1123 |
| Packing dimension (mm) | LXWXH | 1270X1050X865 | 1250X1150X1143 | 1410X1150X1293 | 2310X1310X1310 | 2310X1900X1310 | 2248X2240X1223 |
| Net weight | KG | 205 | 280 | 340 | 520 | 800 | 950 |
| Gross weight | KG | 225 | 320 | 380 | 550 | 845 | 1030 |
| Loading Qty 20"/40"/40HQ | Unit | 16/36/54 | 16/36/36 | 6/14/28 | 4/9/18 | 2/6/12 | 2/5/10 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
