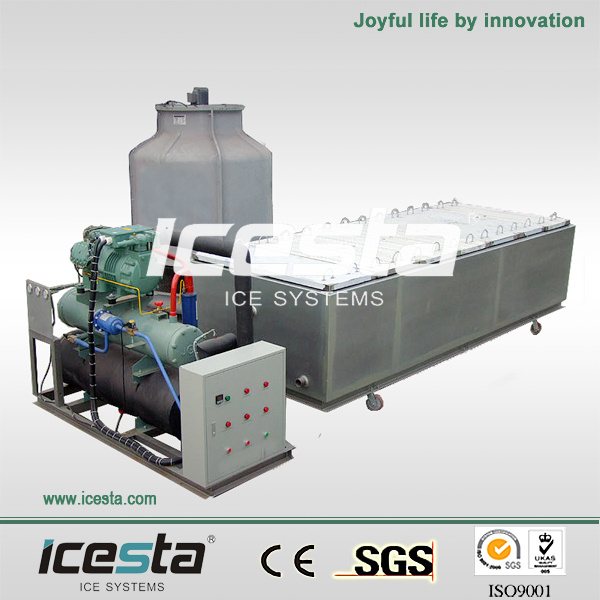

Icesta Commercial Block Ice Machine
ICESTA block ice making system is very convenient for customer to install, which consists of:
(1) Brine tank
(2) Evaporators
(3) Ice cans
(4) Ice can frame
(5) Crane
Travelling crane with crane way above the ice tank with harvesting device crane. Trolley Electrically operated with bush button used for four direction control.
(6) Thawing tank
(7) Braine circulation
Agitator with motor for brine circulation
(8) Ice table
(9) Ice can filling device
Semi automatic filling of ice cans in one frame at the same time. The filling device ensure that the ice cans are filled with the correct quantity of water which Correspons exactly to the block weight.
|
Model |
Capacity |
Refrigerant |
TOTAL power |
Dimension |
|
-- |
Ton/hrs |
-- |
kW |
Part name |
(L*W*H)mm |
|
IB3T-R2W |
3 |
R22/R404A |
14.8 |
Complete unit |
4000*2500*1200 |
|
IB5T-R2W |
5 |
R22/R404A |
21 |
Refrigeration Unit |
2000*800*1600 |
Evaporator
(Brine tank) |
4600*1400*1150 |
|
IB10T-R2W |
10 |
R22/R404A |
40.8 |
Refrigeration Unit |
1800*1000*1450 |
Evaporator
(Brine tank) |
4800*1000*2250 |
|
IB15T-R2W |
15 |
R22/R404A |
60 |
Refrigeration Unit |
2000*1200*1600 |
Evaporator
(Brine tank) |
4800*1000*2250 |
|
IB20T-R2W |
20 |
R22/R404A |
88 |
Refrigeration Unit |
3500*1300*2200 |
Evaporator
(Brine tank) |
12000*2200*1580 |
|
IB25T-R2W |
25 |
R22/R404A |
97.5 |
Refrigeration Unit |
3200*1800*2200 |
Evaporator
(Brine tank) |
4800*1000*2250 |
|
IB30T-R2W |
30 |
R22/R404A |
118 |
Refrigeration Unit |
3500*1500*2200 |
Evaporator
(Brine tank) |
\ 6760x4700x1560 |
