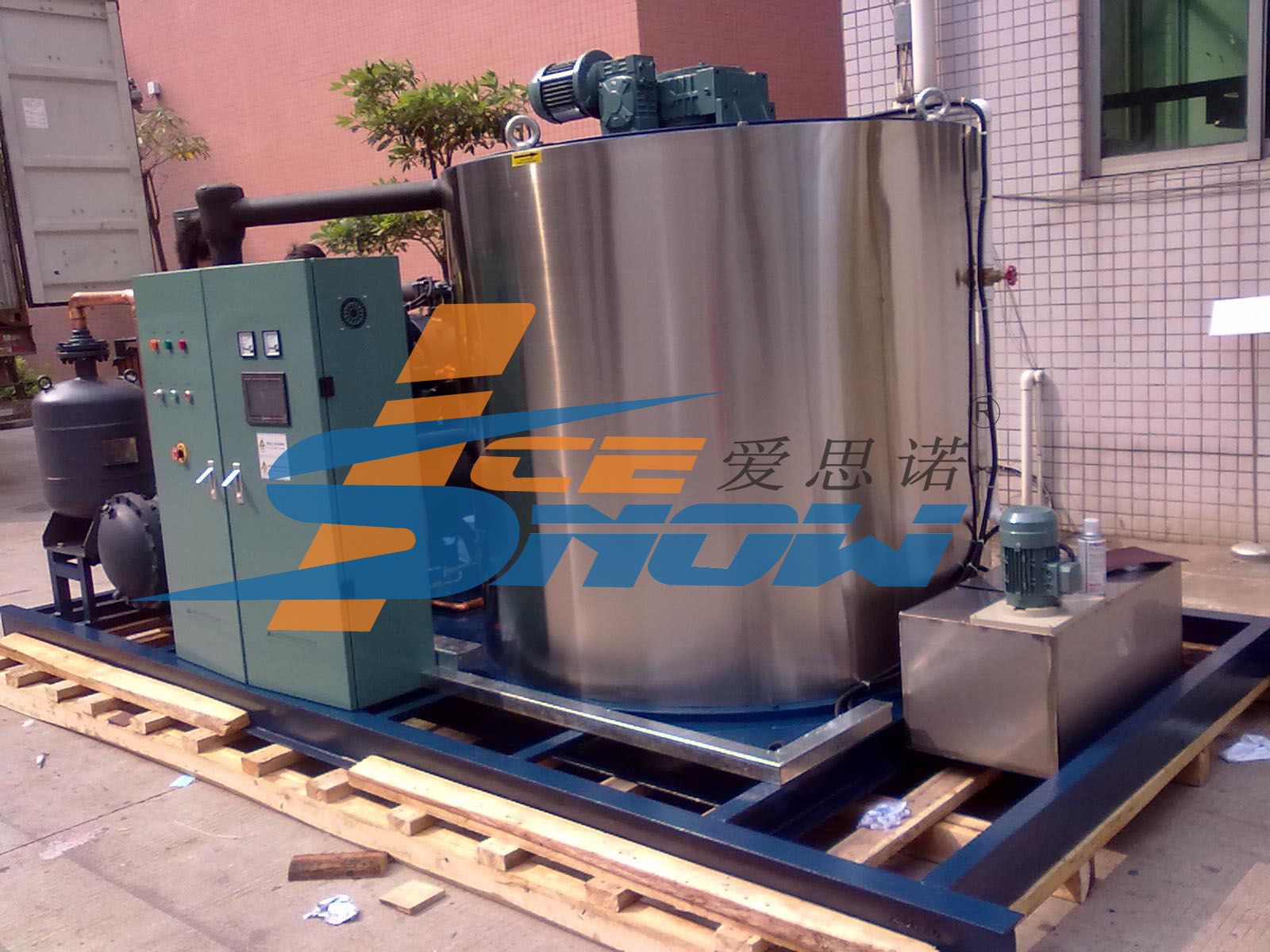

Ice Flake Machines (GM-200K)

Name: Ice Flake Machines (GM-200K)
Brand: ec-portal.com
SKU: 674606755
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 2500-50000/Set
Trade Terms:	Sea
Min Order:	1Set

Contact Supplier

Showroom Product Company Profile

Ice machines / China ice makers

Power supply: 3P/ 380V / 50Hz (optional)

Flake ice thickness: 1.8-2.5 mm

You can choose the different types to meet your requests.

1) Cooled type: Air-cooled, Water-cooled and evaporative

2) Refrigerant: R22/ R404A / R407C

Description & Advantage of our ice machine:

Always used in the industrial and commercial fields such as aquatic food & meat product processing, supermarket, hotel and food & beverage, slaughtering, dye chemical industry, marines, concrete construction project, medical facilities, etc.

They designed with advanced techniques to owned advantage as:

A. Low failure and long working life: The System always runs well more than 35000 hours

B. Perfect stability: In normal condition remains good output, and the special types run well in execrable conditions.

C. High efficiency & capacity

D. Superior safety and reliability: Dynamic micro-computer control system

E. Low energy consumption

F. CE marks: We control the factory manufacture process strictly follow the CE request, and all the machine left factory marked CE to give our customer sufficient safety.

Model	daily output	Bin capacity	Ref. capacity (kcal/h)	Evaporating Temperature	Total power	Power supply	Refrigeration	Cooling mode	Unit Dimension LWD(mm)	Bin size	weight (exclude bin)(kg)
Model	(kg/24h)	(kg)	Ref. capacity (kcal/h)	Evaporating Temperature	(kw)	Power supply	Refrigeration	Cooling mode	Unit Dimension LWD(mm)	LWD(mm)	weight (exclude bin)(kg)
GM-035K	350	200	1645	–20 degrees	2.5	3p/380/50Hz	R404A	air cooling	1050740780	1070980900	196
GM-04K	400	300	1880	–20 degrees	2.68	3p/380/50Hz	R404A	air cooling	1235740780	128010501060	205
GM-05k	500	300	2350	–20 degrees	2.7	3p/380/50Hz	R404A	air cooling	1235740780	128010501060	205
GM-06k	600	300	2820	–20 degrees	3	3p/380/50Hz	R404A	air cooling	1235740780	128010501060	215
GM-08k	800	300	3760	–20 degrees	3.5	3p/380/50Hz	R404A	air cooling	1235740862	128010501060	240
GM-10k	1000	400	4700	–20 degrees	4.5	3p/380/50Hz	R404A	air cooling	1290970912	133012501210	295
GM-12k	1200	400	5640	–20 degrees	5	3p/380/50Hz	R404A	air cooling	1290970982	133012501210	340
GM-15k	1500	400	7050	–20 degrees	8.3	3p/380/50Hz	R404A	air cooling	1290970982	133012501210	360
GM-20k	2000	500	9400	–20 degrees	9.7	3p/380/50Hz	R404A	air cooling	150010851208	152013201300	420
GM-25k	2500	500	11750	–20 degrees	10.2	3p/380/50Hz	R404A	air cooling	150010851208	152013201300	440
GM-30K	3000	1200	14100	–20 degrees	11.2	3p/380/50Hz	R404A	air cooling	180011351308	Subject to the actual needs of the customer	550
GM-40K	4000	2500	18800	–200 degrees	15.1	3p/380/50Hz	R404A	Water cold	165015551308		820
GM-50K	5000	3000	23500	–20 degrees	18	3p/380/50Hz	R404A	Water cold	165015551580		1050
GM-80K	8000	5000	37600	–20 degrees	30.5	3p/380/50Hz	R404A	Water cold	223018901470		1280
GM-100K	10000	6000	47000	–20 degrees	31	3p/380/50Hz	R404A	Water cold	223018901640		1360
GM-120K	12000	8000	56400	–20 degrees	42.1	3p/380/50Hz	R404A	Water cold	248020001780		1530
GM-150K	15000	8000	70500	–20 degrees	56	3p/380/50Hz	R22	Water cold	340020801880		2820
GM-200K	20000	12000	93500	–20 degrees	63	3p/380/50Hz	R22	Water cold	340020802300		3650
GM-250K	25000	15000	116875	–20 degrees	78.3	3p/380/50Hz	R22	Water cold	3400*2080/2600		3980
GM-300K	30000	15000	141000	–20 degrees	102.5	3p/380/50Hz	R22	Water cold	458027702400		5000
GM-400K	40000	20000	188000	–20 degrees	124.3	3p/380/50Hz	R22	Water cold	458027703000		5500
GM-500K	50000	25000	235000	–20 degrees	147.4	3p/380/50Hz	R22	Water cold	458027703500		6300

Prod Model:	GM-200K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality and Superior Perfomance
Material Of The Evaporator:	Stainless Steel or Carbon Steel
Cooling Type:	Air Cooling/Water Cold/Evaporative
Refrigerant:	R22/R134a/R404a
Power Supply:	3pH/380v/50Hz

Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is a high-tech enterprise and professional manufacturer of refrigeration equipment and system which specialized in researching, designing, producing and trading of industrial and commercial refrigeration technology and facilities of ice flake machine. The company owns the first-class equipment, advanced manufacturing workmanship and complete testing method as well as modern management mode. Now we have launched 3 series ice flake machines covering 16 types, with its daily output ranging from 400kgs to 50ton, which greatly satisfied the increasing demands on the commercial ice and industrial ice. Our products are widely used in hyper market freshing, food processing, ocean fishery, Chemicals and dyeing, bio-pharmacy and laboratories.

Icesnow ice system, with its main parts imported abroad, is elaborately designed and has a superior performance. For the whole system is automatically controlled by microcomputer, so it's extremely easy and simple for operation. And the bin cylinder is our patented product, which ranks a leading level and gains widely reputation in and abroad.

First-class products, continuous innovation, durative improvement and clients satisfaction is our tenet. Excellent quality product, complete service and reasonable price is our persistent principle to hold market. We believe our sincerity and seeking-better altitude deserves your trust.
