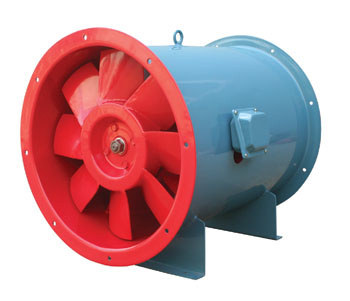

Htf Series Hi-Temperature Smoke Drafting Axial-Flow Fans
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Description:
HTF series hi-temperature smoke-drafting axial-flow fans have the advantages such as excellent hi-temperature resistance,high efficiency,little area-occupying,easy-installation etc,they are widely used and sold well in more than 20 provinces in China.
|
an Number |
Rotation Speed |
Volume Flow |
Total Pressure |
Power |
Noise |
Weight |
|
N o |
rpm |
m 3 /h |
Pa |
KW |
dB(A) |
Kg |
|
3.5 |
2900 |
3350-4225 |
420-280 |
0.75 |
78 |
77 |
|
4 |
2900 |
3800-5500 |
450-300 |
1.5 |
79 |
88 |
|
4.5 |
2900 |
6120-8500 |
670-410 |
2.2 |
84 |
99 |
|
5 |
2900 |
6820-9820 |
750-510 |
3 |
86 |
110 |
|
5.5 |
2900 |
10900-15200 |
621-398 |
4 |
86 |
115 |
|
6 |
2900 |
13200-16090 |
760-510 |
5.5 |
86 |
164 |
|
6.5 |
1450 |
15300-21500 |
680-425 |
5.5 |
88 |
170 |
|
7 |
1450 |
18910-24380 |
730-600 |
7.5 |
88 |
208 |
|
8 |
1450 |
26010-31420 |
720-600 |
7.5 |
89 |
216 |
|
9 |
1450 |
27610-33510 |
840-560 |
11 |
90 |
250 |
|
10 |
1450 |
35000-45700 |
770-630 |
11 |
90 |
300 |
|
11 |
1450 |
48500-51550 |
690-580 |
15 |
92 |
380 |
|
12 |
960 |
57750-62760 |
740-620 |
18.5 |
93 |
480 |
|
13 |
960 |
56030-74710 |
810-600 |
18.5 |
94 |
520 |
|
14 |
960 |
63312-85511 |
812-612 |
22 |
95 |
590 |
|
15 |
960 |
76040-101390 |
820-620 |
22 |
95 |
650 |
|
16 |
960 |
91210-120233 |
912-652 |
30 |
96 |
740 |
|
Fan Number |
Rotation Speed |
Volume Flow |
Total Pressure |
Power |
Noise |
Weight |
|
N o |
rpm |
m 3 /h |
Pa |
KW |
dB(A) |
Kg |
|
5 |
2900 |
6820-9820 |
750-510 |
3/2.5 |
86 |
110 |
|
1450 |
3410-4910 |
190-130 |
75 |
|
5.5 |
2900 |
10900-15200 |
621-398 |
4/3.3 |
86 |
115 |
|
1450 |
5450-7600 |
155-100 |
75 |
|
6 |
2900 |
13200-16090 |
760-510 |
5.5/4.5 |
86 |
164 |
|
1450 |
7150-8650 |
170-130 |
75 |
|
6.5 |
1450 |
15300-21500 |
680-425 |
5.5/4.5 |
88 |
170 |
|
960 |
10130-14235 |
298-187 |
80 |
|
7 |
1450 |
18910-24380 |
730-600 |
8/6.5 |
88 |
218 |
|
960 |
12520-16140 |
320-270 |
80 |
|
8 |
1450 |
26010-31420 |
720-600 |
8/6.5 |
89 |
226 |
|
960 |
17220-20800 |
320-260 |
80 |
|
9 |
1450 |
27610-33510 |
840-560 |
11/9 |
90 |
250 |
|
960 |
18220-22190 |
370-250 |
81 |
|
10 |
1450 |
35000-45700 |
770-630 |
11/9 |
90 |
305 |
|
960 |
24020-30260 |
340-280 |
81 |
|
11 |
1450 |
48500-51550 |
690-580 |
16/13 |
92 |
390 |
|
960 |
36380-38660 |
370-330 |
83 |
|
12 |
960 |
57750-62760 |
740-620 |
17/8 |
93 |
485 |
|
720 |
43310-47070 |
420-350 |
84 |
|
13 |
960 |
56030-74710 |
810-600 |
17/8 |
94 |
525 |
|
720 |
42020-56030 |
450-340 |
85 |
|
14 |
960 |
63312-85511 |
812-612 |
22/11 |
95 |
615 |
|
720 |
47484-64133 |
458-344 |
85 |
|
15 |
960 |
76040-101390 |
820-620 |
22/11 |
95 |
655 |
|
720 |
57230-76040 |
460-350 |
85 |
|
16 |
960 |
91210-120233 |
912-652 |
30/15 |
96 |
780 |
| Prod Model: |
HTF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5-16 |
| Voltage: |
110V/230V/380-450V |
| Certification: |
CE |
| Electric Current Type: |
AC |
| Mounting: |
Duct Fan |
| Blade Material: |
Cast Iron |
