| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
5 Years |
| Capacity: |
100L-500L |
| Inner Tank: |
Sus304-2b Imported Food-Grade Stainless Steel |
| Collector: |
Vacuum Tube |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE |

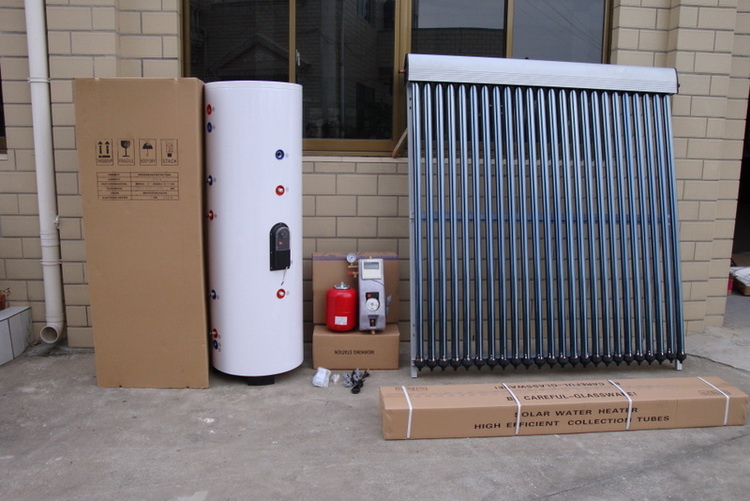

Product Description
1. Vacuum tubes:
* Hail proof: Hail resistance 20-30mm
* Guarantee on vacuum tubes: 3 years
* Vacuum tube size: ø 58X1800mm, ø 47X1500mm
* Thickness: 2.5-3mm
* Coating layers: Structure: A1-N/A1 or CU/SS-ALN(H)/SS- ALN(L)/ALN
* Grade: Normal/Three target
* Heat preservation: 72 hours
* Seal: Silicone rubber polymer
* Absorption rate: ≥ 0.95± 0.02
* Emission rate: ≤ 0.20± 0.02
* Vacuum tightness: P≤ 5.0*0.0001PA
* Idle sunning property paramerers: Y=220-260. /KW
* Avetage heat loss coefficient: Ult=0.6-0.7W(. )
* It means the temperature in the water tank is rang from 50 to 100 degree.
2. Tank:
* Inner tank, thickness: 0.40mm, material: Sus304-2B stainless steel/Color coated sheet/Mirror sheet/Galvanized sheet.
* Outer tank thickness: 0.40mm, color coated sheet
* Insulation layer: 55-65mm as you want. Computerized pressurizing and foaming of polyurethane.
3. Frame:
* Material: Galvanized sheet and electrostatic plastic-sprayed.
* Thickness: 1.2mm
* Paint wind resistant: ≤ 30m/s
* Guarantee on system: 5 years
* If you want to know more details, please send us mail, we will be glad to help, thanks!
|
Tank |
material of inner tank |
SUS 304-2B food-grade stainless steel, Φ 450mm |
|
material of outer tank |
color-coated galvanized steel, Φ 550mm |
|
thickness of inner tank |
1.5mm |
|
thickness of outer tank |
0.6mm |
|
upper coil |
Φ 12*1.0*12(optional) |
|
lower coil |
Φ 12*1.0*15 |
|
electrical heater power |
1.5kw |
|
Insulation layer |
50mm, polyurethane foaming |
|
liter |
200L |
|
Heat Collector |
Vacuum Tubeor Heat Pipe |
high-borosilicate glass, cooper heat pipe(Φ 8/14mm) |
|
size of vacuum tubes |
Φ 58x1800mmx20pcs |
|
Absorbsion Area |
1.6 m² |
|
Work Station |
Fasteners |
Stainless steel screws. |
|
Sealing ring |
Macromolecule silicone rubber. |
|
others |
P/T valve, electrical heater, magnesium rods, relief valve |
|
Specification |
Heat preservation |
72 hours |
|
Hail resistance |
20-30mm |
|
Max Water Temperature |
Can reach at least 95 degree |
|
Circulation |
Indirect /Closed loop (Active) |
|
Heating System |
Thermosyphon (Passive) |
|
Connection Type |
Direct-plug |
|
Absorption Rate |
≥ 0.95± 0.02 |
|
Emission Rate |
≤ 0.20± 0.02 |
|
Vacuum Tightness |
P≤ 5.0*0.0001Pa |
|
Idle sunny property parameres |
Y=220-260. /KW |
|
Total Weight |
161KGS |
|
Certifications |
Solar Keymark, SRCC, SGS, CE, ISO9001 |
|
Warranty |
5 years |
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
