Hot Selling Air Cooled Packaged Central Commercial Air Conditioner
| Price: |
US $ 1000-12000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ESSA-4.5SC~ESSA-40QC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor Brand: |
Danfoss/Copeland |
| Outdoor Unit Noise Level: |
Lower |
| Certification: |
CCC |
| Type: |
Cabinet Air Conditioner |
| Mounting: |
Floor Standing |
| Condition: |
New |
| Operating Voltage: |
380~440V-3pH-50Hz/60Hz |
| Application Fields: |
Facttory/School/Restaurant |
Product Description
Hot Selling Air Cooled Packaged Central Commercial Air Conditioner

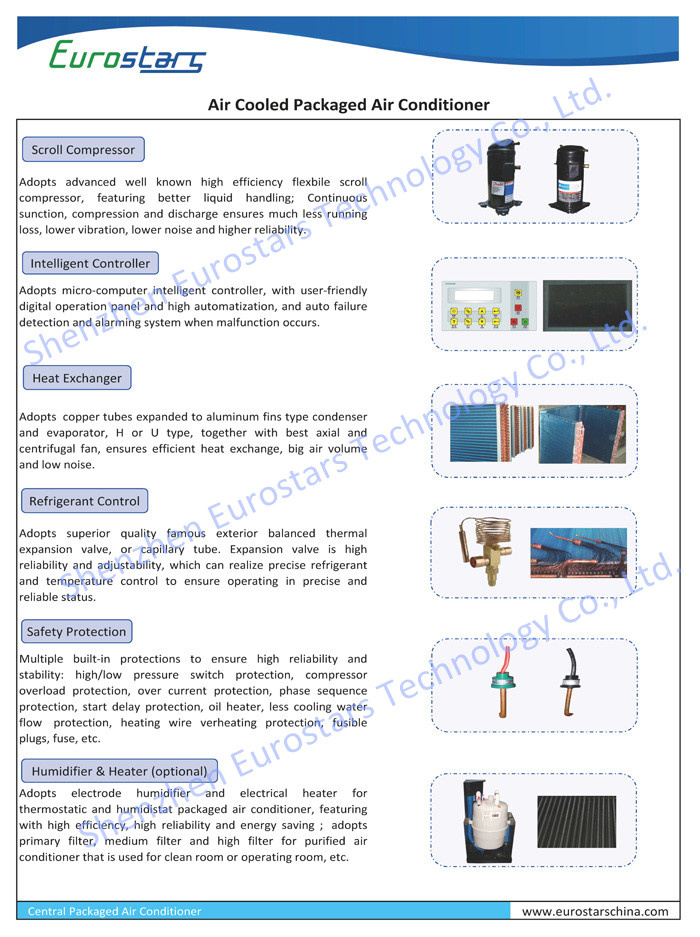

1. Air cooled packaged air conditioner main features:
(1) Advanced high efficiency flexible scroll compressor; (2)Micro-computer intelligent controller; (3) Multiple safety protections; (4) Superior quality or capillary tube.
2. Nomenclature-Air cooled central packaged air conditioner
ES S A 25 PU T C H
1 2 3 4 5 6 7 8
1: ES Eurostars
2 :S Compressor type: S-Scroll G-Screw P-Hermetic piston B-Semi-hermetic piston R-Rotary
3 :A Product series No.: A-Air cooled commercial series
4 :25 Cooling capacity:USRT
5 :PU Product type: PT:Purified thermostatic and humidistat PU: Purified
HT: Thermostatic and humidistat
6 :T Compressor quantity: S-Single D-Double T-Triple Q-Quadruple F-Fivefold
7: C Frame type: C-Cabinet type O-Open type
8 :H Function: H-Heat pump E-Electrical heating
Cooling or Heating only- when not to mention any letter
3. Air cooled packaged air conditioner installation illustration:
4.Air cooled Packaged air conditioner techinal specification
Please ask salesman for detailed complete data or visit our website:
www.eurostarschina.com| Air Cooled (Heat Pump)Packaged Air Conditioner |
| Model ESSA~ | 4.5SC | 6.5DC | 8.5DC | 12.5TC | 18DC | 20DC | 25TC | 30TC | 40QC |
| 4.5SCH | 6.5DCH | 8.5DCH | 12.5TCH | 18DCH | 20DCH | 25TCH | 30TCH | 40QCH |
Technical
Parameters | Cooling Capacity | KW | 15.0 | 23.6 | 29.9 | 44.9 | 60.0 | 67.0 | 90.0 | 103.5 | 138.0 |
| USRT | 4.3 | 6.7 | 8.5 | 12.8 | 17.1 | 19.1 | 25.7 | 29.6 | 39.4 |
| Heating capacity | KW | 15.9 | 25.0 | 31.7 | 47.6 | 63.6 | 71.0 | 95.4 | 109.7 | 146.3 |
| Rated Air Flow | CMH | 2500 | 4000 | 5100 | 7800 | 10200 | 12600 | 15300 | 20400 | 25500 |
| External Static Pressure | Pa | 100 | 150 | 150 | 150 | 200 | 250 | 300 | 350 | 400 |
| Power Supply |
| 380V-3PH-50Hz |
| Cooling Input Power | KW | 5.1 | 8.0 | 10.4 | 15.4 | 20.6 | 23.5 | 31.6 | 36.3 | 48.5 |
| Cooling Current | A | 11.2 | 16.8 | 22.0 | 32.6 | 38.9 | 43.9 | 59.7 | 67.3 | 89.6 |
| Heating Input Power | KW | 5.0 | 7.8 | 10.2 | 15.1 | 20.0 | 23.1 | 30.7 | 35.6 | 47.6 |
| Heating Current | A | 11.1 | 16.6 | 21.8 | 32.3 | 37.4 | 43.5 | 57.4 | 66.7 | 88.8 |
| Cooling Max. Input Power | KW | 7.2 | 11.3 | 14.7 | 21.9 | 28.7 | 32.7 | 43.8 | 50.0 | 66.8 |
| Cooling Max. Current | A | 15.2 | 22.9 | 30.0 | 44.6 | 53.5 | 60.1 | 81.6 | 91.6 | 122.0 |
| Noise | dB(A) | ≤60 | ≤64 | ≤66 | ≤68 | ≤70 | ≤72 | ≤73 | ≤76 | ≤77 |
| Connecting Pipe | Liquid | Ø12.7 | Ø12.7/Ø9.52 | Ø12.7 | Ø12.7 | Ø16 | Ø16 | Ø16 | Ø16 | Ø16 |
| Connecting Pipe | Air | Ø19 | Ø19/Ø16 | Ø19 | Ø19 | Ø25 | Ø28 | Ø25 | Ø28 | Ø28 |
| Indoor Unit | Evaporator | Ripple Aluminum Fins around Copper Pipe |
| Centrifugal Fan | Type | Outer Rotor | The Belt Transmission Centrifugal |
| Qty | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Power (KW) | 0.45 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Air Filter |
| Nylon Netting |
| Dimension | W (mm) | 800 | 960 | 1200 | 1700 | 1700 | 1700 | 1880 | 2050 | 2450 |
| D (mm) | 550 | 520 | 600 | 600 | 750 | 750 | 1010 | 1150 | 1300 |
| H (mm) | 1770 | 1730 | 1730 | 1780 | 1810 | 1810 | 1810 | 1930 | 1990 |
| N.W. | kg | 120 | 180 | 240 | 300 | 450 | 460 | 540 | 800 | 1100 |
| Outdoor Unit | Model | ES-5U | ES-5U+ES-3U | ES-5U*2 | ES-5U*3 | ES-10U*2 | ES-12.5U*2 | ES-10U*3 | ES-12.5U*3 | ES-12.5U*4 |
| Compressor | Type | Hermetic Scroll Type |
Power(HP)*Qty | 5*1 | 5+3 | 5*2 | 5*3 | 10*2 | 12.5*2 | 10*3 | 12.5*3 | 12.5*4 |
| Air Flow | CMH | 6200 | 6200+3100 | 6200*2 | 6200*3 | 15000*2 | 15000*2 | 15000*3 | 15000*3 | 15000*4 |
| Dimension | W (mm) | 960 | 960+850 | 960*2 | 960*3 | 1000*2 | 1000*2 | 1000*3 | 1000*3 | 1000*4 |
| D (mm) | 350 | 350+300 | 350*2 | 350*3 | 885*2 | 885*2 | 885*3 | 885*3 | 885*4 |
| H (mm) | 1260 | 1260+600 | 1260*2 | 1260*3 | 930*2 | 1088*2 | 930*3 | 1088*3 | 1088*4 |
| N.W. | kg | 120 | 120+80 | 120*2 | 120*3 | 210*2 | 230*2 | 210*3 | 230*3 | 230*4 |
| Safety Protection | High/low pressure switch protection, Compressor overload Protection over current protection, Phase sequence protection, Start delay protection, Oil heater, Fuse, etc. |
Note:
(1). Rated Cooling Capacity based on:Indoor side inlet Air Temperature 27ºC/19.5ºC, Ambient Temperature:35ºC;
(2). Rated Heating Capacity based on:Indoor Side Inlet Air Temperature 20ºC, Ambient Temperature:7ºC/6ºC;
5.Eurostars air cooled packaged air conditioner Quotation Remarks
(1).Packing: Standard export package
(2).Delivery Day: 25 days after deposit is confirmed
(3).Delivery term: CIF,FOB or CNF EX-Work are welcomed
(4).Payment term: 30% deposit by TT, the balance will be paid by TT before delivery;
or 100% Irrevocable non-transferred LC at sight
(5).Warranty: 12~18 months after Bill of Lading date. Any unartificial failure occurred within the
period, we'll supply you the spare parts for free, and permanent technical support & consultation all
life long for the machines.
(6).Validity: 20 days
(7).Payment currency: USD
We, Eurostars Group, is a modern hi-tech enterprise, specializing in air conditioning research, development, production, sales and engineering services.
The current product lines range from central air conditioning refrigeration system for commercial and industrial use to dehumidification system, including centrifugal series, scroll series and air terminal series. We manufacture products such as water/air cooled screw chiller unit, modular chiller unit, water/ground/air source heat pump unit, low temperature ambient chiller, industrial chiller, glycol chiller, condensing unit, rooftop air conditioning unit, water/air cooled heat pump packaged air conditioner, constant temperature and humidity unit, air handling unit, and fan coil unit. We strive to become the best air conditioner manufacturer that offer wide range of products and competitive price for meeting the customers' real demand.
Perfect quality depends on the professional technical support team and standardized operation flow. Eurostars owns advanced production and testing equipments, including assembly production lines for large and small units respectively, heat exchanger pipeline, large spraying pipeline, CNC processing center, CNC punching and bending machine, pipe expanding machine, automatic welder, large mational-level testing center for water cooled and air cooled chiller, national-level testing center for household cold water (heat pump) unit, etc., thus ensuring product quality and services.
