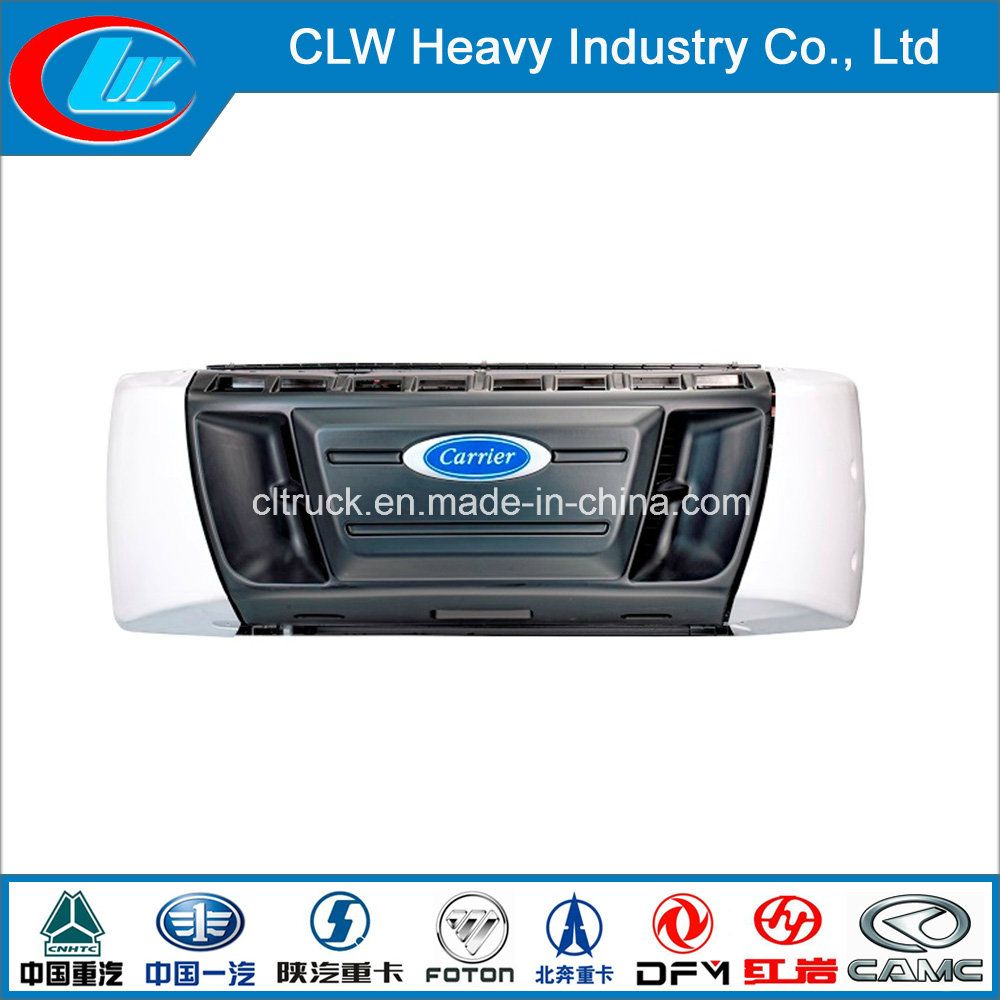

HOT sale refrigerator unit refrigeration equipment
Product Description
Truck refrigeration unit SF-U320
1)high efficiency
2)low voice
3)Compressor Model SD5H14,
4)keep your goods fresh,
Trcuk refrigeration unit SF-U320
Main specification
1.Applicable Temperature: 15~-20
2.Cooling Capacity
(0°C):2000Kcal/2326W/7936BTU
(-18°C):1280Kcal/1489W/5808BTU
3.Compressor:
1) Model SD5H14 Made in Singapore
2)Displacement:138
4.Condenser:
1)Type:P.E
2)Fan Type:Axial fan(2fans*1000m3/h)
3) Voltage:DC12V/DC24V
5.Evaporator:
1)Type:inner screw tube and aluminum fin
2)Fan type:Axial fan
3)Number of fan 2fan*1000m3/h
4)Voltage:DC12V/DC24V
6.Power consuption:Between 33A(DC12V)and 16.5A(DC24V)
7.Refrigerant:R-134a or R404a
8.Defrost Type:Automatically hot air defrost
9.Structure:Spilt direct drive unit
10.Dimensions(mm) & weight of Evaporator:1000*580*170mm(39"*23"*6.7") /25.44kgs
11.Dimensions(mm) of weight of Condenser :1080*430*350mm (43"*17"*15")/30kgs
Applicable temperature (ºC) | 20ºC~+25ºC |
| Applicable volume(m3) | 27~37(-20ºC) |
| Cooling capacity | Environmental
temperature | 0ºC | 3300W |
| -18ºC | 3700W |
| Voltage (V) | 12V/24V |
| Current (A) | 37A/62A |
| compressor | Displacement (cc/r) | UPF170/TM16 (172cc/r) |
| condenser | Air flow (m3/h) | - |
| Fan type | - |
| number | - |
| evaporator | Air flow (m3/h) | - |
| Fan type | - |
| number | - |
| refrigerant | R404A 3.6~3.9Kg |
| Refrigerant charge amount(Kg) |
|
| Defrost type | - |
| Dimensions(mm) | evaporator | 1700×644×230 |
| Condensing utensil | 1265×555×415 |
| Weight(KG) | evaporator |
|
| Condensing utensil |
|
| Remark | Optional to install for 380v store electric power |
