| Main Hardware Indicators |
| Transparent Displays | Panel size | 10.4 | 21.5 | 32 | 42 | 47 | 55 | 65 | 84 |
| Display size(mm) | 211*158 | 476*268 | 698*392 | 927*522 | 1039*584 | 1209*680 | 1428*803 | 1860*1046 |
| Rresolutio Ratio | 1024*768 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
Light Transmittance
| 90% |
| Viewing Angle | 70/70/75/75 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 88/88/88/88 | 89/89/89/89 |
| U/D/L/R |
| Display Ration | 16:09 |
Surface Treatment
| Hard coating (3 H) and antidinic plariser
|
| The whole machine size | It can be customized according to customer's requirements
|
| CPU | All winner A20 , dual core 1.2GHz
|
| Memory | 1G DDR3 |
| Built-in memory | NAND FLASH 4 g (extensible)
|
| Decoding resolution | Support up ot1080 p |
| Operating system | Support Android 4.2 or above
|
| Play mode | Support loop, timing, inter-cut etc. many kinds of playing mode
|
| Network support | Ethernet, support WiFi, wireless peripherals expansion
|
| Video playing | Supports wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 etc
|
| Image format | Supports BMP, JPEG, PNG, GIF
|
| I/O interface | USB 2.0 interface: two USB HOST |
Ethernet: a RJ45 interface, adaptive 10 m / 100 m Ethernet
|
HDMI output
| 1pc, support 1080P output (built-in)
|
Audio and video output
| Built-in double 4 r / 6 w power amplifier
|
RTC real-time clock
| support |
Timing switch
| support |
System upgrade
| Support USB upgrade, network upgrade
|
| Touch screen | Inductive way: built-in infrared induction multi-touch technology |
| Touch mode: opaque objects such as finger and pen . |
| Interpolation resolution: 32768 * 32768 |
| Communication interface: USB |
| Clicks in theory: unlimited times |
| Response speed: < 20 ms |
Product Features:

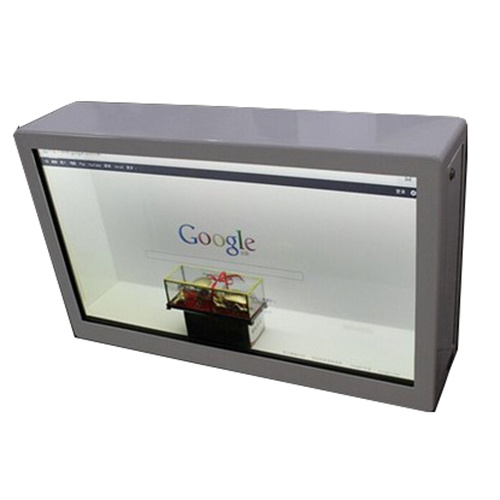

(1) High light transmittance LCD:

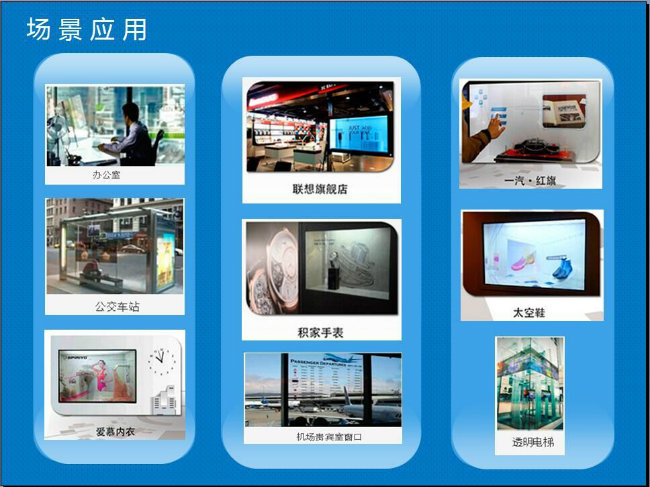

high light transmittance transparent screen, see the object inside through broadcast images, the dynamic advertising information combined with static objects such as terminal product and shopwindow,to strengthen the brand experience and shopping experience.
(2) Infinite perspective:
transparent panel adopts advanced technology,unique liquid crystal molecules planar
switching method, the full range of visual angle can reach 80 degrees; Display technology application is colorless, color gamut rising sharply , picture is more exquisite and lively,
no matter any angle you can enjoy a rich color image as vivid as life.
(3) Perfect advertising playing functions:
support MPEG1, MPEG2, MPEG4, MP3, AVI, JPEG etc. multimedia formats , automatic circulation broadcast advertising program; Support 720P HD broadcast and scrolling
marquee, timeing switch , etc.
(4) Humanization and intelligent switch Settings:
timing switch according to the customers' different requirments, which is match with the humanized management in senior hotels, hospitals and communities.
| Main Software Indicators |
| Profile |
Web-based advanced B/S architecture, support big users, concurrency and hierarchical management, connect thousands, tens of thousands of terminal at the same time.
|
Design and production
| WYSIWYG visualization program editing, free segmentation and combination of screen region. Prepared a variety of wonderful Template, make it easy for users to make high-quality programmes and programs can be directly imported PPT, Word, Excel and other format file, save production time and energy. Systems support native web pages without distortion, advanced system architecture, the generated program file is small, save the transmission bandwidth. |
Release management
| System supports multi-level auditing mechanism,only the secondary or tertiary administrators submit the content has been made,edited or modified to a higher level administrators to audit,the program can be released. Programs are posted to the specified playing ends or playing ends group at the specified time. For example,10 PM - 6AM released to the Shanghai group, make use of idle resources to reduce the network usage. Program broadcastcan mode and schedule can be set , validity of program as well , support breakpoint continuingly and background download mode, more reliable transmission . |
Management control
| Terminal playing: you can set the boot automatically play the default playing list. It plays according to the default playing list without receiving a new playing schdule. Real time slots. System support an emergency intercut and rolling subtitles, etc. |
| Terminal management: The system can remote time of the play ends ,automatic time switch ,remote volumne control and manage the HD space of the playing ends .The playing ends software has a quick control menu incluing volmne control, sound off, play stop,reset etc. |
| Display effect | Supports full HD Realistic effect display(1920x1080p), support 1024 x768 as well. |
1280 x768 resolution, a variety of dynamic gorgeous effect, attract visitors attention, support vertical screen
|
| User permissions | Account management: managing user accounts, permissions and password etc, record related tasks and activities. |
| Grouping management: classify the network users by grade ,areas ,function and authorization management. |
| Authority management: the system provide many levels of authority management, satisfy the need of classification management process control of large enterprise . For example, system administrators, publishing administrators, program audit administrators, etc. |
Programs approval
| Approval process can be set after the programming , only the audit programs can be released, broadcast system can be set multi-level auditing mechanism. System administrators can set the programs which is edited or modified by the secondary or tertiary administrators to district-level managers or designated account audit, can not be released directly. In addition to auditing the program, reviewers also can adjust the broadcast time, broadcast mode and broadcast network, etc. |
Monitoring management
| System of the whole network and the Make real-time monitoring with all the internet and hardware, software in each boardcast sites,including network connection status, IP information, play ends state, the current program, the current spot news, information, play ends updating information, etc. Alarm when abnormal situation,administrators can analysis the screen remote and real-time captured from play ends , ensure accurate and safe. |
Analysis of the statistics
| Provide professional statistics report for the large enterprise institutions, such as broadcast time report, broadcast frequency report ,daily monitor reports, failure rate report, etc. System records in various important events,including broadcast schedules,brooacast records, errors in broadcast and exceptions logs, etc. |
Trade Terms:1. Payment: 30% before production ,full payment before shipping by TT or Paypal.
2. Delivery Time:2-5 days for sample, mass production depends on the QTY.
3. MOQ: 500PC.
4. Customers can freely choose the shipping way, TNT, DHL, FedEx, by air or by sea etc.
We have professional freight forwarders, on the transportation we will not earn customers
one penny of profit. Of course customers also could use your own freight forwarders, we
will to fully cooperate with you.
5. Shipping port: Shenzhen PortOur service:1.Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service will surely be offered by the well-trained and experienced staffs
3. Protection of your sales area, ideas of design and all your private information.
Creative Galaxy Greative (Shenzhen) Co., Ltd, a wholly foreign-owned enterprise was founded in 2002, with the registered capital of 5.08 million. Our company is an integrated high-tech enterprise which engaged in intelligent display and intelligent lighting. After years of development, we have been successfully developed and produced various intelligent display products and intelligent lights. Intelligent display products include single and online version LED screen displaya, multi-screen display, transparent display cabinets, touch query machine, indoor and outdoor LED message display; Intelligent lights include LED tube light, LED spot light, LED ceiling light, LED bulb, track light and other accessories such as power supply, support, sensors.
