Shenzhen Ckingway Technology Co., Ltd. >> Hot 8.4 Inch Touch Screen Display with LCD Touch Panel

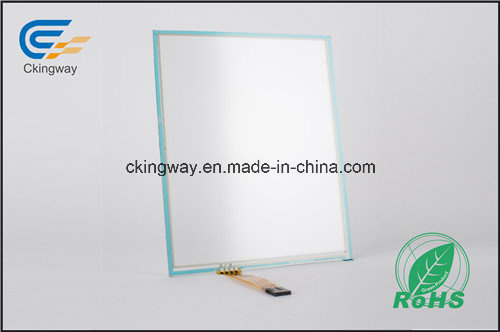

Hot 8.4 Inch Touch Screen Display with LCD Touch Panel

Hot 8.4 Inch Touch Screen Display with LCD Touch Panel
Price: US $ 6.35-6.75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: T/T,Western Union
Prod Model: SZTP1200-8.4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 8.4" Inch
Structure: Film + Glass
Connector: Pin 4 Plug Connector
Thickness: 1.4 ± 0.15 mm
Touch Media: Finger, Touch Pen,Glove
Type: Projection Restistive Touch Screen
Ratio: 4:3
Resolution: 4096*4096
Aspect Ratio: 4:3
Application: Security Monitoring System
Screen Type: Resistive
Resistive Touch Screen Type: Analog
Customized: Customized
Screen Size: 8.4&Quot; Inch

Product Description


Product Description
The Feature of  HOT 8.4 Inch Touch Screen Display with LCD Touch Panel  as below:
1.Operates with any medium (finger, pencil, gloves, etc.)
2. Consistently accurate , accurate response
 3.Relatively resistant against dirt and spray water
 4.Very thin frame
5. Exact registration and precision due to high touch resolution
6. Light and compact design
7. Lowest priced technology that is most frequently used
8. Available custom Service


4 wire restistive touch screen technology:
Ckingway 4-Wire Resistive products are perfect for industry machine GPS System or portable products where compact size and low power draw is a priority - such as PDAs, GPSs, smart phones and other hand-held applications. Our pressure sensing 4-wire resistive touch screens are cost effective and allow for input versatility with bare or gloved fingers and any pointing device.
Backed by a one-year warranty and 5 million touches in a single location, Touch International's 4-Wire resistive touch screens allow for ease of integration and use.
Size8.4" inch
StructureFilm +  Glass
ConnectorPin 4 plug connector
Thickness1.4 ± 0.15 mm
Touch MediaFinger, Touch Pen, Glove
Type4 Wire Restistive Touch screen
Ratio4:3
Resolution4096*4096
Response Time≤ 10 ms
Supply Voltage5V DC; 35 mA
Transparent≤ 78%
Screen ResistanceX:100-500Ω  Y:200-1000Ω
Insulation Resistance≥20MΩ(10V DC)
Pressure30-150g
Surface Hardness3H
Life Span> 1,000,000 time knocking ;
≥ 100,000 time in paddling
Operating Temperature- 10ºC ~  +60ºC
Storage Temperature- 20ºC ~ +70ºC
Storage Humidity20 ~ 85% RH (except  congeal fog)
Custom ServiceAvailable

HOT 8.4 Inch Touch Screen Display with LCD Touch Panel for Packing:
Anti-Static Foam+Paper Card+Ragged Bag+Carton


HOT 8.4 Inch Touch Screen Display with LCD Touch Panel for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiated


Certification


Company information:
      Ckingway Technology Co.,Ltd. Established in 2009, We focus Researching & Developing, Design, Manufacture and sales integrated into one target on Resistive Touch panel, Capacitive Touch Panel and LCD/LCM (Liquid Crystal Display Module). Coming along with Electronics consumer products increasing rapidly recently, Our product has been holding steady marketing share in Touch display field under our teamwork strongly, while industry chain getting more ruggedized , professionalized.
      Ckingway's Product range of application widely, is applied to Automobile electronic, Medical Equipment, Industrial Control, Security monitor and Digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, All products met RoHS testing request completely and have RoHS certification.
      Ckingway holds Business ideology report that: Quality and service will not stopping to develop to be excellent., Creat value for customers. We implement management policy with institutional and hommization combination, For" Connecting People, as career into integrity, Profits shared each other, Progressing by together" talent development strategy. R&D team with Efficient and unite we had, can be make a response to market rapidly.


About Warranty: 1 Year without damaged by people actions.

FAQ

 Q:Sample Policy
A:Free sample,freight cost paid by customer.

Q: Sample leading time ?
A:3-5 days if you need to print your logo.
    1-2days for our exsiting samples for reference.

Q :Production time ?
 A:10-15 days after sample confirmed.


 Q:shipping?
 A:Usually we deliver our goods by DHL,UPS, FedEx for the small orders, for large quantity you can  choose by sea or by air.

Q:Place an order as OEM to produce under our own brand?
A:Yes, our company accepts OEM and ODMONLY for the following types:
     Resistive Touch Panel (3.5 inch to 24 inches)
    The sizes of the Touch Panel can be adjusted according to the customers' requirements


Ckingway introduction

Ckingway technology Co., Ltd. Established in 2009, we focus researching & developing, design, manufacture and sales integrated into one target on resistive touch panel, capacitive touch panel and LCD/LCM (liquid crystal display module). Coming along with electronics consumer products increasing rapidly recently, our product has been holding steady marketing share in touch display field under our teamwork strongly, while industry chain getting more ruggedized, professionalized.

Ckingway's product range of application widely, is applied to automobile electronic, medical equipment, industrial control, security monitor and digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, all products met RoHS testing request completely and have RoHS certification.

Ckingway holds business ideology report that: Quality and service will not stopping to develop to be excellent., creat value for customers. We implement management policy with institutional and hommization combination, for" connecting people, as career into integrity, profits shared each other, progressing by together" talent development strategy. R&D team with efficient and unite we had, can be make a response to market rapidly.
