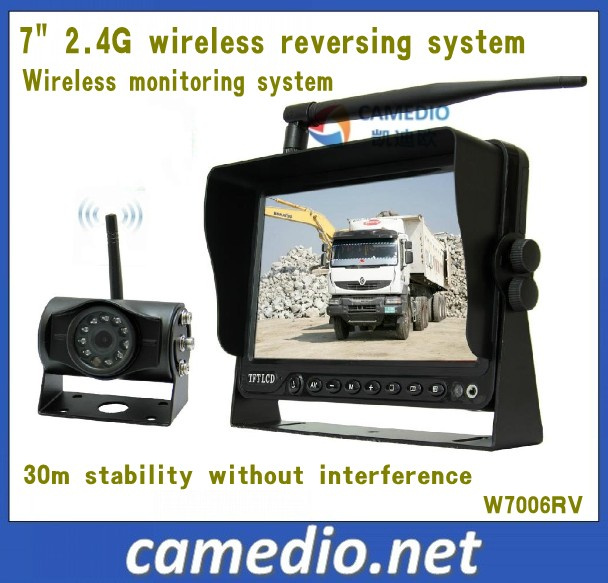

7inch long distance monitor system
1) available distance: 150~300m
2) available monitor size: 7&9inch
3) available cam: 4p
4) Stable signal
5) Waterproof camera
7Inch Long Distance Monitor System
1) 7Inch Wireless Receiver Monitor Screen size: 7"digital screen (16: 9 and 4: 3)
Effective distance: 30m (the available distance is 150m)
Backlight: 450cd/m2
Backlight type: LED Innolux (long life time, immediately bright)
Resolution: 800* 480 RGB
Video system: PAL/NTSC/AUTO
View angle: L/R/U/D 70° /70° /50° /70°
OSD MENU function: Mirror/Normal image, Multi-language, Guide lines
AV inputs: One way video input, 1~3wireless cameras can be added
Power supply: DC12V~36V
Operating temperature: -20° C~+70° C
Feature With sunshade, with reverse polarity protection, Dimmer function Light sensor auto Operation mode: Keystroke(with LED blue light), remote Dimension: 176(wide)*123(height)*27(depht) mm
2) Digital Wireless Camera: 1/3 Sony CCD chip, 18LED IR lights
Available distance: >150m, <200m when no obstacle
Resolution: 480TVL
System: PAL Pixel: 628(H)*582(V)
Angle View: Horizontal 120degree, vetical 90degree
5DB antenna
Shockproof/Waterproof degree: 6.8G/IP66
Power supply: DC12V~32V
Video delay: 150/ms
Audio input optional
Demension: 90*60.5*56.5mm
2) Wireless Camera
1/3 Sony CCD Car Camera
Power Supply: DC12V~32V
2.4Ghz wireless transmitter
3DB antenna
