| Prod Model: |
CPC001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
6.2inch |
| Combination: |
HDMI |
| Placement: |
Dashboard |
| Certification: |
ISO |
| Voltage: |
12/24V |
| Audio Output: |
L/R Channel |
| Video Output: |
S-Video Output |
| Screen Size: |
6.2inch |
Product Description

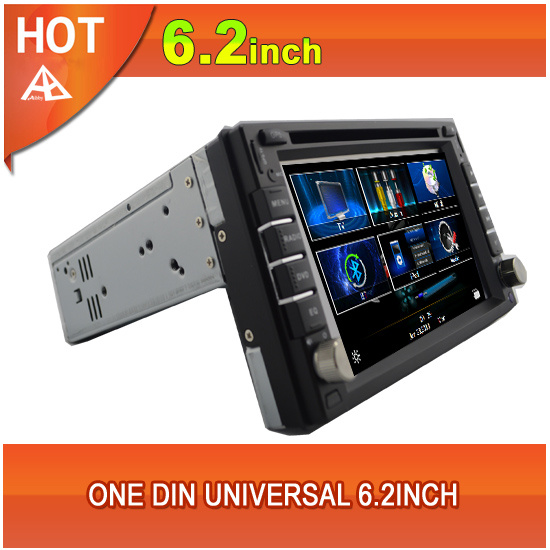

Hot 6.2inch One DIN Universal Car DVD GPS Navigation Multimedia Player
1. Car Make: Universal Car DVD
2. Screen Size: 6.2 Inch
3. Placement: Dashboard
4. System: Android or WinCE system
5. High temperature loader
6. HD Resolution Capacitive Touch Panel
WinCE System Specification:
1. Hannstar HD Original Digital touch screen, high temperature loader;
2. Large touch WVGA 800*480 pixels resolution,
3.Support 3G internet,
4.Rear view camera, automatic switch to reverse,
5. Dual zone function: Support Powerful Dualzone entertainment,
6. Support DVR / Front camera,
7.DSP processing,
8.6-CD virtual copy function,
9.Support TOMTOM, IGO8, and Route66 etc. Map,
10.Digital TV, CMMB, DVB-T, ISDB-T, ATSC (optional),
11. Electronic and mechanical anti-shock system,
12. While Navi working and voice guiding.
| System |
|
MCU | STM8 |
| CPU | Cortex-A7(MSTART2531) |
| Memory/RAM | 256MB DDR3 samsung |
| Flash | 128M (samsung 128MB SLC) |
| Power Amplifier IC | ST TDA7388 |
| Processor frequency | 800 MHZ |
| OSD Language | Chinese, English, French, German, Russian, Portuguese, Arabic, Thai language, Spanish, Italian |
| Display |
|
Display Mode | 16:9 |
| Touch Screen | yes |
| Screen brand | Hannstar |
| Screen Resolution | 800*480 |
| Display Type | LCD-TFT |
| Display Brightness | 350-400 cd/m2 |
| TFT drive | Cortex-A7(MSTART2531) |
| Radio |
|
FM/AM tuner | Silicon Labs (SI4754) |
| Station preset qty | AM:12 FM: 18 (optional) |
| Support RDS | Yes |
| Noise Sensitivity | FM 8DBU+-3DBU(+30db) |
| Radio response bandwidth | AM:522-1720KH FM:87.5-108MH (optional) |
| DVD |
|
Video Output System | CVBS format |
| Media type | VIDEO:DVD,VCD,AVI,VID,DIVX,ASF,MP4,M4A,MPG,MPEG,DAT,VOB,3GP,M2V,3G2,
M4V,OGM,RM,RMV,RMVB,FLV,MKV,MOV,TS,M2TS,MFS
AUDIO:CD,MP3,AC3,AAC,RA,RAM,RMM,PCM,WAV,MP1,MP2,FLAC,APE,OGG |
| Signal-To-Noise Ratio | 85 dB |
| DVD loader mechanism | WFF-050SH1180 (WEIZHEN MOTOR)) |
| DVD Pick up/lens | HOP-1200XH (Hitachi ) |
| DVD Decoder/Solution | MTK |
| Virtual ten disc | Yes (but still in adjustment) |
| DVD language | Chinese, English, French, German, Russian, Portuguese, Arabic, Thai language, Spanish, Italian |
| DVD Servo Drive | AMM5888SL/F |
| DVD Motor | PANASONIC (MDN3BL3CSAS) |
| GPS |
|
GPS Solution | MTK3328 RF |
| GPS operation system | WINCE6.0 |
| GPS resolution | 800*480 |
| baud | 9600 (Support 4800~115200) |
| port | COM 1 COM 2 COM 3 |
| Map Version | Support most of the map version |
| GPS card memory | 1-32G |
| TV tuner |
|
Analog TV Tuner | Qishengda (MT-S77) |
| TV system | Support NTSC,PAL, SECAM: D/K. I. B/G. M |
| Digital TV or Analog TV | yes |
| ISDB-T/DVB-T tuner | Tianhe |
| TV antenna | Analog TV antenna NO, Digital TV antenna YES. |
| Amplifier |
|
Form Factor | In-dash unit integrated 9600 |
| Amplifier max output power / channel qty | 45 Watts x 4 |
| EQ mode | Classic, Rock, Pop, Jazz, Normal |
| Power Amplifier IC | ST TDA7388 |
| audio processor | PT2348 SOP-36 |
| Bluetooth |
|
BT Version Standard | Bluetooth V2.0, Support HSP,HFP,A2DP,AVRCP (Bluetooth Stereo Music),can play stereo music through Bluetooth |
| Bluetooth brand | MT6622 |
| Stereo audio play/mute | Yes |
| Built-in microphone/hands free | Yes |
| Received Call | Yes |
| Dialled/Rediall Call | Yes |
| Missed Call | Yes |
| Phone Book | Yes |
| Remote Control |
|
Remote control | IR Remote Controller (optional) |
| Interface |
|
A/V Input | 2*channel audio in, 1*channel video in, 1 channel Camera input |
| A/V Output | 4*channel audio out , 2*channel video out, 1 channal Subwoofer out(optional) |
| Connector Type | 1 x A/V IN,2 x A/V OUT,1 x POWER,1 x IPOD,1 x USB,1 x AUX-IN, 1 x TV ANTENNA,1 xRadio ANTENNA |
| USB/SD Card Port | 1 SD Card Port, 1 Mini USB Port, Support 16-32G |
| Video type supporting by SD card | VIDEO:AVI,VID,DIVX,ASF,MP4,M4A,MPG,MPEG,DAT,VOB,3GP,M2V,3G2,
M4V,OGM,RM,RMV,RMVB,FLV,MKV,MOV,TS,M2TS,MFS
AUDIO:CD,MP3,AC3,AAC,RA,RAM,RMM,PCM,WAV,MP1,MP2,FLAC,APE,OGG |
| Ipod Control | Yes |
| Direct Connection Cable for Ipod Included | Yes |
| Additional Features |
|
Portable HDD Compatible | No |
| Built-in Speaker | Yes |
| Subwoofer Output | Yes |
| Anti-Shock | Yes |
| General |
|
Color | black(optional) |
| Operation temperature | -20°-70° |
| Storage temperature | -30°-80° |
| Net Weight | 4 kg |
| Warranty | 1 year |
| What's in the box |
|
|
1 x Power Cable |
|
1 x RCA Cables(optional) |
|
1 x Ipod cable(optional) |
|
1 x USB cable |
|
1 x GPS antenna |
|
1 x Manual
|
