Features:

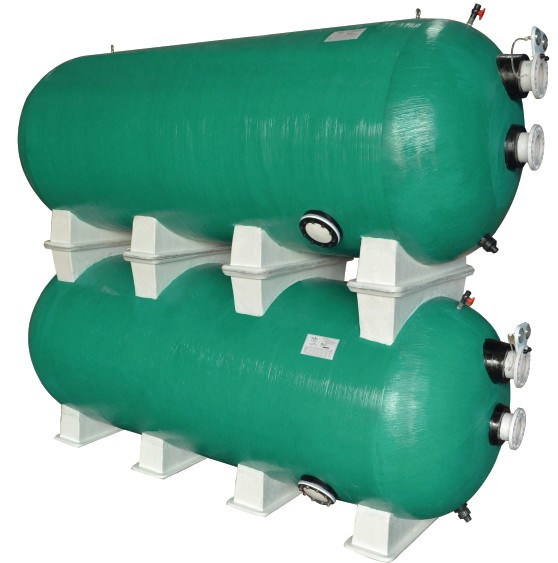

1. Horizontal sand filters are UV inhibited filament wound structural fiberglass tanks
2. Structural fiberglass/polyester bases for superior tank support
3. Fully pressure tested at factory
4. Exclusive features for superior performance
5. Metric and imperial piping connections available
6. Heavy duty packaging
7. Suitable for alternate filter media8. Offering attractive value to feature ratio
Specifications:
1. Maximum working pressure: 250kPa/36psi/2.5bar or 400kPa/58psi/4.0bar
2. Factory Testing Pressure: 400kPa/58psi/4.0bar or 600kPa/86psi/6.0bar
3. Maximum Water Temperature: 500 C
4. Size of Gravel: 1mm-2mm
5. Size of Silica Sand: 0.5~0.8mm
Application:
*swimming pool and SPA
*aguiculture
*industrial water treatment.

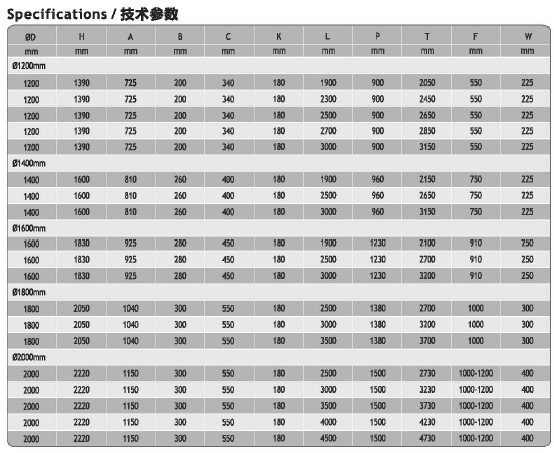

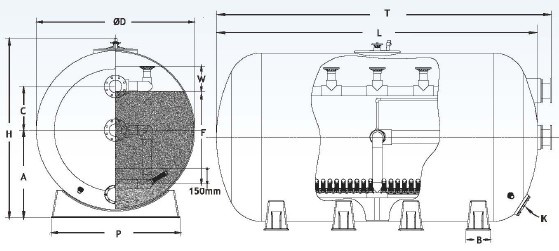

| Model | Diameter mm | Length MM | Outlet mm | High mm | Flow m³/h | Filter Area m² |
| HL121900 | 1200 | 1900 | 90 | 1390 | 59 | 1.96 |
| HL122300 | 1200 | 2300 | 90 | 1390 | 73 | 2.42 |
| HL122500 | 1200 | 2500 | 90 | 1390 | 79 | 2.65 |
| HL122700 | 1200 | 2700 | 110 | 1390 | 86 | 2.87 |
| HL123000 | 1200 | 3000 | 110 | 1390 | 96 | 3.21 |
| HL141900 | 1400 | 1900 | 110 | 1600 | 67 | 2.23 |
| HL142500 | 1400 | 2500 | 110 | 1600 | 91 | 3.02 |
| HL143000 | 1400 | 3000 | 110 | 1600 | 110 | 3.67 |
| HL161900 | 1600 | 1900 | 110 | 1830 | 74 | 2.47 |
| HL162500 | 1600 | 2500 | 110 | 1830 | 101 | 3.36 |
| HL163000 | 1600 | 3000 | 160 | 1830 | 123 | 4.1 |
| HL182500 | 1800 | 2500 | 160 | 2050 | 112 | 3.74 |
| HL183000 | 1800 | 3000 | 160 | 2050 | 137 | 4.58 |
| HL183500 | 1800 | 3500 | 160 | 2050 | 162 | 5.41 |
| HL202500 | 2000 | 2500 | 160 | 2220 | 130 | 4.34 |
| HL203000 | 2000 | 3000 | 160 | 2220 | 159 | 5.3 |
| HL203500 | 2000 | 3500 | 160 | 2220 | 187 | 6.25 |
| HL204000 | 2000 | 4000 | 200 | 2220 | 216 | 7.21 |
| HL204500 | 2000 | 4500 | 200 | 2220 | 245 | 8.16 |
