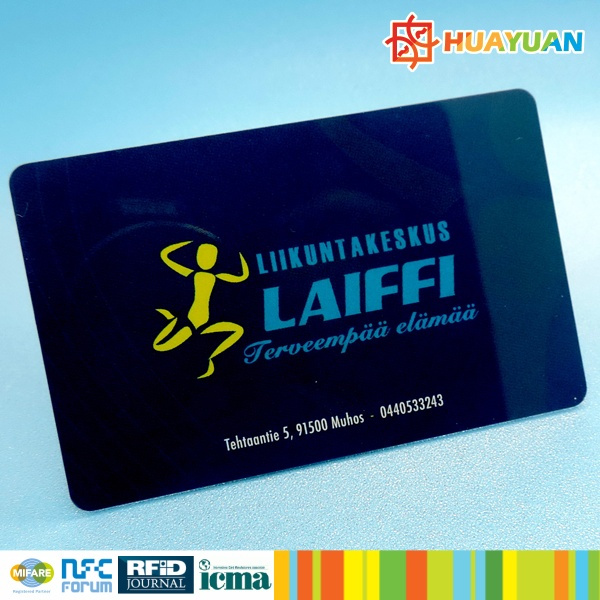

High Quality Encoding 13.56MHz HF Ntag 215 Card for Payment
Pls note: More and more NFC chip will be used in loyalty system, if you need any help, Just let me know!
Free samples of NFC CARD, TAGS, wristbands are available for your testing!
1. NFC NTAG215 CARD Application
NTAG215 with bigger capacity than NTAG203/213,can be locked, with higher security.
Subject to the usable memory size, Ntag215 NFC cards is ideal for storing URLs, telephone numbers, SMS, e-mail and geo-locations, text as well as vCards and signatures.
Depending on the Ntag215 NFC cards contents and the application used, NFC enabled phones can react to a card by:
calling a phone number and sending an sms text message or an email
opening a URL
showing pictures and playing videos, songs or tunes
liking something on Facebook or retweeting something on Twitter
adding a contact
NTAG215 card DETAIL: |
Application |
Rewards and loyalty systems, frequent buyer programs, contactless ID applications,
public transportation,eBusiness cards |
Feature |
Read/write |
card Material: |
PVC/ABS/PET |
Size: |
ISO CR80 standard(85.5mm x 54mm) or customized |
Thickness: |
0.8-0.84mm |
Minimum QTY: |
500pcs. |
Chips Available: |
NTAG203 NTAG213 NTAG215 NTAG216 |
Operating Frequency: |
13.56Mhz |
Standard: |
ISO18092 |
Available Crafts: |
4 color offset printing, magnetic stripe, embossing number, signature panel, photo, barcode, thermal printing,
gold/shiver color scratch-off, series number punch, hole punched, UV printing, etc. |
Surface: |
glossy, matte, frosting |
Price Items: |
We accept EXW/FOB/CNF/CIF price. |
Payment Term: |
Paid by T/T or Western Union, OR PAYPAL |
2. MIFARE PARTNER
(MIFARE® are registered trademarks of NXP B.V.) MIFARE® Series are available
MIFARE® Series CARD 13.56mhz MIFARE® card with perso:
Advantage:
1. Feature: Good encryption, with higher security
2. Application: E-purse, Cashless payment.
You guys will be more clearly with below form:
The following NXP chip types are also availabe for making smart cards |
| Chip Type | Protocal | Memory | Frequency | Write Endurance (cycles) | Data Retention (yrs) |
|
|
| MIFARE Ultralight® | ISO 14443A | 64byte | 13.56MHz | 10 0000 | 10 |
| MIFARE Ultralight® EV1 | ISO 14443A | 80/164byte | 13.56MHz | 10 0000 | 10 |
| MIFARE Ultralight® C | ISO 14443A | 192byte | 13.56MHz | 10 0000 | 10 |
| MIFARE Classic® 1K | ISO 14443A | 1024byte | 13.56MHz | 200 000 | 10 |
| MIFARE Classic® 4K | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
| MIFARE Plus® S 2k | ISO 14443A | 2048byte | 13.56MHz | 200 000 | 10 |
| MIFARE Plus® S 4k | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
| MIFARE Plus® X 2k | ISO 14443A | 2048byte | 13.56MHz | 200 000 | 10 |
| MIFARE Plus® X 4k | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
| MIFARE® DESFire® EV1 2K | ISO 14443A | 2048byte | 13.56MHz | 500 000 | 10 |
| MIFARE® DESFire® EV1 4K | ISO 14443A | 4096byte | 13.56MHz | 500 000 | 10 |
| MIFARE® DESFire® EV1 8K | ISO 14443A | 8192byte | 13.56MHz | 500 000 | 10 |
3. HUAYUAN Equipment
HUAYUAN understands Printing is key issue to meet client's satisfactions. Therefore HUAYUAN prints cards strictly according to client's layout with Heidelberg printing machine. Keeping the consistency between printing effect and approved layout is always the priority to HUAYUAN.
4.Why not HUAYUAN?
Programmable RFID card have been widely used in our life, like RFID card, Hot Seliing MIFARE® DESFire® Smart Card Maker,NFC card, membership card, bus card, library card, student card etc. In order to offer RFID card in the best quality, HUAYUAN keep focusing on card production more than 20 years. If any inquiry, Why not contact Vivian right now?
HERE is our professional team of HUAYUAN. Focusing on RFID NFC field 20 years.
If you have any question of ntag215 card, please contact us for further details.
Awaiting for your enquiry.
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
