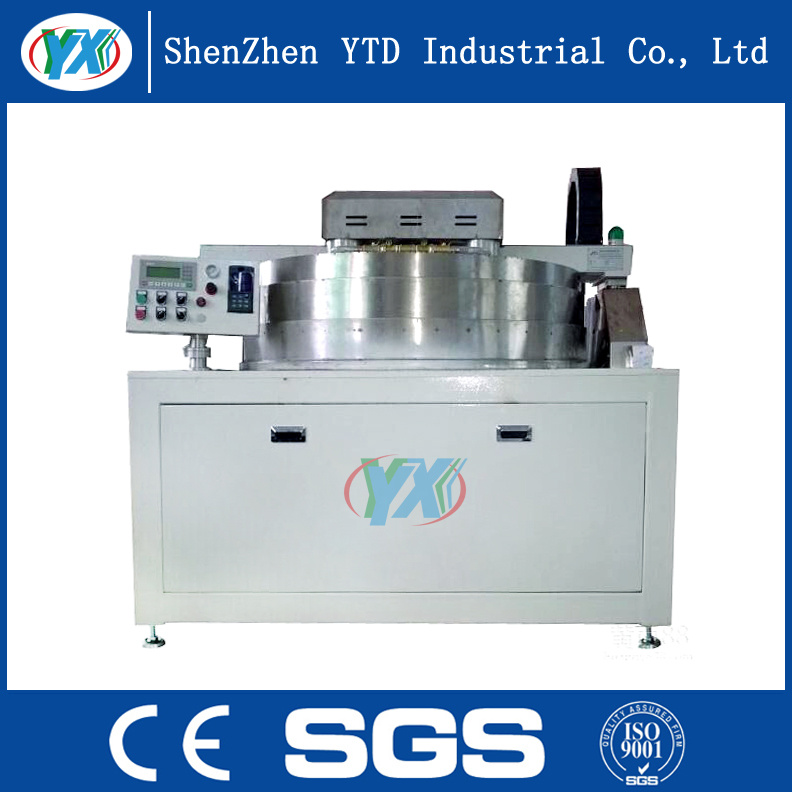

Good Qualiy Polishing and Abrasive Finishing Machine
Applicable :
This product is mainly aimed at the 2.5D surface polishing and design, and applies to all sizes, different materials, Hu mobile phone lens, flat lens, touch screen polishing, polishing processing.
FEATURE
1. Vacuum sorb pallet for fixing glass sheet, one-touch operation.
2. PLC control system, set working speed and period as you want.
3. High efficiency, capacity of 2500 pieces of glass per hour.
4. Imported machine main parts ensure steady cycle.
ZKSG-1000 Main technical paramters:
| Chassis diameter | ø1000mm(cast aluminum alloy) |
| The number of diameter | 4*ø400mm(aluminum alloy) |
| On the footwall rotation speed | 10-100\min |
| Maximum loading quantity | 48pcs(5 as an example) |
| Control system | XP2-18R(pioneer PLC, inverter and PLC using mitsubishi or Siemens, pneumatic components by SMC. main electrical components used OMRON |
| Frequency converter | Desktop |
| Spindle motor | Y160L-2-B3(three phase asynchronous) |
| Top gear motor | 200YS04(220V) |
| Reduction box | WP0200(domestic) |
| Air pressure | 5-7kgf\cm² |
| Lift cylinder | SC80 |
| Cylinder stroke | 350mm |
| Equipment power | 13kw |
| Input voltage | 380V |
| Frequency | 50Hz-60Hz |
| Weight | 1500KG |
| Dimensions | 1780*1450*1650* |
Performance features:
1. vacuum adsorption, PLC program control, one thing operation, easy to learn.
2.original positive and negative pressure design
3. reasonable design, product quality stability
4.on the processing plate can be lifted, suitable for a variety of products, a multi-purpose machine
5. can choose to use the brush \ carpet processing
FAQ
1. How can i trust you about machine quality?
A: The detailed machine specifications (including every machine parts) will be enclosd behind the contract.
2. Can you send engineers to my country?
A: Yes, of course. We support overseas training for machine installation, working or after sale service.
3. May i visit your factory and check the production schedule?
A:Sure. It would be our pleasure to show our factory to your esteemed corporation.
After-Sales Service
1. Free technical support, machine operation and trouble shooting method.
2. Control system upgrade, motherboard upgrade, and related functions upgrade.
3. Supply free spare parts during warranty period.
4. One year warranty, six months warranty for lens and laser tubes, except for artificial damage.
5. 24 hours telephone technical support.
If any further details you need, please contact us .
