Version

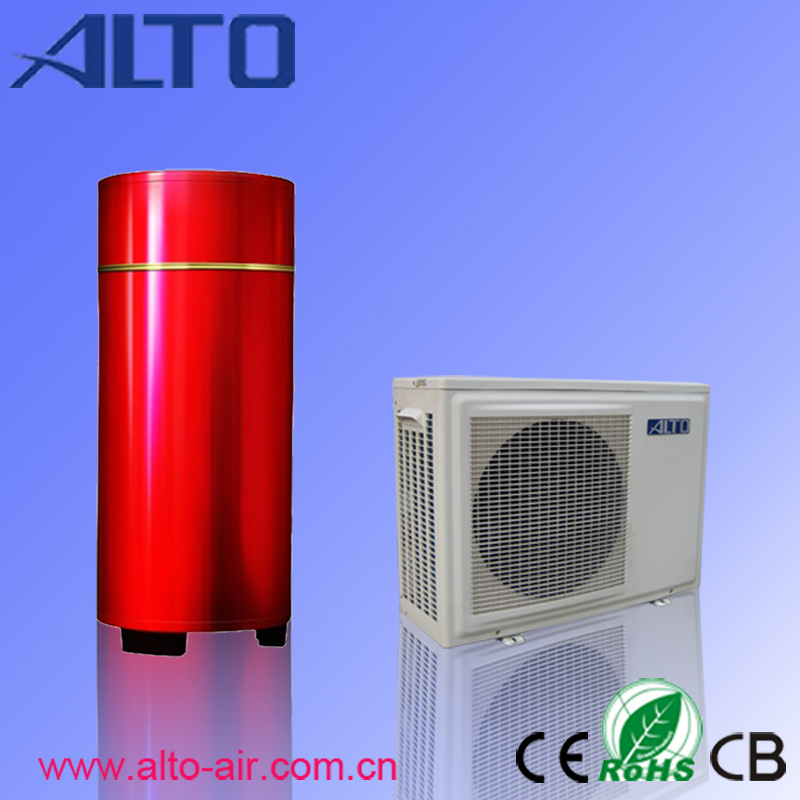

Alto hot water heat pump (SHW series) which is specially designed to provide up to 55oC hot water for domestic bath consist of outdoor unit and domestic pressure water tank. It offers three or even four times energy for heating than the electricity it consumes. And hot water heat pump separates the electric system from the water totally, which offer 100% safe guarantee to the users.
Combine operating cycle: Domestic hot water
Features
Compact design with high COP compressor, expansion valve, high efficiency heat exchanger, water pump and other efficient parts in the outdoor unit.
ABS plastic cabinet with galvanized powder coated steel bottom plate free corrosion.
Tube in shell heat exchanger makes sure water temperature arrives at 55oC and cost
Less than normal plate heat exchanger.
The pressure water tank without any refrigerant copper tube, designed for
None-leakaged of gas.
The automated control has the simple and friendly interface. Set your desired pool
Water temperature and the heat pump will do the rest. Both panel control and line
Control (optional) are available.
Environmentally-friendly and safety refrigerant R410A or R407c is used for higher efficiency and more ecological, which is ozone-depletion-neutral, non-flammable and reliable.
Installation is greatly simplified, only water pipe and electric connections effort, which is the cost effective for end-user.
|
Model |
|
SHW-035 |
|
Heating capacity |
w |
3500 |
|
Rating input |
w |
950 |
|
COP |
w/w |
3.7 |
|
Rated current |
A |
4.1 |
|
Water output |
L/H |
75 |
|
Water connection inlet |
inch |
3/4" |
|
Water connection outlet |
inch |
3/4" |
|
Water-proof grade |
Type |
IPX4 |
|
Output water temperature |
Celsius |
55 |
|
Guaranteed operating range |
Celsius |
-10~35 |
|
Power supply |
V/Ph/Hz |
230/1/50 |
|
Noise level |
Db(A) |
47 |
|
Hegiht |
mm |
630 |
|
Width |
mm |
848 |
|
Depth |
mm |
300 |
|
Weight |
kg |
48 |
Alto is the professional manufacturer of the heat pumps, dehumidifiers, chillers and some other ventilators in South China for more than 10 years.Our main market overseas are Europe, South east Asia and South America.
