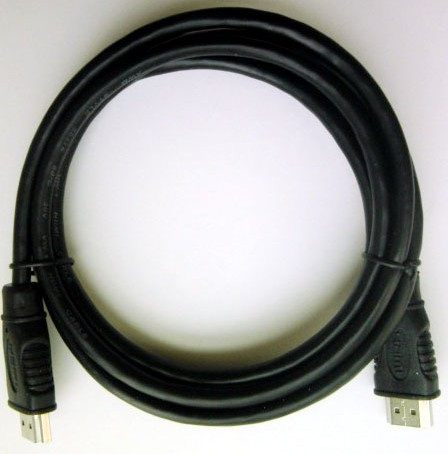

HDMI 1.4V Cable with Heac

HDMI 1.4V Cable with Heac
Price: US $ 1/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 5000/Meter
Pay Type: L/C,T/T,Western Union
Prod Model: XY-HDMI 1.4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Copper
Interface Type: USB
Application: Network

Product Description

HDMI 1.4V CABLE With HEAC
Product Details:
Conductor: Tinned Copper
Jacket: UL PVC
Color: Black (May according to request to match colors)
SPECIFICATION: (1P*30AWG+D+AL+Mylar)*5C+(1P+2C)*30AWG+AL+D+B OD: 6.0mm
Rating: TEMP 80C: VOLTAGE 30V
Standard Type: HDMI 1.4 V Cable With HEAC
PHYSICAL PROPERTIES OF JACKET:
1. Tensile Strength: Unaged: 1500PSI min Aged: 70% min
2. Elongation: Unaged: 100% min Aged: 65%
3. Heat shock test: NO CRACKING
4. Cold bend test: NO CRACKING
5. Deformation test: MAX 50%
6. Flame test: PASS VW-1
ELECTRICAL CHARACTERISTICS
1. Rating: TEMP 80C: VOLTAGE 30V
2. Conductor Resistance: AT 20C MAX 30AWG: 376.96Ω /km;
3. Insulation Resistance: 10MΩ -km min at 20C DC 500V
4. Dielectric Strength: AC 500V/1minute no breakdown.
5. Fext<-20dB
6. Impedance: 100± 10Ω
7. Attenuation:
(1)0.3~825MHz <5dB/ 3M; (2) 0.825~2.475GHz <5~12 dB/3M; (3) 2.475~4.125GHz <12~20 dB/3M
(4) 4.125~5.1 GHz <20~25 dB/3M
8. Time Delay Skew: Within a pair less than 111ps/ cable; Between pairs: Less than1.78ns / cable
9. HEAC: (1) Impedance: Pairs(differential mode) 100± 10Ω ; Pairs (Common Mode) 30± 6Ω
(2) Attenuation(max): At 0.30~10MHz 1.6dB/3.0M; At 10~100MHz 5dB/3.0M; At 100~200MHz 7.1dB/3.0M;
(3)Propagation Delay Skew: Intra pair Max 111ps/cable
*These data are limited to raw cable.
Marking: High Speed HDMITM Cable With Ethernet E325852 AWM Style 20276 80C 30V VW-1
RoHS compliance available, UL certification
Additional Info:
Packing: 100m/coil-200m/coil
Origin: HuiZhou GuangDong
MOQ: 5km
Capacity: 1000km /Month
Huizhou Golden Ocean Magnet Wire Factory, was founded in 2001 invested by Hongkong Golden Ocean Copper Industrial Co., Ltd. As one of the largest producersd exporters of all kinds of enamelled copper wires in China. The company covers an area of over 54, 000 square meters with building area reach 40, 000 square meters. The company with assets RMB 180, 000, 000 Yuan and more than 800 employees. Golden Ocean magnet wire factory have been focusing on R & D and production of enamelled copper wires including Enameled wire, Triple insulation wire, Bare copper wire, Tinnd wire, Stranded copper wire and DC wire with qulity raw matrials, advanced equipment, state-of-art technology and various accurate testing and inspection instruments. Our company has gradually from single manufacture eed wire transite into production diversified manufacture, which including Enameled wires & cables, power cables, electrical wires etc. We have an annual output of 7000 tons of all kinds of enamel wire products which include polyurethane enamel round copper wire(UEW, class B, class F and class H series), fusible enamel round copper wire (NEW series), Polyester imines enamel round copper wire (PEW series), Nylon composite enamel round copper wire (UEW-NY and PEW-NY and PEW-NY series), polyester imines enamel round copper wire (EIW series), solvent-bond solderable polyurethane enamel round copper wire (SBUEW-Y), and heatbond solderable polyurethane enamel round copper wire(SBUEW). We can also manufacture all kinds of non-standard enamel wire products upon requirements of customers. We have been certified to ISO-9001 and 5S'manag ement system as well as the "Underwriter's Laboratory"safety approval to our products. By means of increasing development and making full use of our existing advantages. We will continuously create new advantages to achieve an absolutely trustable product brand in such a competitive field.
