Product Details

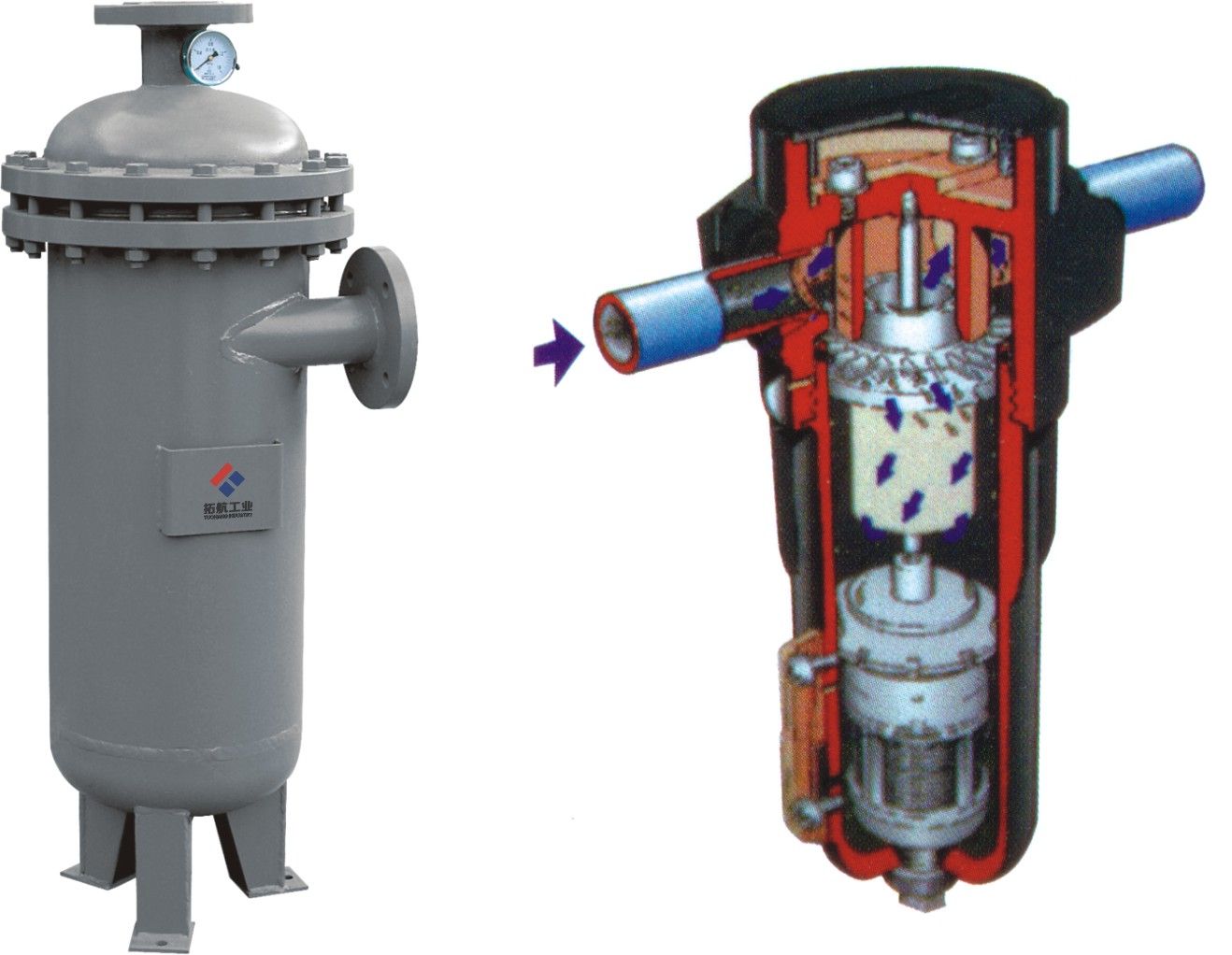

The filter which integrates the secondary purification of spiral separation and agglomerate filtration can directly block up the oil and water in compressed air; It removes over 98% of the oil, water and dust in the compressed air through cyclone separation, inertial impaction and gravity sedimentation.
Technical Indexes
Rated Air Processing Volume: 1-500N m³ /min
Air Inlet Tempperature: ≤ 50º C
Woriking Pressure: 0.6~0.8MPa (0.8~3.0MPa available)
Gas-liquid Separation Efficiency: > 98%
Pressure Loss: ≤ 0.02MPa
Parameter/Model |
HDL-2/8 |
HDL-3/8 |
HDL-6/8 |
HDL-10/8 |
HDL-16/8 |
HDL-20/8 |
HDL-30/8 |
HDL-40/8 |
HDL-60/8 |
HDL-100/8 |
HDL-150/8 |
HDL-200/8 |
Rated Air Processing Amount(Nm³/min) |
2 |
3 |
6 |
10 |
16 |
20 |
30 |
40 |
60 |
100 |
150 |
200 |
Inlet and outlet DN(mm) |
25 |
32 |
40 |
50 |
65 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
Overall Dimensions(mm) |
Φ1 |
Φ219 |
Φ219 |
Φ219 |
Φ219 |
Φ219 |
Φ273 |
Φ273 |
Φ300 |
Φ400 |
Φ600 |
Φ600 |
Φ800 |
Φ2 |
Φ200 |
Φ200 |
Φ200 |
Φ200 |
Φ200 |
Φ250 |
Φ250 |
Φ290 |
Φ400 |
Φ600 |
Φ600 |
Φ800 |
H |
575 |
625 |
670 |
770 |
900 |
920 |
1030 |
1075 |
1115 |
1420 |
1560 |
1600 |
H1 |
325 |
370 |
410 |
490 |
590 |
540 |
640 |
670 |
665 |
860 |
950 |
950 |
H2 |
120 |
120 |
120 |
120 |
120 |
125 |
125 |
145 |
180 |
180 |
200 |
250 |
A |
160 |
168 |
160 |
170 |
200 |
200 |
210 |
230 |
300 |
400 |
400 |
480 |
B |
80 |
80 |
70 |
70 |
70 |
90 |
85 |
90 |
105 |
220 |
190 |
270 |
Equipment Weight(Kg) |
30 |
40 |
50 |
65 |
80 |
90 |
120 |
150 |
220 |
295 |
350 |
390
|
