H72/8072-3inch Professional Audio Hf Compression Driver Speaker

H72/8072-3inch Professional Audio Hf Compression Driver Speaker
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 30/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: H72/8072
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Noise: <102dB
Hi-Fi: Not Hi-Fi
Operation Mode: Wire / Remote Control
THD: <0.005%
Speaker Material: Ferrite
Monitor: None
Certification: ISO
Application: Stage
Speaker System: Passive

Product Description

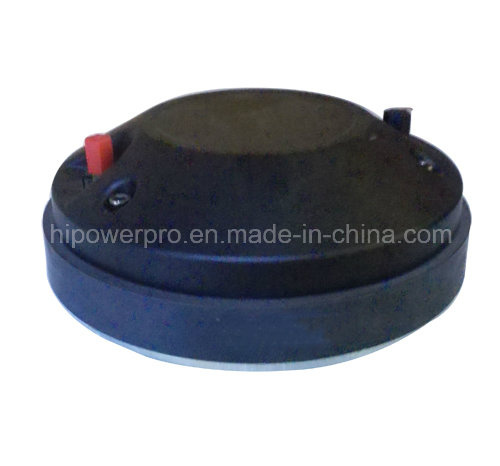

 H72/8072-3Inch Professional Audio HF Compression Driver Speaker





5.Professional Loud Speaker Compression Driver designed for HF application

6.Hipower Audio is a Professinal Speaker factory with experience in the Speaker field for 12 years. We make our own tranducers ,HF drivers and empty cabinets.

7. dj equipment material

8.Details:



General Specifications
Nominal Diameter38/1.5mm/inch
Rated Impedance8ohm
Nominal Power handling80Watts
Program Power160Watts
Sensitivity(lw/lm)112dB
Frequency Range800-17kHz
Minimum Impedance(Zmin)6.8ohm
Voice Coil Diameter72/2.8mm/inch
Voice Coil MaterialEdgewound Aluminum
Voice Coil Winding FormerKapton
Phase Plug MaterialAluminum
Flux Density1.55T
Magnet Material/MassCeramic/1.63kg

Thiele-Small parameters
Resonance frequencyFs Hz
DC resistanceRe ohm
Mechanical factorQms
Electrical factorQes
Total factorQts
Mechanical complianceCms mm/N
Mechanical resistance
of suspension losses
Rms mech-ohm
Effective Moving MassMms gr
Half-space efficiencyEff %
BL FactorBL T.m
Equivalent Cas air loadVas liters
Effective piston areaSd m2
Max.linear excursionXmax mm
Voice-coil inductanceLelK mH

Mounting Information
Overall Diameter169mm
Overall Depth63.5mm
Net Weight5.3kg
   4xM6 holes,90°on 101.6mm diameter

Guangzhou HiPower Audio Co., Ltd. is located in GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.

Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.

In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.

Since Hipower was found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.

We are looking forward to establishing long-term relationships with you.
