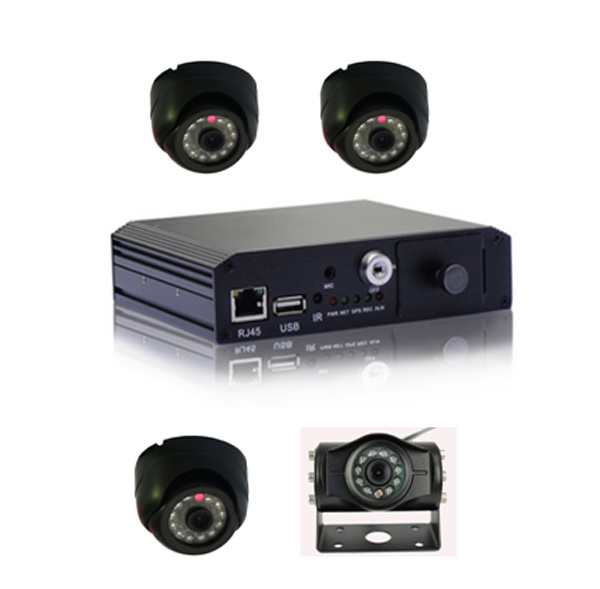

Shenzhen Vcomsky Technology Co., Ltd. >> H. 264 SD Card Mobile DVR 4CH Multi-Language & Surveillance System

H. 264 SD Card Mobile DVR 4CH Multi-Language & Surveillance System

H. 264 SD Card Mobile DVR 4CH Multi-Language & Surveillance System
Price: US $ 1-115/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union
Description:
VC-MDRS8000 is a high level hard disk / SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, integrates latest H. 264 AV codec standard, high capacity hard disk storage, mature shock absorption technology, network streaming media, AV noise reduction, wide range voltage design and patent power-off protection technology, support WiFi, 3G, GPS for optional, brief outward, easy installing, system is safe and reliable.

Functional Feature:

8-36V wide range voltage input, with overvoltage protection function.
Super double universal shockproof system
Built in G-sensor module
Support GPS, 3G, WiFi for optional
Support SD card and hard disk storage
Support advertising screen docking, support mobile surveillance(for optional), support communication with peripheral equipment
Patent UPS power-off protection technology
Support trajectory playback
GPS over speed alarm, acceleration alarm, motion detection alarm
Support alarm trigger capture
Phone dialing function, IP call function, disk preheating (for optional)
Mobile monitoring center platform management software (for optional)
Data redundant storage technology
Support local and remote PTZ control
Startup recording by default, support auto timed, alarm & manual recording
Support to connect speed sensor input, speed audio video synchronous recoding.
Multiple sensor alarm and alarm linkage
Support to record multiple status, such as open the door, brake, turn, whistle.
External dimension: 142(W) X62(H) X123(D) mm 142(W) X36(H) X123(D) mm
Item Description
Operation system Linux
GUI Setup system parameters with remote controller
Security management Support user password, supervisor password management; support encryption transmission
Video Video input/output 4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω
Dual stream Support
OSD Time & date, vehicle ID, GPS etc
Compression  H.264. Hisilicon high performance processor is applied.
Preview function Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function
Video frame rate PAL: 100 frame/sec, up to 25 frame/sec for single channel
NTSC: 120 frame/sec, up to 30 frame/sec for single channel
Video resolution CIF, HD1, D1,4D1 adaptive
Video quality Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest
Video Bit Rate CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional
HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional
D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional
4D1: 800Kbps ~ 4Mbps, 8 levels of bit rate optional
Audio Audio input/output 1-channel input; 1-channel output
Compression G.726
Recording Storage media H8000 support Hard Disk+SD card,  S8000 support only SD card
File format/system ASF/ FAT32
Recording mode Startup recording by default, support  auto,timed, alarm & manual recording
Recording search Search recording video files by time, type, storage device, etc.
Recording playback Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time
Alarm Alarm input 5-channel I/O  alarm input
Alarm recording Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min
Alarm output 2-channel alarm output
Storage space Support the setting of remain storage space alarm function
Functional alarm Overspeed alarm, gsensor alarm, voltage alarm,snapshot  alarm, motion detection alarm
Communication interface RS232, RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional) Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional;
GPS (optional) Support external GPS module
Data remote transmission Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download;
PTZ control Support PTZ control function by local remote controller or client software;
Parameter configuration Support parameter configuration
G-sensor Built-in
System upgrade Support hard disk and  SD card / Remote upgrade
Power supply & consumption Power supply management ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown
Input voltage DC:+8V ~ +36V
Output voltage +12V@4*0.5A;[email protected]
Power-off protection Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs
Power consumption Less than 10W in normal working state; less than 0.5W in standby mode
Working environment Temperature Normal: 0 ~ +60 degree
Hard disk pre-heating: -25 ~ +60 degree
Humidity 10% to 95%
Dimension H8000:142(W) x62(H) x123(D) mm,  S8000:142(W) x36(H) x123(D) mm
Weight H8000:net weight:1000g ,         S8000:net weight:550g

Prod Model: VC-MDRS8000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 8-36V Wide Range Voltage Input
Shockproof: Super Double Universal Shockproof System
G-Sensor: Built in G-Sensor Module
Wireless: Support GPS, 3G, WiFi for Optional
Storagy: Support SD Card
Alarm: Multiple Sensor Alarm and Alarm Linkage
PTZ: Support Local and Remote PTZ Control
Video: 4 Chnnals Video Input, 1 Channal Video Output
Audio: 2 Channal Audio Input, 1 Channal Audio Output
Compression Format: H.264
Brand: Vcomsky
Certification: CE, FCC, RoHS
Interface: Airplug
Warranty Time: 13 Months
