Grf Audio Professional Line Array Subwoofer Speaker System
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
5/Piece |
Pay Type: |
T/T |

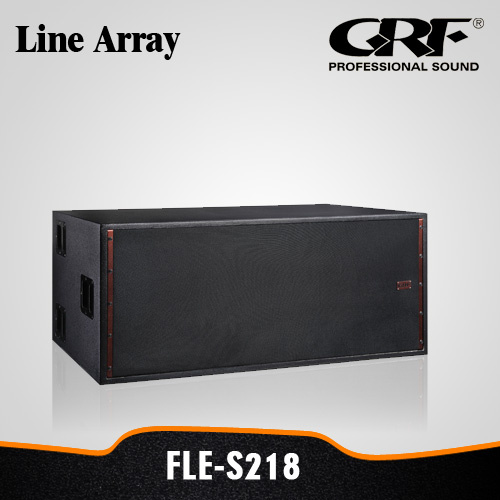

The FLE-S218 is the universal subwoofer designed to match with FLE-12PT, FLE-D8PT line array, ACT coaxial and KR systems, lowering the combined system operating range down to 25Hz.
FLE-S218 is a bass-reflex tuned enclosure. It is powered by 2x18" LF transducers. The transducer provides exceptional impact and high sensitivity, low thermal compression and reduced distortion. The special reflex structure allows the vents featuring a laminar airflow and reduced turbulence noise even at the very highest operating levels. Compared with GRF previous subwoofer system, FLE-S218 has a fashionable appearance, with the unique front grille, the SPL is able to increase 5dB.
FLE-S218 subwoofer requests an additional amplification & DSP controller to enable perfect bass output. The DSP controller should has advanced crossover functions, system EQ, and dual thermal and over-excursion protection of the transducer.
GRF's recommendation for FLE-S218 system match as follows: -
The standard mode using FLE-S218 as a companion to FLE-12PT, FLE-8PT, ACT-15M, ACT-12M and GRF KR series system, the FLE-S218's preset is high-pass filter at 80 Hz.
The performance of the FLE-218S depends on the choice of preset and physical system configuration. The cabinet is made of high grade Baltic birch plywood and features an integrated flying accessory.
Model |
FLE-S218 |
Frequency Response |
35Hz~150Hz(± 3dB) |
Component |
LF: 2x18" (4" voice coil) |
Rated Power |
1200W AES, 4800W Peak |
Recommended Amplifier |
1200W~2400W into 4ohms |
Sensitivity |
101dB |
Maximum SPL |
132dB/1m continuous 138dB/1m peak |
Nominal Impedance |
4 ohms |
Enclosure |
Birch plywood |
Finish |
Black, scrath paint |
Grill |
Steel grill with black foam |
Connectors |
2xNeutrik Nl4 |
Dimension(HWD) |
550x1300x700mm |
N. W. |
103kg(227 lb) |
Packing Dimension(HWD) |
3 600x1350x750 mm(0.61 M ) |
N. W. |
108kg(238 lb) |
Prod Model: |
FLE-S218 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Line Array Subwoofer |
Frequency Response: |
35Hz~150Hz(± 3db) |
Component: |
Lf: 2X18" (4" Voice Coil) |
Rated Power: |
1200W AES, 4800W Peak |
Recommended Amplifier: |
1200W~2400W Into 4ohms |
Sensitivity: |
101db |
Maximum Spl: |
132db/1m Continuous 138db/1m Peak |
Enclosure: |
Birch Plywood |
Hi-Fi: |
Not Hi-Fi |
Operation Mode: |
Wire / Remote Control |
Speaker Material: |
Wood |
THD: |
0.005%-0.01% |
Noise: |
<95dB |
Certification: |
CE |
Monitor: |
No Display Screen |
Application: |
Large-Scale Activities |
