| Prod Model: |
GT-5W-18.5A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

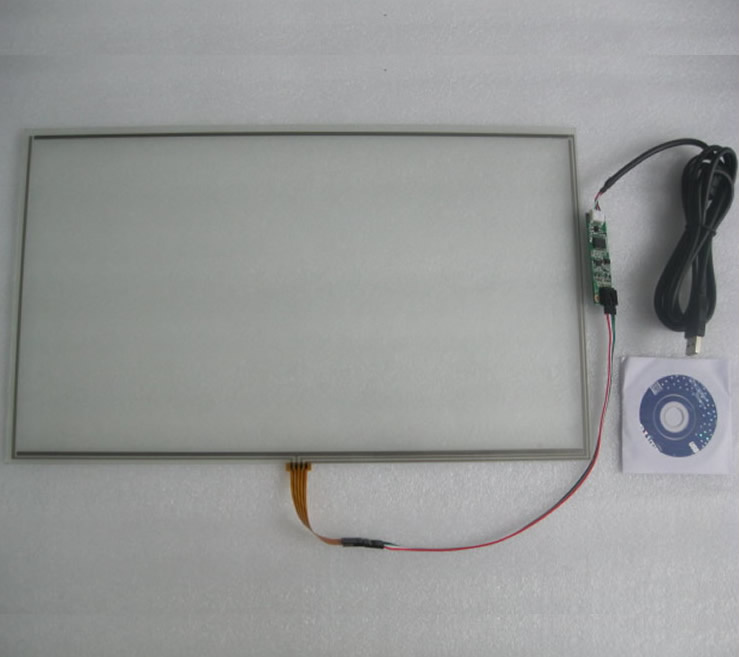

5 Wire Resistive Touch Screen Film |
| Size: |
18.5inch |
| Model: |
Gt-5W-18.5A |
| Thickness: |
2.3mm |
| Interface: |
USB |
| Structure: |
Glass+Film/Film+Film |
| Touch Life: |
1 Million |
| Screen Size: |
15-20 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Public Information Inquiry System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
Product Description
Specifications
Finger,gloved hand and styuls activation
Accuracy and sensitivity
Durablity and reliability
Contaminant proof
Low cost
Product specifications and parameters:
Product Type | 5 Wire Resistive touch screen |
| Resolution | 4096*4096 |
| Screen Ratio | 16:9 |
| Material | ITO Glass + ITO Film |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 1.15~2.5mm |
| Operating Voltage | DC ≤ 10V |
| Operating current | 5~25mA |
| Response time | Less than 10ms |
| Touch action force | 20~100g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Surface hardness | 3H |
| Working environment | Under sunlight, indoor and outdoor |
| Warranty | 1 year |
| Transparency | ≥80% |
| Isolation resistance | ≥20MΩ DC 25V |
| X.Y resistance | 100Ω~1000Ω according to the size |
| Linearity | ≤1.5% |
| The number of hits | ≥1,000,000/point |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux |
Product Application:
1.Light industrial.
2.Home appliances.
3.Portable sport devices.
4.Access control terminals.
5.Portable medical devices.
6.Personal computer and office.
Touch screen Features:
1. Proven Resistive Technology.
2. Simplicity of Interface Electronics.
3. Durable Plastic Construction.
4. Less Susceptible to Accidental Touch.
5. Ability to use Finger or Stylus to Activate Touchscreen.
6. High Linear Analog Output.
7. Input flexibility, finger (with/without glove), stylus, pen.
We are a professional touch screen's manufactory, GreenTouch is specialized in the R&D, manufacturing, marketing and sales of high-end touchscreen, and also value-added touchscreen products, and we are a high-tech company, being able to provide customers perfect systems integrated with touchscreen.
The mission of GreenTouch is to make out the most advanced information input devices, to optimize the human-machine exchange interface dramatically.Green Touch has already build up and operating in accordance with ISO9001 quality system and ISO14001 environmental management system.Quality is the essential part of our company.GreenTouch products were certificated by CE, FCC.ETL, RoHS and UL.
The vision of GreenTouch is to be the reliable and specialized provider of touchscreen products, value-added products, and systematic touch solutions around the world.
