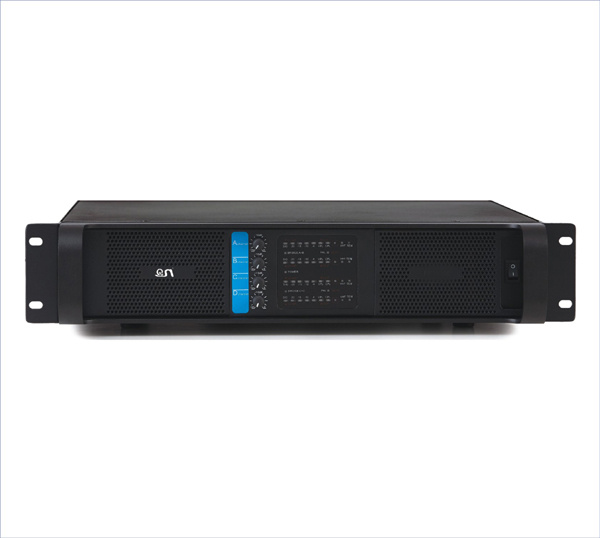

Fp10000q Lab Gruppen 1350W 4 Channel Power Amplifier

Fp10000q Lab Gruppen 1350W 4 Channel Power Amplifier
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,D/P,Paypal,Money Gram,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power 8ohm Stero: 1350W*4
Power 4ohm Stero: 2700W*4
Power 2ohm Bridge: 2500W*4
Frequency Response: 20Hz-20kHz(+-0.3db)
System Sensitivity: 0.775V/1.0V/1.44V
Operation Mode: Stero/Bridge/Parallel
Thd: <0.1%
Size: 483*425*90mm
Net Weight: 15.7kg
Transisitor: Original American on Semi
Type: Professional Amplifier
Usage: KTV System
Used For: Professional
Tube Type: Transistor Amplifier
Function: Post Amplifier
Output Number: 4
Voltage: AC 220V
Element Number: Push-Pull Amplifier
Conductive Mode: D
Sound Channel: 2.0

Product Description

Fp10000Q 2u 4 channel 1350w switch-mode power supply power professional audio amplifier



Features:
1) this series is a kind of newly high efficient and high power switch mode power supply amplifier with superior sound quality performance.

2)it utilizes a second generation class TD circuit.

3)it use a regulated switch mode power supply ,which gives the added benefit of stabilizing rail voltages to the output even with wide fluctuations of mains voltage.

4)it use high quality adjustable potentionmeter,which can reduce the connecting lines and ports between modules as much as possible.

5)transistors are mounting on the heat sink to reduce the thermal resistance of transistors

6)it utilizes SMT technology ,which features stable performance.


Specifications:

Channel number: 4CH
8Ohm stereo, 1350W
4Ohm stereo,2700W
2Ohm stereo,2500W
8Ohm bridge: 4200W
4Ohm bridge:5000W
Gain: 35dB VPL: 101V
THD+N: <0.1%
THD: <0.05%
S/N ratio: >112dB
Crossover: >70dB
Frequency: 6.8Hz-34KHz
Input impedance: 20Kohm
Gain selecrable: 23, 26, 32, 35, 38, 41, 44dB
Input connector: XLR
Output connector: Neutrik speakon
Output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A, C is input source
Cooling: 2 fans, front to rear airflow, temperature control
Size: 483*88*398mm
Weight: 15kgs
Outlook: Black painted chassis, with black painted steel front

FP SeriesFP7000FP9000FP14000FP8000QFP10000Q
8ΩStereo Power(RMS)1500WX21800WX22350WX2800WX41350WX4
4ΩStereo Power(RMS)2800WX23000WX24400WX21400WX42700WX4
2ΩStereo Power(RMS)3500WX24500WX27000WX21600WX42500WX4
8ΩBridged Power(RMS)5600W6000W8800W2800WX24200WX2
4ΩBridged Power(RMS)7000W9000W14000W3200WX25000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W<0.1%
Signal-to-Noise Ratio>112 dBA
Channel separation (Crosstalk) at 1 kHz>70 dB
Input Connectors (per channel)3-pin XLR, electronically balanced
Output Connectors (per channel)Binding Posts 2-pole
ClassTD
TourClass ProtectionACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input






About Acessories:
We will send you the enough connectors and some other spare parts for you free.

Packaging:

1)Dual carton with Foam
2)Carton with external plywood bracket for Speaker



About our company


Established in 2005,Guangzhou Yunqiang Electronic Co.ltd specializes in R&D,design,production and marketing of professional speaker,professional power amplifiers,karaoke speakers and amplifier etc.Backed by high technology and staffed with a professional R&D team and QC team,the factory introduces some advanced electronic testing equipments from Japan,taiwan,ect.Combined with advanced processing lines.Exported to the Asia,Middle East,Europe,Amercia,Africa,etc.Our products enjoy high reputation and meet the demand of the market with the high quality and reasonable price.

Our Main product:
Professional speaker,Line array speaker,subwoofer,professional amplifier,karaoke speaker,karaoke amplifier,Pre-amplifier.

Our location:
Our factory located in Longhu village,Shijing Road,Baiyun district,Guangzhou city,Guangdong Province,China.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,

The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.

Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.

To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.

Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.

Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.

2016 Prolight + Sound Guangzhou

Our booth is A70 4.1.

Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.

Time is 29 February~3th, March, 2016
