| Prod Model: |
FP 800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 17kg: |
500mm*600mm*150mm |
| Noise: |
<102dB |
| Operation Mode: |
Knob Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CCC |
| Monitor: |
LCD Screen |
| THD: |
>0.01% |
| Hi-Fi: |
Professional Amplifier |
Product Description

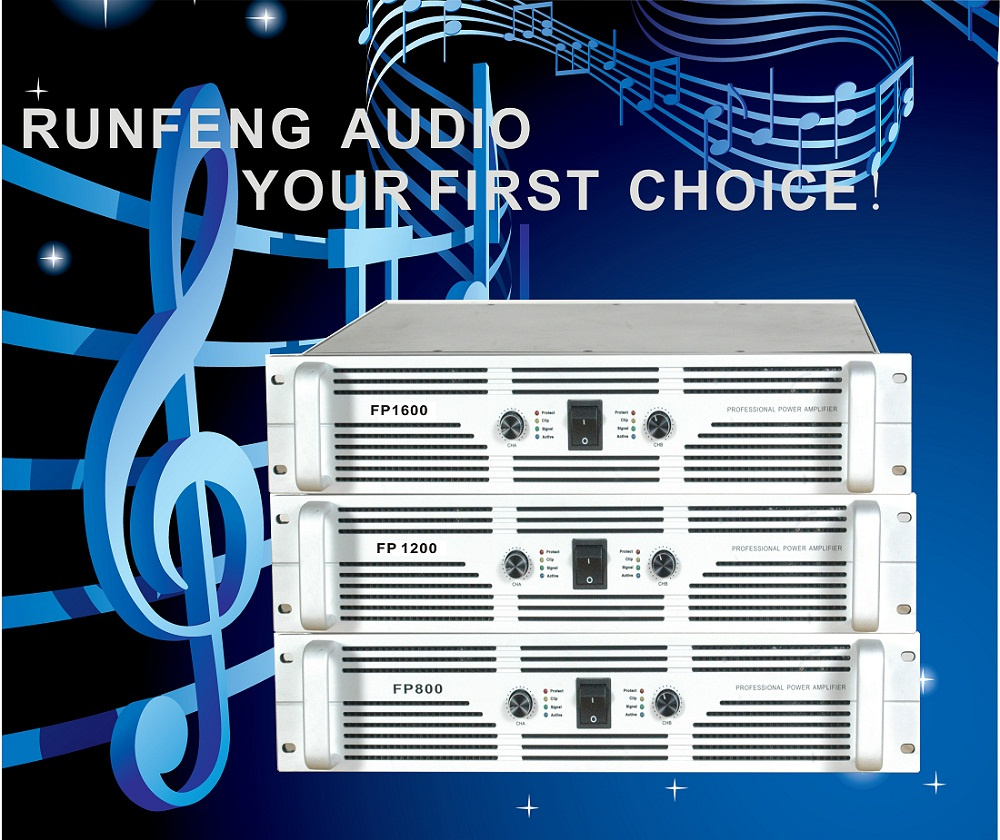

FP series
FP series delivery real precise,pure sonic quality.Its huge Output Power make more dynamic performance for your system.It will be your first choice if you want your project working awesome at tight budget.
Features:
2-tier class H for FP1200 and FP1600,3 tier class H for FP2600 and FP3000.
Power supply selected auto by Power system.LV to HV,or HV to HHV.
Smart circuit design make its performance more reliable and stable at cruel conditions.
Mode selectors is available for stereo,parallel and bridged-mono operation.
Input sensitivity selection,Crossover and grounding left switches Build-in Limiter.
NUMBER
MODEL
FP800
FP1200
FP1600
FP2600
FP3000
Output Power (8Ω)
2×400W
2×600W
2×800W
2×1300W
2×1500W
Output Power (4Ω)
2×600W
2×900W
2×1200W
2×1950W
2×2250W
Output Power (2Ω)
2×900W
2×1225W
2×1630W
2×2650W
2×3060W
Output Power(BRIDGE) (8Ω)
600W
1800W
2400W
3900W
4500W
Output Power(BRIDGE) (4Ω)
1800W
2450W
3260W
5300W
6100W
Output Circuit
Class AB
Class H
Class H
Class H
Class H
Input impedance
Balance/20K Unbalance/10K
Frequency response
20Hz-20kHz.(+/- 0.5dB)
THD+N
<0.1% 20Hz-20kHz.(8Ω)
Slew rate
>35V/μs
S/N rate
>95 dB
Damping factor
>300
Cooling system
Full Speed Fans
Protection
Soft start, DC, short circuit, over load, clip limit, over heat,
N.Weight/G.Weight (KG)
16/17.5
19/20.5
22/23.5
25/26.5
26/27.5
Dimension (mm)
600×4508
600×500
600×500×88
600×600×132
600×600×132
Power supply
AC220V/50Hz.±10% / AC1100V/60Hz.±10% according to customer's needs
"RUNFENG AUDIO" is a China based PRO amplifier MANUFACTURER that mainly offers OEM/ODM business for contractors, installers, professinals and all kinds of sound companies all over the world. We have been released RUNFENG DESIGNS to partners both in China and oversea for decades.
The founder, Mr Paul Lin, who started his carear with his strong desire and passion to PRO amplifier and relative audio equipments. He spent most his time and energy to design and research how to make PRO amplifier work. His works has come out and helped many professionals with a high quality but low burget solutions. But he doesn't even stop working hard his research for a better solution.
RUNFENG AUDIO was founded to overtake next revolution of the future, located in Zhongshan city Guangdong province. With clear MOTTO"QUALITY FIRSTLY". We decide to devote ourself to a single line of AUDIO PRODUCTS.
