| Prod Model: |
YTD262 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glass Thickness: |
0.15mm-8mm |
| Max Glass Size: |
1300*1100mm |
| Outline Dimension: |
2100*1750*1500mm |
| Power: |
3.6kw |
| Table Flatness: |
+/-0.015mm |
| Cutting Speed: |
0-80m/Min |
| Weight: |
2300kg |
| Accuracy For Straight Line: |
+/-0.05mm |
| Air Pressure: |
0.4-0.6 MPa |
| Voltage: |
Three Phase, 380V |
| Type: |
CNC Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
220V |
| Automation: |
Automatic |
Product Description

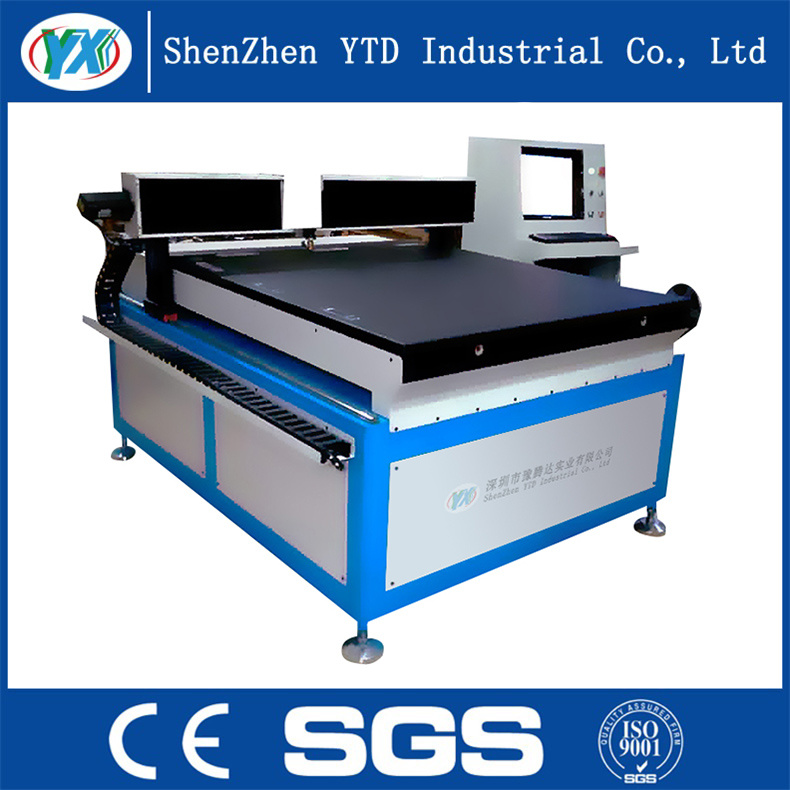

High Precision CNC Glass cutting machine for thin glass (production line) (We supply full productin line for tempered glass screen protecor)
YTD-1300A CNC glass cutting machine is suitable for optical glass with thickness from 0.1mm to 8mm, such as
cellphone cover plate and screen protector, tablet pc cover plate, watch len. Also this cutting machine is widely used in wood cutting, stone cutting.1.Parameters:
| Item | Specification |
| Glass thickness | 0.15mm-8mm |
| Max glass size | 1300*1100mm |
| Outline dimension | 2100*1750*1500mm |
| Weight | 2300kg |
| Accuracy for straight line | ±0.05mm |
| Table flatness | ±0.015mm |
| Cutting speed | 0-80m/min |
| Power | 3.6kw |
Main configuration:
(1)Transmission system: Shaft X,Y,Z are drived by Taiwan Delta servo motor.
(2)Oiling way: Automatic filling
(3)Positioning device: Mechanical positioning
(4)Mechanical configuration:Screw and guide (Taiwan Hiwin)
(5)Table: Precision marble with air flotation device
(6)Pneumatic components: SMC
(7)Computer: LENOVO
(8)Bearing: Japanese NSK.
3.Cutting software:Shanghai Weihong
Professional glass cutting software, it is compatible with CAD software, when start cutting, it can click the thickness of glass directly, and the cutter body can automatically adjust the pressure and the distance for falling the cutter.
4. Electrical components:
(1)Air switch: Taiwan Taian(with Electric leakage protection)
(2)Ac contactor: Taiwan Taian
(3)Button, Indicator light: Taiwan Shanhe
(4)Switching power supply: Taiwan Meanwell
(5)Relay: Taiwan Teco
(6)Proportional valves: SMC
(7)Filter, Solenoid valve: SMC
(8)Computer:Lenovo

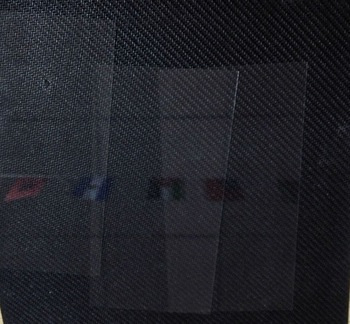

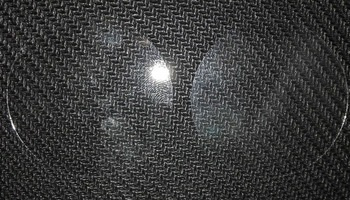

Finished product
Packaging & Shipping
1) 15~30 working days for ready goods.
a) Urgently please inform us in advance.
2)We provide wooden case for machine package.
a)Special requirements is considerable.
3)We support shipping ports: SHEN ZHEN, HONG KONG.
a) Other shipping port is considerable.
4)We accept FOB, CIF price.
FAQ
1. How can i trust you about machine quality?
A: The detailed machine specifications (including every machine parts) will be enclosd behind the contract.
2. Can you send engineers to my country?
A: Yes, of course. We support overseas training for machine installation, working or after sale service.3. May i visit your factory and check the production schedule?
A:Sure. It would be our pleasure to show our factory to your esteemed corporation.
After-Sales Service
1. Free technical support, machine operation and trouble shooting method.
2. Control system upgrade, motherboard upgrade, and related functions upgrade.
3. Supply free spare parts during warranty period.
4. One year warranty, six months warranty for lens and laser tubes, except for artificial damage.
5. 24 hours telephone technical support.
If any further details you need, please contact us .
