Factory Outlets Sic DPF Diesel Particulate Filter

Name: Factory Outlets Sic DPF Diesel Particulate Filter
Brand: ec-portal.com
SKU: 704641412
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	US $ 22-55Liter
Trade Terms:	FOB,CFR,CIF
Min Order:	10Liter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Diesel Particulate Filter (DPF) , also called wall flow filter,is suitable for exhaust gas purification of various kinds of diesel vehicles and ships. We can produce different materials of DPF: cordierite particulate filter and silicon carbide diesel particulate filter .We also supply Catalytic Converter, Catalytic muffler, Motorcycle catalytic converter, DOC Catalyst, SCR catalyst ,Ceramic honeycomb monolith , Metal honeycomb carrier, ect. Our management system has been certified the ISO9001 and TS16949 by SGS company.

Materials: cordierite or silicon carbide
Function:
Wall-flow diesel particulate filters usually remove 95% or more of the soot, and under certain conditions can attain soot removal efficiencies approaching 100%

Working Principle
By forcing the exhaust gases through the walls between the channels of the DPF,the particulate matter is deposited on the walls ,so reducing the amount of air pollution.

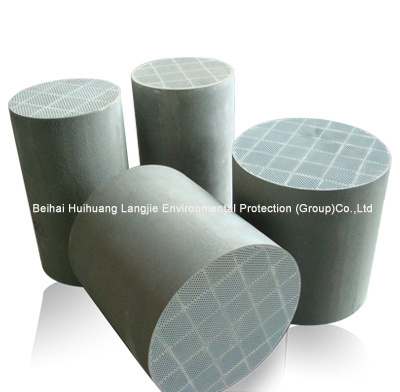

Silicon Carbide Diesel Particulate Filter

The second most popular filter material is silicon carbide is a ceramic compound of silicon and carbon , also called SiC. It has a higher melting point (1500ºC) than cordierite.

SiC cores are usually more expensive than cordierite cores, however they are manufactured in similar sizes, and one can often be used to replace the other.

Tested to ensure backpressure and performance match OEImproved thermal stability and efficiencyBacked by a lifetime, unlimited mileage warrantyStringently tested for durability and OEM functionalityApproved for horizontal, vertical and dual installations Nationwide technical /installation support Complies with emissions requirements for 2007 and newer model years
Parameter of Sic DPF

Item	Techinical Index
Sic Content	≥90%
Cell Density	200 cpsi
Wall Thickness	0.35-0.41mm
Cell Lenght	1.2-1.45mm
Apparent Porosity	42-60%
Median Pore Size	12-20μm
Transverse Compression Strength	>2.3Mpa
Coefficient of thermal expansion (40-800ºC)	4.3-4.4 (10-6/ºC)
Thermal Conductivity(500ºC)	14-22(W/mK)
Capture Rate	>95%
Bulk Density	0.8 Kg/L
Filter Area	0.75m2/L
Softening Temperature	>1500 ºC

Cylinder Silicon Carbide Diesel Particulate Filter (DPF)
Regular Diameter Size	Regular Height Size
Φ101.6mm(4 inch )	4 inch,5 inch,6 inch, 7.5 inch
Φ144mm(5.67 inch )	5.9 inch, 6 inch, 7.5 inch, 8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch
Φ152.4mm(6 inch )	4 inch,5 inch,6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch
Φ190.5mm(7.5 inch )	4 inch,5 inch,6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ203.2mm(8 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ215.9mm(8.5 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ228.6mm(9 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ240mm(9.45 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ241.3mm(9.5 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ254mm(10 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ260mm(10.24 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ266.7mm(10.5 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ279.4mm(11 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ285.75mm(11.25 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ304.5mm(12 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ317.5mm(12.5 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ322mm(12.68 inch )	6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch

Remark: customized specification can be allowed .
Add us to your favorite sellers list & Recommend our store to your friends and family!
Don't forget to regularly pass-by as we are constantly adding new products, special offers and unbeatable deals to our listings!

Prod Model:	BHHTCYWB005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Key Characteristics 1:	Low Pressure Drop
Key Characteristics 2:	Excellent Performance
Key Characteristics 3:	Self-Regenerationunder Special Conditions
Structure:	Ceramic Carrier
Type:	Diesel Particulate
Mechanical Principle:	Diesel Smoke Filter

Guangxi Huihuang Langjie Environmental Protection Technology Co., Ltd. is located in NO. 36 XiZang Road, Beihai City, Guangxi, China. It's a high-tech enterprise, which integrates scientific reserch, manufacturing of (industry) exhaust gas treatment of automobile, motorcycle and VOC system, and both import and export trade. Our factory is a demonstration production base which mainly produce high-tech environmental product. Our main products: Three-way catalytic converter of engines, Catalytic muffler, Motorcycle catalytic converter, Ceramic honeycomb substrate used In Vehicle/Industrial, Diesel particulate filters(only deal with diesel particulate), SCR DeNOX catalyst, Metal honeycomb carrier, DOC and kinds of catalyst substrate, ceramic balls, metal tower packing series, plastic tower packing series.

Our products lays a good foundation for implement our company's globle strategy and forms gradually to be the best competitive company in diversified industry chain. Our management system has been certified by the ISO9001-2000 system certification body of SGS on May, 2004 and has been carried out fully thereafter. At present, we are under training of TS16949, which will be carried out fully six months later.

In the principle of "Credit standing is the only survival condition for an enterprise" and "To provide high-quality products worldwide with perfect serving system and attitude", we have been dedicating ourselves to the upgrade of our enterprise brand and the improvement of our technology and competitive power. For realization of powerful cooperation, we have strengthened cooperation with universities and professional scientific research institutions in the field of technology. Being a partner of Nanchang University on scientific research, we have founded Beihai Research Base of Modernized Chemical Application with Nanchang University and have the tentative plan of establishment of practising base of Modernized Chemical Application for postgraduates. Our CNG catalytic converter through the European (Euro V ) emission standard on 2004 year.

With advanced technology, we acquire 28 patents are applied, includes 7 invention patent, 13 utility model patent certificate and 8 design patent certificate. Owing to attaching importance to stengthen the protection work of intellectual property rights that our company has been evaluated as a patent trial enterprise by the intellectual property rights bureau of Guangxi Autonomous Region in July, 2007. At the same time, the LPG and CNG three-way catalytic converters have successfully passed Europe Emission Standard IV, and CDPF have met testing standard of Japan (Europe Emission Standard V). Our products are very competitive because they are high on the list of world advanced level among the similar products of the same industry. We adhere to the "people-oriented, only talent can create miracles" talent strategy, Comfortable working environment, Perfect integration west and east enterprise management system and Provides a platform for talent.
