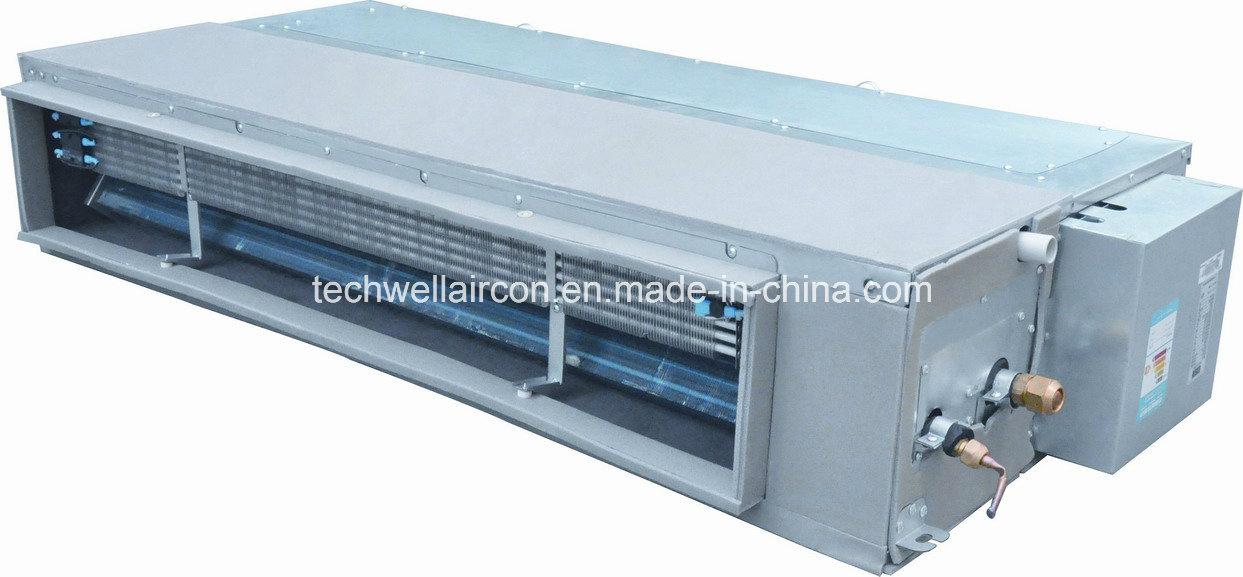

Esp 70PA R22 Duct Type Air Conditioner
| Price: |
US $ 100-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Duct type air conditioner Ultra thin boday, thickness 260mm
Static Pressure: 70PA
Capacity: 24000BTU-60000BTU
Gas type: R22
Power supply: 220V/50Hz
Specification| Model | CTB-24H | CTB-36H-A | CTB-36H | CTB-48H | CTB-60H |
| Power supply | V-Ph-Hz | 220-240V/1Ph/50Hz | 220-240V/1Ph/50Hz | 220-240V/1Ph/51Hz | 220-240V/1Ph/52Hz | 220-240V/1Ph/53Hz |
| Cooling | Capacity | Btu/h | 24000 | 36000 | 36000 | 48000 | 60000 |
| Input | W | 2520 | 4320 | 4140 | 5570 | 6040 |
| Rated current | A | 11.8 | 19.8 | 7.4 | 10.1 | 10.6 |
| EER | W/W | 2.82 | 2.43 | 2.54 | 2.51 | 2.65 |
| Heating | Capacity | Btu/h | 26000 | 39000 | 39000 | 52000 | 60000 |
| Input | W | 2330 | 4090 | 4020 | 5470 | 6140 |
| Rated current | A | 11.1 | 18.8 | 7.2 | 9.9 | 10.8 |
| COP | W/W | 3.35 | 2.82 | 2.87 | 2.82 | 2.61 |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1150/1000/820 | 1900/1600/1300 | 1900/1600/1300 | 2000/1700/1400 | 2000/1700/1400 |
| Static Pressure | Pa | 50-70 | 50-70 | 50-70 | 50-70 | 50-70 |
| Indoor noise level(Hi/Mi/Lo) | dB(A) | 48/44/40 | 50/45/40 | 50/45/40 | 50/45/40 | 50/45/40 |
| Indoor unit | Dimension (W*H*D) | mm | 1190×643×260 | 1425×643×260 | 1425×643×260 | 1425×643×260 | 1425×643×260 |
| Packing (W*H*D) | mm | 1255×720×325 | 1490×720×325 | 1490×720×325 | 1490×720×325 | 1490×720×325 |
| Net/Gross weight | Kg | 32/36 | 44/48 | 44/48 | 46/50 | 46/50 |
| Refrigerant type |
| R22 | R22 | R22 | R22 | R22 |
| Refrigerant piping | Liquid side/ Gas side | mm | Φ9.52/ Φ15.88 | Φ9.52/ Φ19.05 | Φ9.52/ Φ19.05 | Φ9.52/Φ19.05 | Φ9.52/Φ19.05 |
| Connection wiring | Power wiring | mm2 | 3×2.5/3×1.0 | 3×4.0/3×1.0 | 5×1.5/3×1.0 | 5×2.5/3×1.0 | 5×2.5/3×1.0 |
| Signal wiring | mm2 | 5×0.75 | 5×0.75 | 5×0.75 | 5×0.75 | 5×0.75 |
| Controller |
| Wired controller | Wired controller | Wired controller | Wired controller | Wired controller |
| Operation temp | °C | 16 ~ 32 | -7 ~ 43 | -7 ~ 43 | 16 ~ 32 | 16 ~ 32 |
| Ambient temp | °C | -7 ~ 43 | -7 ~ 43 | -7 ~ 43 | -7 ~ 43 | -7 ~ 43 |
| Application area | m2 | 28~50 | 40~70 | 40~70 | 55~95 | 60~105 |
| Stuffing Quantity(20'/40'/40'HQ) | set | 90/190/255 | 75/165/168 | 75/165/168 | 75/165/168 | 75/165/168 |
| Prod Model: |
CTB-xxH |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
CE |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
