| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cooking Pot |
Product Description

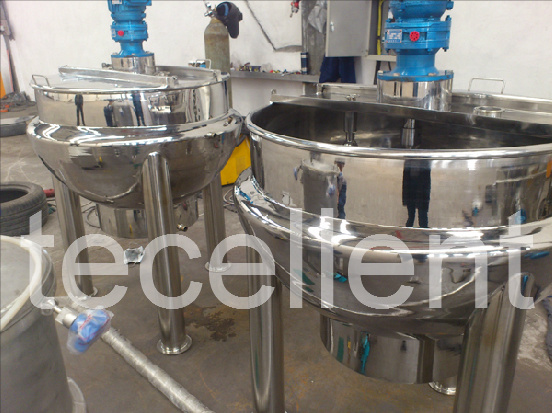

Veritcal-type jacketed kettle is composed of a kettle, a support, a worm gear, a worm and etc.
This equipment is concentrating in open, is mainly for boiling and concentrating of feed liquid in pharmaceutical industry, food processing, chemical industry and other industies. Usually, the components of equipments contact with material are made of SUS304, good corrosion resistance and durable in use, meeting with GMP standard.
|
SPEC./Model |
TECJK50 |
TECLJK100 |
TECJK150 |
TECJK200 |
TECJK300 |
TECJK400 |
TECJK500 |
|
Capacity (L) |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
Working Pressure
in the Jacket |
<0.2 Mpa |
|
Evaporating Capacity (Kg/h) |
30 |
40 |
50 |
65 |
75 |
100 |
150 |
Heating Area
(m2) |
0.4 |
0.45 |
0.76 |
1.0 |
1.44 |
1.6 |
1.9 |
Energy Consumption
(kg/h) |
33 |
44 |
55 |
72 |
85 |
110 |
165 |
|
Unit Weight (kg) |
170 |
190 |
210 |
230 |
360 |
400 |
485 |
Overall Dimension
(mm×mm×mm) |
720×
600×830 |
800×
650×950 |
1350×
660×1000 |
1400×
700×1100 |
1500×
850×1140 |
1550×
900×1140 |
1600×
900×1150
|
WENZHOU TECELLENT MACHINCERY Co., Ltd. is professional manufacturer of equipments and accessories, intergrating in consulation, designing, producing, installing, commissioning and after-sale service. Our core technology and leading products are various evaporators and crystallizers, which are widely used in chemical industry, pharmaceutical industry, dairy production, starch production, fruit juice&jam production, wastewater treatment and etc.
TECELLENT MACHINERY closely adhere to market demands, developing various kinds of evaporators to meet customers' demands: Multiple-effect falling film evaporator, multi-effect forced circulation evaporator, scraper type evaporator, external circulation concentrator, central circulation tubular evaporator, jacket-heating concentrator. We also design and provide complete production lines such as complete production line of fruit & vegetable juice and jam, pharmaceutical production line, biological fermentation project, fine chemical projects and etc. The products are designed and produced in strict accordance with industrial standard.
