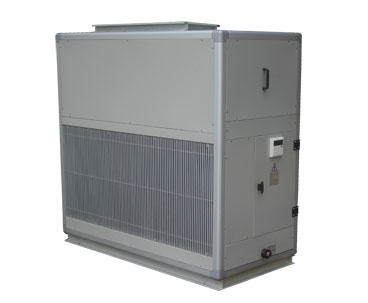

Ducted Split Air Conditioner
Duct Type Air Conditioner
Features:
1. Suitable buildings: Factories, shopping markets, cinemas, schools, hotels, etc.
2. Different indoor unit for your option: Ceiling mounted type, floor standing duct type, floor standing free blowing type.
3. Microcomputer control: Easy operation, adjust temperature to the enviroment
4. Famous hermetic scroll compressor, copeland, Hitachi, SANYO.
5. Copper tubes with aluminium fins evaporator and condenser, copper fins is also optional for condenser;
6. Cooling capacity: 13~156kw.
7. Refrigerant: R22, R407C, R410A;
8. Power supply: 380~415V/3pH/50Hz, 440V/3pH/60Hz, 220V/3pH/60Hz
Specifications:
| Ducted Split Type Air Conditioner (Floor Mounted, R22) 50Hz |
| Model No | HAL05 | HAL06 | HAL08 | HAL10 | HAL12 | HAL15 | HAL18 | HAL20 | HAL25 | HAL30 | HAL36 | HAL40 | HAL50 | HAL60 |
Cooling
capacity | kW | 13 | 15.6 | 20.8 | 26 | 32 | 39 | 46.8 | 56 | 65 | 78 | 93.6 | 104 | 130 | 156 |
| TR | 3.7 | 4.4 | 5.9 | 7.4 | 9.1 | 11.1 | 13.3 | 15.9 | 18.5 | 22.2 | 26.6 | 29.5 | 36.9 | 44.3 |
Heating
capacity | kW | 13.6 | 16.5 | 22.1 | 27.5 | 33 | 41.5 | 48.2 | 56.8 | 69 | 82 | 98 | 110 | 136 | 162 |
| Air flow | m3/h | 2600 | 3100 | 4100 | 5400 | 6500 | 8000 | 9600 | 10800 | 13800 | 16000 | 18500 | 20500 | 25500 | 28500 |
| ESP | Pa | 100 | 110 | 110 | 110 | 120 | 180 | 200 | 200 | 230 | 230 | 260 | 300 | 340 | 350 |
| Power supply | 380~415V/3PH/50Hz (Optional: 440V/3PH/60Hz, 220V/3PH/60Hz) |
| Refrigerant | Type | R22 |
Volume
control | Thermostatic Expansion Valve |
| Compressor | Type | Hermetic Scroll Compressor |
| Qty | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 2 | 2 | 3 | 3 | 4 | 4 | 5 |
| Power(kW) | 4.43 | 5.24 | 6.74 | 8.86 | 10.48 | 13.29 | 15.72 | 17.98 | 20.2 | 26.97 | 30.3 | 35.96 | 43.6 | 50.5 |
| Evaporator | Type | Copper tubes with aluminum fins (Copper fins is optional) |
| Supply Fan | Type | Centrifugal fan |
| Power(kW) | 0.55 | 0.55 | 0.28*2 | 1.1 | 1.5 | 2.2 | 3 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 | 11 |
| Drive method | Direct drive | Belt drive |
| Condenser | Type | Copper tubes with hydrophilic aluminum fins (Copper fins is optional) |
Condensing
fan | Type | Axial fan |
| Qty | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 4 | 4 |
| Drive method | Direct drive |
| Power(kW) | 0.25 | 0.25 | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 3.3 | 4.4 | 6 |
Connecting
tube size | Gas | Φ19.1*1 | Φ19.1*1 | Φ19.1*2 | Φ19.1*2 | Φ19.1*2 | Φ19.1*3 | Φ19.1*3 | Φ28*2 | Φ28*2 | Φ28*3 | Φ28*3 | Φ28*4 | Φ28*4 | Φ28*5 |
| Liquid | Φ12.7*1 | Φ12.7*1 | Φ12.7*2 | Φ12.7*2 | Φ12.7*2 | Φ12.7*3 | Φ12.7*3 | Φ19.1*2 | Φ19.1*2 | Φ19.1*3 | Φ19.1*3 | Φ19.1*4 | Φ19.1*4 | Φ19.1*5 |
| Indoor unit | Length(mm) | 1050 | 1150 | 1250 | 1350 | 1500 | 1700 | 1800 | 1900 | 2000 | 2400 | 2000 | 2000 | 2400 | 2800 |
| Width(mm) | 650 | 650 | 650 | 750 | 800 | 850 | 850 | 850 | 1000 | 1100 | 1400 | 1400 | 1500 | 1550 |
| Height(mm) | 1650 | 1650 | 1800 | 1750 | 1800 | 1950 | 2100 | 2100 | 2000 | 2000 | 1750 | 1950 | 1950 | 1950 |
| Net weight(kg) | 90 | 100 | 140 | 160 | 225 | 280 | 320 | 350 | 440 | 480 | 580 | 630 | 700 | 815 |
| Outdoor unit | Length(mm) | 840 | 840 | 940 | 1050 | 1150 | 1250 | 1900 | 2250 | 2300 | 2350 | 2300 | 3200 | 2300 | 2500 |
| Width(mm) | 840 | 840 | 940 | 1050 | 1050 | 1200 | 1050 | 1050 | 1100 | 1100 | 1250 | 1100 | 2100 | 2200 |
| Height(mm) | 950 | 950 | 1150 | 1150 | 1150 | 1300 | 1200 | 1150 | 1250 | 1500 | 1250 | 1400 | 2000 | 2300 |
| Net weight(kg) | 130 | 140 | 210 | 240 | 360 | 380 | 450 | 480 | 650 | 750 | 860 | 920 | 1360 | 1450 |
