| Prod Model: |
IR602D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Certification: |
CE&RoHS&FCC&ERP |
| Material: |
PRO-Environment |
| Channel: |
Dual |
| System: |
UHF Stereo |
| Frequency Response: |
50-15000Hz |
| Package: |
Customized Package/Gift Package/... |
| Connector: |
3.5mm |
| Effective Transmission: |
10 Meters |
| Style: |
Headband |
| Function: |
Monitoring |
| Type: |
Wireless Earphone |
| Wire Material: |
OCC |
| Microphone: |
Without Microphone |
| Jack Type: |
3.5mm |
| Use: |
Roof DVD or Headrest DVD in Car, Household |
Product Description

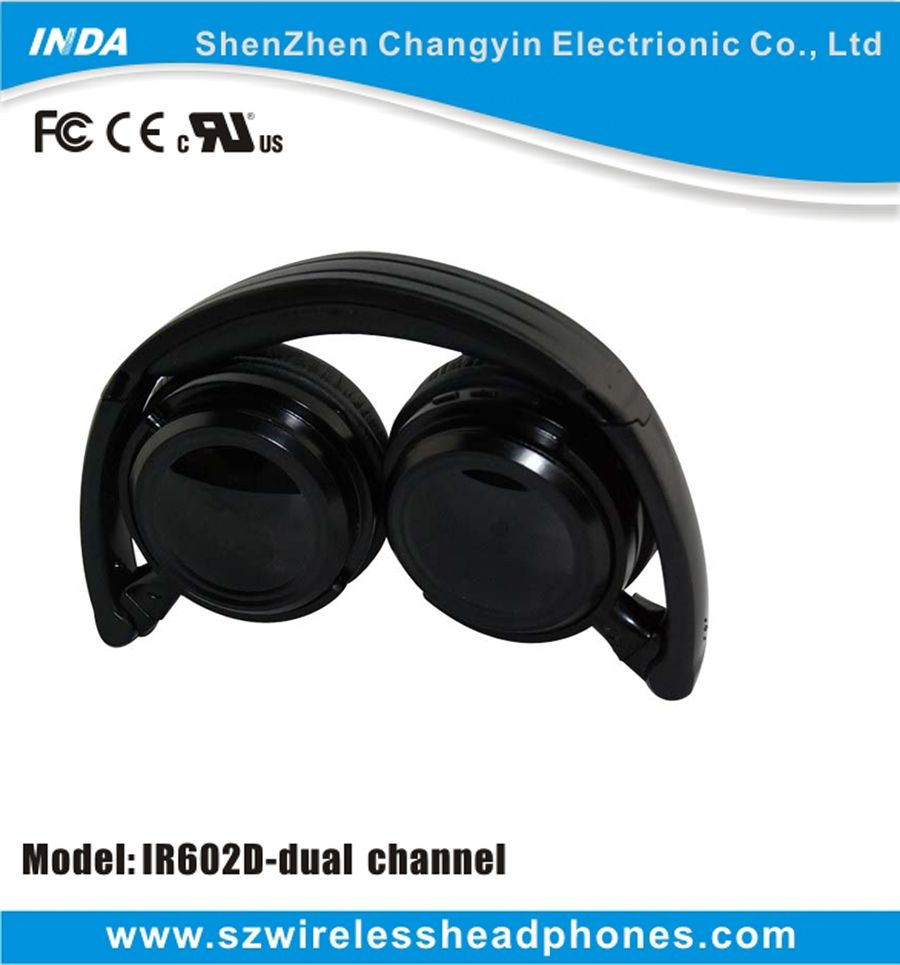

Dual Channel Infrared Wireless IR Headphone for Car DVD Audio System
Feature:
1. Wireless IR headphones to enjoy in car listening without the hassle of cables
2. Operation distance up to 10m with latest infrared wireless technology
3. Folding design for easy compact storage
4. Auto mute and automatic shut-off after 10 min of no signal detection, prevents batteries from draining when left on
5. Active noise reduction system for crystal clear sound
6. Built-in advanced 40mm Mylar speaker to deliver audiophile grade sound quality
7. Several headphones can be used simultaneously with one transmitter
8.3.5mm Auxiliary port. Allows plug in use on any iPad/Pod, MP3 devices that uses a3.5mm auxiliary cord (cord not included)
Specification:
1. IR wavelength: 850nm
2. Carrier frequency:
A) A channel: 2.8MHz for right channel; 2.3MHz for left channel
B) B channel: 3.8MHz for right channel; 3.2MHz for left channel
3. Impedance: 32ohm
4. Audio mode: Stereo
5. Channel separation: >35dB
6. S/N ratio: ≥ 60dB
7. Distortion: <1%
8. Frequency response: 20 - 20, 000Hz
9. Sensitivity: -88dBm± 3dB
10. Power: Receive headphones 2 *AAA battery
The headphones are incredibly versatile they're also equipped with a 3.5mm jack for plugging in a digital music player directly. Best of all, they're compatible with most wireless infrared systems perfect for use in bed at night when the spouse is sleeping, or in the car when mom & dad need piece and quiet. Powered by 2 AAA batteries (not included. )
System
|
Infrared light 850nm
|
Mode
|
IR Stereo
|
Carrier Frequency
|
a) A Channel: Left: 2.3Mhz Right: 2.8Mhz
b) B Channel: Left: 3.2Mhz Right: 3.8Mhz
|
Effective range
|
10M
|
Speaker
|
40mm mylar
|
Impedance
|
32 ohm
|
Frequency Response
|
20~15,000Hz
|
S/N Ratio
|
>65dB
|
Channel separation
|
>50dB
|
Distortion:
|
<1%
|
Power supply
|
AAA*2 batteries
|
