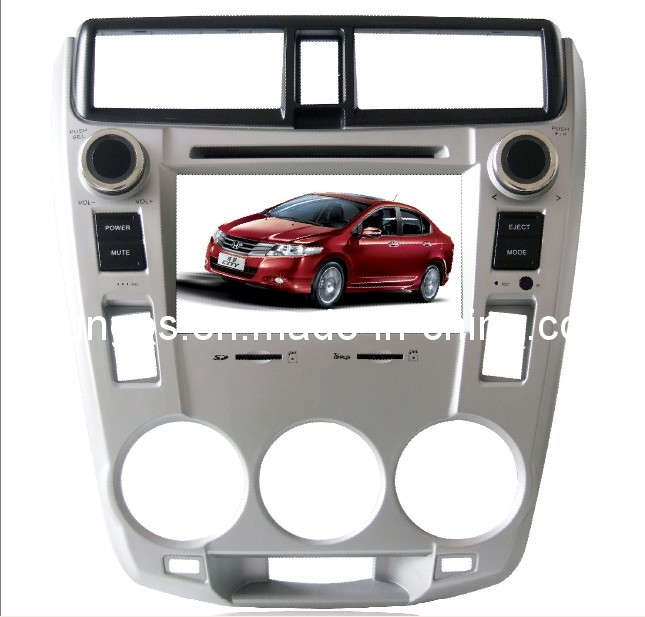

Double DIN 7 inch digital touch screen Car DVD Player With GPS for Honda City with Hebtew, dual zone
Key features:
1. 7 inch 16: 9 800*480 digital high definition TFT LCD touch screen
2. Built-in GPS navigation system
3. Build-in Bluetooth for hand free (Coming Tel No. Display function & Call out directly by touch screen)
4. SD card slot, support MP3/MP4/DIVX/WM etc
5. Compatible with MP3/MP4/DVD/VCD/CD/CD-R/DIVX/CD-RW etc
6. With excellent mechanical anti-vibration and electronic shock protection
7. Uniquely designed circuitry including standby function to increase battery durability
8. Adjustable parameters can be memorized automatically, and resume back to the default value
9. 3D interface make operation to easy
10. Real time clock function
11. One channel video input, two channel video output; Two channel audio input, three channel audio output
12. Dualzone function (lister radio/CD while using GPS)
13. 30 preset radio stations
14. Multi-function OSD menu
15. Small light available on the button of the panel
16. Fluorescent keys available for the remote control
17. Radar detection and rearview mirror both available
18. CDC (multiple disk cartridge) play control function available
19. Original Canbus system for steering wheel control
20. Built-in DVB-T for digital television system (optional)
21. Built-in TV tuner
System parameters
Working voltage: DC 11V-14V
Working current: MAX 15A
Standby current: 25 mA
Video system: Automatic PAL/NTSC
GPS specification
Operation system: WINCE 5.0 CORE
Support map: Garmin, Tomtom, IGO, Route 66 etc
Processor: Samsung high performance processor S3C2440A-40
EMS memory: 64MB SDRAM
Storage device: 128MB
Display output: CVBS+S-VIDEO output
Audio output: Stereo CD Quality
Main frequency: 400MHz
Support audio type: MP3/PCM/WMA
Support video type: ASF/AVI/WMV/DIVX
Chipset: SIRF STAR 3
Frequency: 1.575GHz
Channel number: 20channels
Tracking sense degree: -159dBm
Position accuracy: 10m, 2D RMS, WAAS enable
Velocity: 0.1m/s
Data renewal rate: 1Hz
Re-catching time: Average 0.1s
Hot start time: Average 1s
Warm start time: Average 38s
Cold start time: Average 42s
The biggest fixed height: 18000m
The biggest velocity: 515m/s
Power specification: DV 12V, current<500mA
Consumption: 4.5W(12V/360mA), normal 3W(12V/250mA)
DVD parameters
Video output range: 1+10.2Vp-p(75Ω )
Disc spec: Diameter 12cm disc
Compatible disc: DVD/VCD/CD/MP3/WMA/JPEG/MPEG4
Amplifier parameters
Testing voltage: 13.8V
Maximum power output: 4× 45W
Speaker impedance: 8Ω (4-8Ω Acceptable)
Audio parameters
Track imbalance degree: ≤ 2dB
Segregation degree: ≥ 45dB
Frequency response: 20Hz-20kHz (± 3dB)
Volume adjustment
Low 100Hz± 7dB
Medium 1kHz± 7dB
High 10kHz± 7dB
Radio parameters
FM/AM frequency: FM: 87.5MHz-108MHz
AM: 522kHz-1620kHz
Tune method: PLL frequency complex tune
Display method: TFT Graphical User Interface OSD
Storage quantity
FM radio: 18channels
AM radio: 12channels
Search method
Automatic/manual
|
GPS |
|
Operating System |
Windows CE 6.0 |
|
GPS Resolution Output |
800x480 |
|
Media Player |
Yes |
|
Card Supported |
Normal SD card |
|
MAX Memory Supported |
32GB |
|
Map Supported |
IGO8, Garmin, Tomtom, Route 66 etc ,Support 3D Maps |
|
Display Screen |
|
Screen Type |
Original TFT LCD touch Screen |
|
Resolution |
800*480 |
|
Screen Dimension |
16:9 |
|
Language |
|
Main Interface Language |
Multiple languages such asEnglish, Arabic , Russian.etc |
|
DVD Control Language |
Multiple languages such as English , Arabic ,Russian. etc |
|
GPS Console Language |
Multiple languages such as English , Arabic, Russian. etc |
|
DVD Playback |
|
Disk Format Supported |
DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG |
|
Media |
Support audio type: MP3/PCM/WMA |
|
Support video type: ASF/AVI/WMV/DIVX |
|
Bluetooth |
|
A2DP |
Yes |
|
Microphone |
Built-in |
|
Received Call |
Yes |
|
Dialled Call |
Yes |
|
Missed Call |
Yes |
|
Store Contact list |
Yes |
|
TV Tuner |
|
Built-in Analog TV |
Yes |
|
Analog TV System |
PAL / NTSC / SECAM |
|
Built-in DVB-T Tuner |
Optional |
|
DVB-T Format |
MPEG-2 and MPEG4 both supported, optional |
|
Built-in ISDB-T Tuner |
Support and Optional |
|
Radio |
|
AM Frequency Range |
87.5MHz-108MHZ ,Support Original Radio |
|
FM Tuning Range |
522KHz-1620KHz, Support Original Radio |
|
RDS |
Support Original Radio and optional |
|
Storage Media |
|
SD Card Slot For Music/Movie |
Yes |
|
USB Port For Music/Movie |
Normal USB Port |
|
MAX Memory Supported 32GB |
|
Position: Front Panel |
|
Video & Audio |
|
Video Input |
1-Channel Input |
|
Video Output |
2-Channel Output |
|
Audio Input |
2-Channel Input |
|
Audio Output |
4-Channel Output |
|
Reverse Camera Input |
Yes |
|
Other Functions |
|
2-Zone |
Yes (Listen Radio/CD While Watching GPS Image) |
|
PIP |
Picture in picture funciton |
|
Steering Wheel Control Function |
yes |
|
CANBUS |
Compatible with the original car |
|
V-6 Disc Changer Memory |
No |
|
Parking Assistance |
No |
|
Game |
No |
|
Button Back Light |
Same as the original car |
|
Accessories |
|
User Manual*1,Power Cable*1,Remote Control*1,GPS Antenna*1,Ipod cable*1,USB cable*1,touch pen*1 |
