CHONGQING ZANYO ELECTROMECHANICAL AND MACHINERY CO., LTD. >> Dielectric Oil Purifier

Dielectric Oil Purifier

Dielectric Oil Purifier
Price: US $ 6000-13000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: ZYD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ultimate Vacuum: 4PA
Working Vacuum: 133PA
Working Pressure: 0.3MPa
Power Supply: According to Customers' Power Supply
Working Noise: 60dB
Structure: Mobile
Type: Suction Filter
Mechanical Principle: Vacuum
Usage: Oil and Gas Separation,Oil-Water Separator,Solid

Product Description

Double-Stage Vacuum Insulation Oil Purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYD-II oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD-II oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Features:

1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

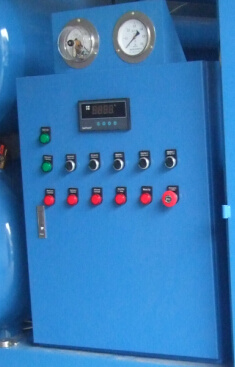

7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

ZYD-II Technical Parameters1
Index nameZYD-II305080100125150200250300
Flow rateL/min305080100125150200250300
Ultimate vacuumPa≤5
Working vacuumpa≤133
Working pressureMpa≤0.3
Working Temperature C30-80
Power supply
380V 50HZ 3Ph (According to customers' power supply)
Continuous working timeH≥200
Working noisedB≤65
Heating powerKW243048607290120150180
Total powerKW28.534.553688099132165198
















Chongqing Zanyo Electromechanical And Machinery Co., Ltd is located in Chongqing, China, the beautiful mountain city of. China. Chongqing city is called "the China filtration equipment & production base". ZANYO is a professional high-tech enterprise which insists on the specialized in the research, design, production, sale and service of oil filtration equipments for these years. Our new techniques for the "T" type evaporator and "S" type heater, thermal recovery system are very popular and we get very good feedback from customers. At the same time, we also design and provide the power equipments, oil testing equipments. Products are well sold at home and abroad and deeply favored by broad masses of clients!

To the company, we spare no effort to seek innovation and produce the stable performance, excellent products under the theory of "people-oriented, energy conservation, environmental protection, customer first, the benefit of future generations". Over the years, we win favorable comments in this circle of filtration. The leading products are transformer oil filtration machine, insulating oil purifier, lubricating oil purification system, hydraulic oil filter machine, turbine oil treatment machine, used motor oil recycling system and other industrial oil filtration machines. We also can provide the oil testers for our customers. The products are widely used in electric power, plant, mining, petroleum, chemical, metallurgy, waste disposal and other industries.

Since the establishment of the factory, we engaged in interior market for nearly ten year. From 2012, we exported the machines to foreign markets. We ZANYO factory always adhere to the basic principles: High quality machinery production.

Culture:

Our purpose: Quality first, Credibility first, Service first", to reach energy-saving emission reduction and win-win situation.

Our value: Users first, Brand success, Repay society

Our belief: Earnest, Innovation, Brave pursuit, Trustworthiness

Our dream: To endeavor to accomplish greater technological breakthrough; To endeavor to supply more environmental, more safely, and more efficient products and schemes; To endeavor to perform to the best and repay society.

Welcome domestic and international old and new customers to come to discuss business, to guidance, and we sincerely look forward to the parties and knowledgeable people work together to create brilliant!

Our products list as following:

ZYS-high effective vacuum transformer oil purification machine

ZYD-I, ZYD-II Double stages insulating oil purifier

ZYM-Mobile/trailer type transformer oil treatment equipment

ZYAD-Air dryer for drying electric equipments

ZYT-Turbine oil filtration machine

ZYJ-Coalescence and separating oil filter

ZYL-Lubricating oil purifier/hydraulic oil treatment device

ZYK- Phosphate ester fire-resistant oil purification machine

ZYR-Transformer oil regeneration device

ZYP-Plate pressure oil filter

ZYJL-Portable oil purifier

ZY-IIJ-II-BDV oil tester, insulating oil dielectric strength tester

ZYMMT-Oil moisture sensor, water content sensor

ZYRS-Engine oil regeneration system

ZYL-D- oil decoloring machine/oil recycling machine
