| Prod Model: |
QDZH30G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Qdzh30g |
| Power: |
12/24VDC |
| Power Sourc: |
Battery or Solar |
| Usage: |
Vehicle Freezer |
| Freezer Volume: |
100L |
| Max Cooling Capacity: |
86.4W |
| Function: |
Cold Storage & Freezing |
| Type: |
Chest/Deep Freezer |
| Door Type: |
Swing Door |
| Door Number: |
Single Door |
| Defrost Type: |
Auto Defrost |
| Capacity: |
101-200L |
| Power Source: |
Solar |
| Temperature Type: |
Double-temperature |
| Temperature Control: |
Smart Thermostat |
| Certification: |
CE |
Product Description
1-MAIN FEATURE:
High efficiency
Low vibration
Good reliability
Experienced staff ensure produce of the compressors with good quality.
2-SIMPLE SPECIFICATION:

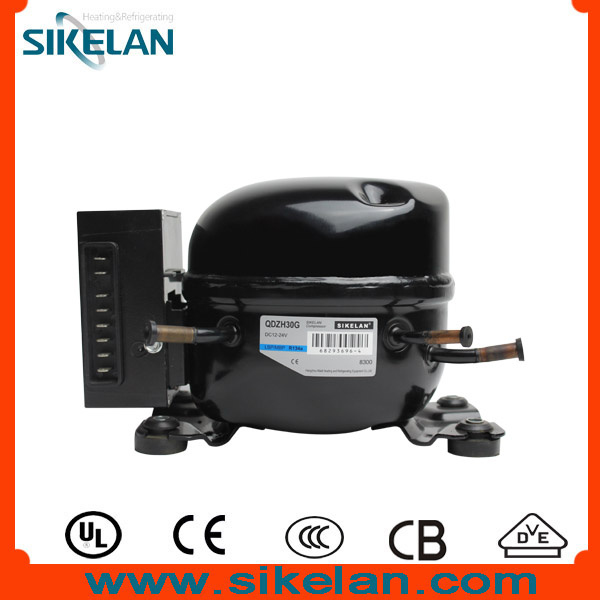

1)QDZH30G, DC series, use R134a refrigerant;
2)Voltage application 12/24VDC;
3)Cooling type: FC;
4)Application: Low Back Pressure;
5)Max Cooling Capacity: 86.4W;
3-CERTIFICATE: CE.
4-STORAGE CONDITION:
1)Compressor should be stored in a dry and drafty place
2)Compressor should not be tilted or inverted in storage, transportation and
Installation; Collision should be avoided.
3)Rubber plugs should not be pulled out from discharge tube before installation so
As to avoid impurity and humidity. During the installation, the rubber plugs of
Discharge tube should be pulled out at first, then the rubber plugs of process
Tube, and the rubber plugs of process suction tube at last. The installation should
Be completed within 10 min after that.
4)The accessories (eg. Starter, thermal protection etc. ) are nor installed into
The compressor while delivery, but in the accessory case. Be sure to select the
Corresponding starter and thermal protection models rightly.
|
DC() |
|
DC COMPRESSOR PERFORMANCE PARAMETER |
|
Refrigerant |
Application |
Model |
Displacement (cm3) |
Rotate Speed (rpm) |
Capacity (W) |
|
Oil charge |
Cooling Typr |
Power Supply |
Certificate |
|
–23.3(ASHRAE) |
COP |
EER |
|
W |
Kcal/h |
Btu/h |
W/W |
Btu/W.h |
ml |
|
R134A |
LBP |
QDZH25G |
2.5 |
2000 |
43.0 |
37.2 |
146.0 |
1.08 |
3.68 |
160 |
FC |
12/24V (DC) |
CE |
|
2500 |
53.0 |
45.8 |
186.0 |
1.05 |
3.58 |
|
3000 |
62.0 |
53.5 |
211.0 |
1.06 |
3.62 |
|
3500 |
72.0 |
62.2 |
245.0 |
1.04 |
3.55 |
|
QDZH30G |
3.0 |
2000 |
51.6 |
44.6 |
176.0 |
1.05 |
3.58 |
|
2500 |
63.6 |
55.0 |
217.0 |
1.05 |
3.58 |
|
3000 |
74.4 |
64.3 |
254.0 |
1.06 |
3.62 |
|
3500 |
86.4 |
74.7 |
295.0 |
1.04 |
3.55 |
|
QDZH35G |
3.5 |
2000 |
60.0 |
51.9 |
204.6 |
1.08 |
3.68 |
|
2500 |
73.0 |
63.1 |
248.9 |
1.07 |
3.65 |
|
3000 |
86.0 |
74.4 |
293.2 |
1.06 |
3.62 |
|
3500 |
100.0 |
86.5 |
341.0 |
1.05 |
3.58 |
