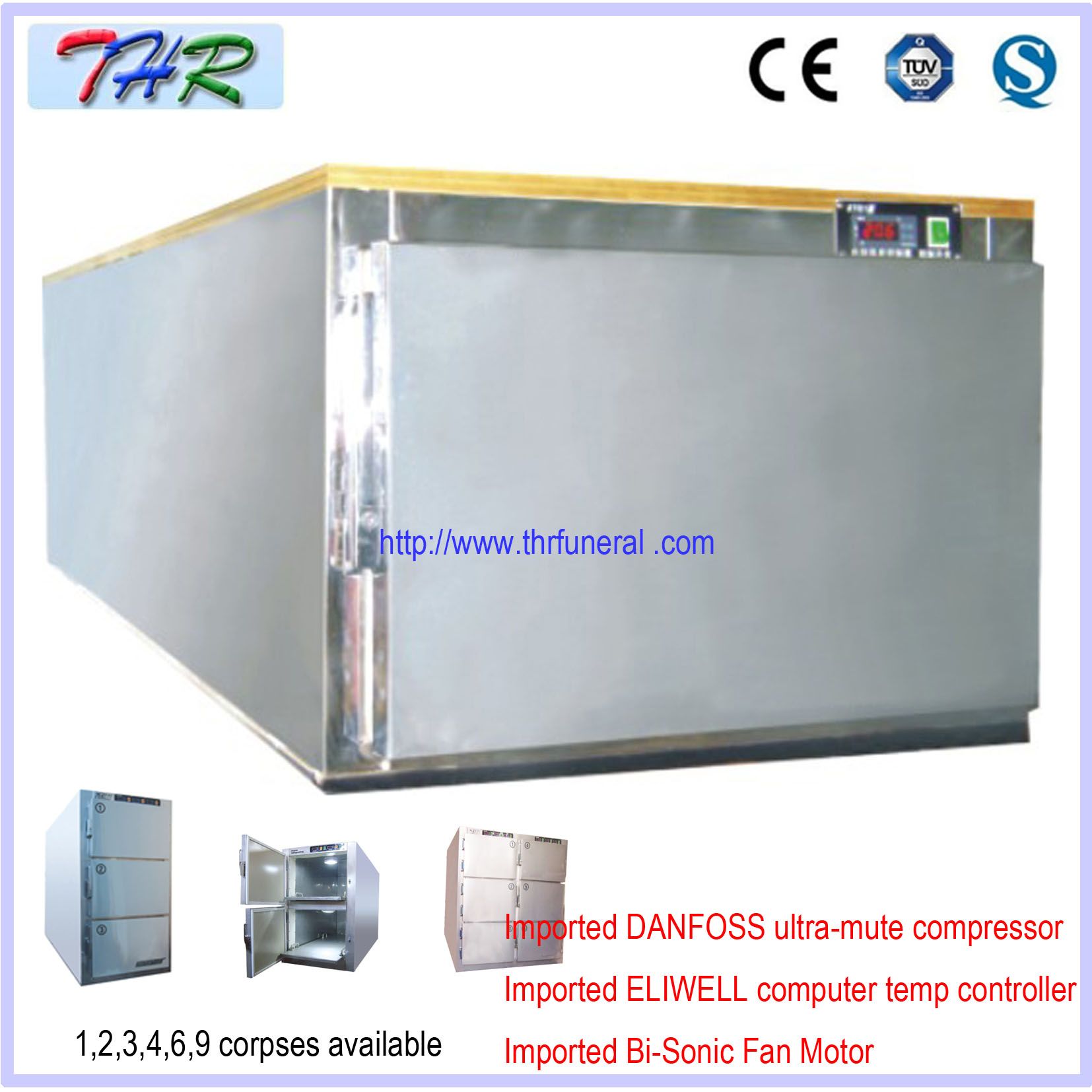

Corpse Refrigerator

THR-STG1 corpse cold storage

Description
Layers: 1 unit
GB rated temperature: 1-5 ° C
Minimum of temperature: -18° C-30° C
Compressor unit: 1 unit
Digital display computer thermostat sets: 1 unit
Power: 220V/50Hz
Compressor types: Imported
Inside tray size: 1900*600*360mm
Dimension: 2520*850*650mm
Weight: 150kgs

The corpse cold storage and freezing box /corpse cabinet is a series of product for hospital, funeral parlor, and postmortem examination department to store the corpse.

---Precise temperature control system
The worldwide famous high-accuracy computer-controlled temperature system with original binding can maintain the temperature constancy in the box at 3± 2° C precisely.
The temperature set-value can be adjusted at -16° C~6° C, and the temperature display precision is 0.1° C, the resolution is 0.1° C and the adjusting increment is 0.1° C.
The value is to be displayed through three-digital high-brightness figure.
The system has special high-resolution temperature calibrating function. That means the set-value figure can be displayed and calibrated at -10.0~10.0° C.
The calibrating increment is 0.1° C.
The forced cold-air circulation system with intelligence-control fan can ensure the temperature uniformity inside the box.
---Safe control system
Keyboard lock, password protection function, and method against missing-adjustment of the operating parameter; Setting of the alarm temperature range.
Code display of the failure position (some machines have all these seven alarms);
Three alarm ways (buzzer alarm, flashing alarm, remote signal alarm)
The starting delay function due to self-checking and the interval protection function between temporary stop and start can ensure the reliable operation;
The system can record the condition of the maximum and the minimum temperature inside the box automatically without recording paper.
The inbuilt lithium accumulator can keep displaying the temperature inside the box and can keep the light and sound alarm available for 72 hours after electricity failure.

---Refrigeration system
Import and adopt the original binding Germany DANFOSS high-performance compressor;
Import and adopt the original binding "Bi-Sonic" double fan strongly against the low temperature and moisture;
Germany "EBM" heat elimination fan;
Fluoride-free refrigeration system for environmental protection to make green products and create green world.

---Humanization design

Adopt the high-quality gel strip for door gasket with strong ageing resistance ability, which can lengthen the service life of the door gasket.
The number of the independent imported low temperature refrigeration system is same as the number of the corpse in one refrigerator, and each refrigeration system's temperature range can be adjusted individually, and the temperature of each chamber is independent.
The bottom side of the corpse tray has many rows of small roller wheel for moving the tray easily.
The internal and external shells of the refrigerator are made of high-quality stainless steel materials.
Copper vaporizer cooling pipeline can guarantee the ultra-long service life.
The refrigeration system of each chamber is individually controlled, and the temperature can be adjusted without interference.
The safe lock design can prevent missing-opening.
Wide voltage band is available for 187-242V voltage.

---Optional items:
1.24-hours tracing, recording and printing system[Optional]
2. The EPS emergency supply is adoptable;
3. The DC24V-AC220V inverter is adoptable, and the DC24V power supply can keep the refrigerator under normal operation.
