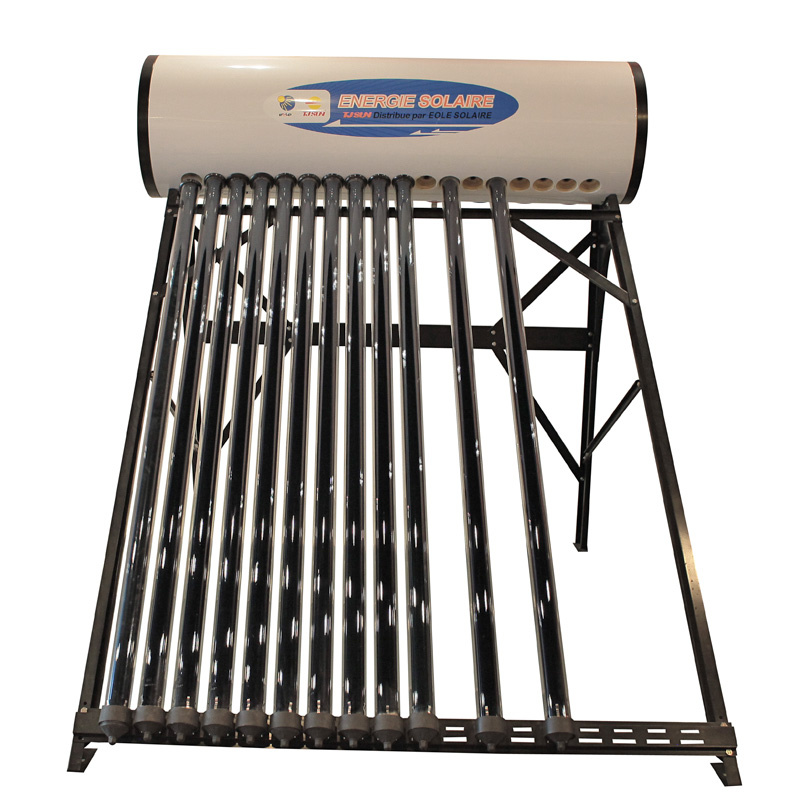

Copper Coil Pressurized Solar Water Heater

Name: Copper Coil Pressurized Solar Water Heater
Brand: ec-portal.com
SKU: 679204885
Availability: InStock
Rating: 5 (111 reviews)

Price:	US $ 315-321/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Copper Coil Pressurized Solar Water Heater

Advantages:
Sunlight is captured by the coated vacuum tubes which absorb the radiation as heat and conduct it through aluminum fins to the copper pipes.

A manifold on the top of the solar collector allows the working fluid (typically anti-freeze) to be pumped through all of the copper pipes in parallel, and then through an external heat exchanger which transfers the heat to water in a pressurized storage tank.

Features:
1.No water flows in the evacuated tube, so water scale and tube exposition are avoided. Single broken tube will not affect the working of the system.

2.It can be integrated with the architecture perfectly and be connected with the existing pipes.

3.Interferential film coated evacuated tube with absorptance among 94% to 96%; Vacuum degree of 5× 10-4 PA; Its service life will be not less than 15 years.

4.Heat pipe collectors have passed the Solar Keymark certificate and CE certificate, met EN12975 standard. A heat pipe collector is comprised of a manifold and many vacuum tubes each containing one copper pipe.

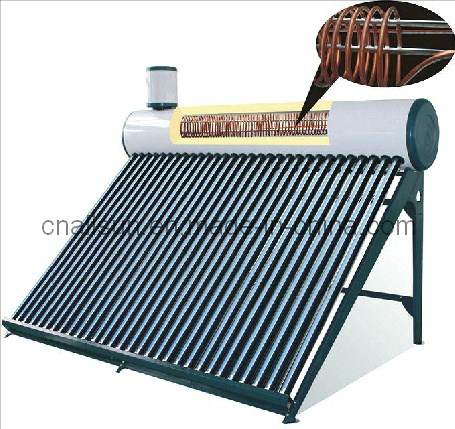

Preheating Solar Water Heater(with copper coil in tank) SP-C series

Model

Volume of Storage Tank

Outer Diameter/Length of Tube

Tube Quantity(unit)

Water tank

Dust Ring Gasket

Vacuum Tube

Heat exchanger

Frame

Working Pressure

Rack Insert

Copper coil length(m)

Insulating Layer

Dia outer/inner

Outer Tank

Inner Tank

SP-C-15

150L

φ58mm/ 1800mm

Polyurethane Foaming, Thickness: 55mm

470/360mm

Color Steel Plate(enamal white), Thickness: 0.31mm

stainless steel SUS304-2B; Thickness: 0.4mm;

Silicon Rubber

tri-element tube;High boron and silicon content 3.3;Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;Vacuum Degree:P<=5*10-4;Service Life:15 years

bearing mechanical imping ment ability:no damage of tube after steel ball diameter φ30mm falls freely from 450mm above onto the middle of tubes vertically

copper coil

Galvanized steel plate with plastic spraying, Thickness:1.2mm

Normal working pressure: 6 bar; Test pressure: 12 bar

ABS

SP-C-20

200L

SP-C-24

240L

SP-C-30

300L

Prod Model:	TJUSUNP58-1800*16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Compact Type
Pressure:	Pressurized
Interior Material:	Copper
Collector Components:	Glass Vacuum Tube
Certification:	Solar Keymark /SRCC/ Sabs
