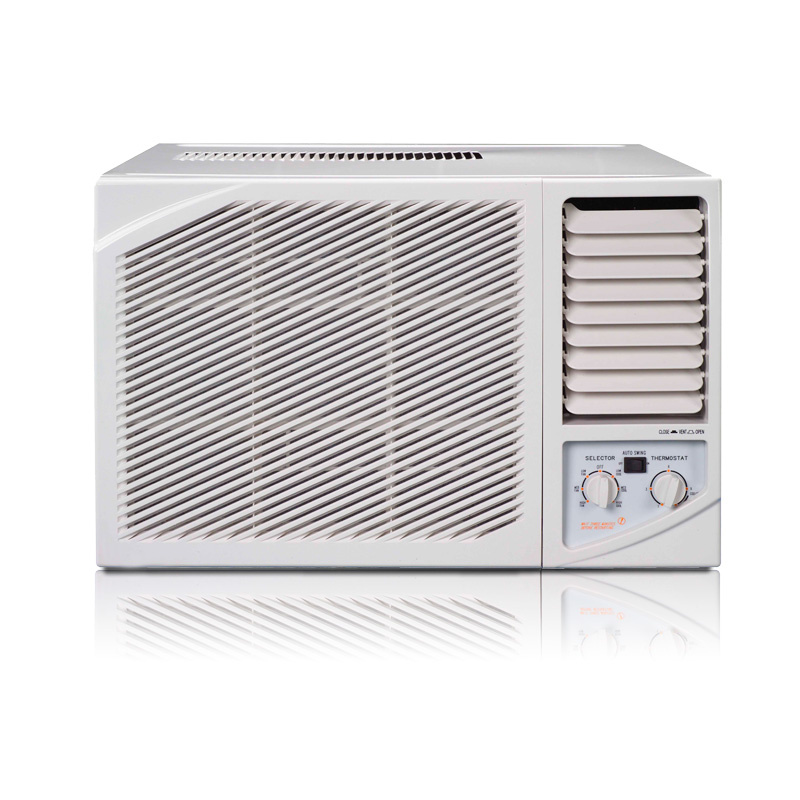

Cooling Only 24000 Btu Split Window Air Conditioner
Features
1. Intelligent control and display technology
2. Cooling only 24000Btu window type air conditioner
3. Wide voltage design
4. Dual air guide plate technology
5. Memory functions
6. Sleeping mode automatic control
7. Audio prompt diagnosis on failures
8. Timed switch-on and switch-off
Technical data
Power supply | Ph-V-Hz | 1Ph ,220-240V~,50Hz |
| Cooling | Capacity | Btu/h | 24000 |
| Input | W | 2790 |
| Rated current | A | 12.2 |
| EER | W/W | 2.21 |
| Heating | Capacity | Btu/h | ---- |
| Input | W | ---- |
| Rated current | A | ---- |
| COP | W/W | ---- |
| Moisture Removal | L/h | 2.2 |
| Max. input consumption | W | 3500 |
| Max. current | A | 18 |
| Starting current | A | 75 |
| Compressor | Model | | QP407PAA |
| Type | | ROTARY |
| Brand | | LG |
| Capacity | Btu/h | 24100/24200 |
| Input | W | 2317/2420 |
| Rated current(RLA) | A | 10.9/220V;10.7/240V |
| Locked rotor Amp(LRA) | A | 75 |
| Thermal protector | | ---- |
| Thermal protector position | | INTERNAL |
| Capacitor | uF | 60 |
| Refrigerant oil/oil charge | ml | SUNISO 4GSI/ATMOS M60/700±10CC |
| Refrigerant type | g | R22/750g |
| Design pressure | MPa | 2.6/1.0 |
| Plug type | | 2.5x3/---- |
| Thermostat type | | Mechanical control |
| Operation temp | ºC | 17-30 |
| Ambient temp (cooling/heating) | ºC | 18-43/---- |
| Application area | m2 | 31-51 |
| Dimension(W*D*H) | mm | 660x680x428 |
| Packing (W*D*H) | mm | 725x795x475 |
| Net/Gross weight | Kg | 58/62 |
| Qty'per 20' /40' /40'HQ | | 84/176/220 |
