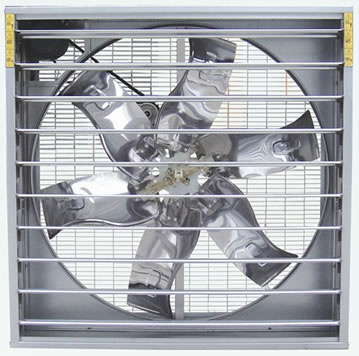

cooling fan for industry/poultry
Advantages:
Strong air flow
High reliability
Low power consumption
Long durability
Low maintenance
Easy to install
Suitable for different application
Low noise
Safe in use
Advantages:
1. High cooling efficiency and Reliable quality
2. Low noise and high performance
3. Available in various designs and specifications
4. Professional service and wholesale price
FEATURES
Industrial Exhaust fan's Motor and propeller
Blade is 6 paddle
Motor is 1.1KW
standard motors are totally enclosed, high efficiency
all motors are designed and rated for years of trouble free operation
each motor is individually tested for 100% quality control
Maintenance free motor.
Heavy duty casting pulley and hub
1 cog belt type XPA high efficiency
Exhaust fan's Shutter
Shutter with PVC extrusion frame
All corner are weld and have extra stainless steel corner
PVC louver with T bar
Wire by pass
Warning logo
Easy clip to remove shutter
Guard; powder coat and cold zinc galvanise for better protection
Industrial exhaust fan's Housing
Corrosion resistant fiberglass housing.
FRP molded impact resistant with U.V. protection for better durability, and life
Extra liner FRP resin inside for easy cleaning and minimal dirt and disease
| Model specifications | blade mm | Blades rotational speed rpm | Motor rotational speed rpm | Air flow m3/h | Total pressure | Noise decibels | Import power | Rated voltage | High mm |
| JLF(a)-620 | 500 | 1400 | 960 | 23000 | 75 | ≤70 | 550 | 380 | 780 |
| JLF(a)-780 | 710 | 960 | 960 | 23000 | 75 | ≤70 | 550 | 380 | 780 |
| JLF(a)-830 | 720 | 660 | 1400 | 22000 | 60 | ≤60 | 550 | 380 | 830 |
| JLF(a)-900 | 750 | 630 | 1400 | 28000 | 65 | ≤65 | 370 | 380 | 900 |
| JLF(a)-1000 | 900 | 610 | 1400 | 30000 | 70 | ≤70 | 750 | 380 | 1000 |
| JLF(a)-1100 | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100 |
| JLF(a)-1220 | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220 |
