| Prod Model: |
BE-2700C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sound Field Force: |
Pressure Type |
| Directivity: |
Omni-direction |
| Signal Transmission: |
Wired |
| Transducer Principle: |
Semiconductor Microphone |
| Application: |
Meeting |
Product Description
Conference systems BE-1000 controller
Clear sound, High Definition, anti-interference, high security, easy installation
Feedback control function inside
AC and DC features dual safety device
Control up to 60 units in one system. 3 tracking connect roads, can control up to 120 units by
Connecting another controller.
Chinese and English LCD display, manual setting by buttons on the controller
Conference mode (Chinese/English)
FREE no limited delegate units can be open simultaneously
LIMIT 1/3/6 units can be open simultaneously
FIFO 1/3/6 units can be open simultaneously, when turn on the next unit, the first unit will be shut down automatically
Volume control, LCD display
Interface for meeting recording, multi channels for input or output
Telephone coupler interface
SPECIFICATIONS
MODEL NAME System discussion BE-1000 CONTROLLER
Input/output 8P-DIN× 4
Input MIC 6.3mm× 1 RCA× 2
Output XLRM× 1(balance)RCA× 1
Power supply AC220V-50Hz
Current drain 120W(MAX)
Frequency response 100-14kHz
Dimension 480× 350× 66mm
Weight 4.5kg
Colour black

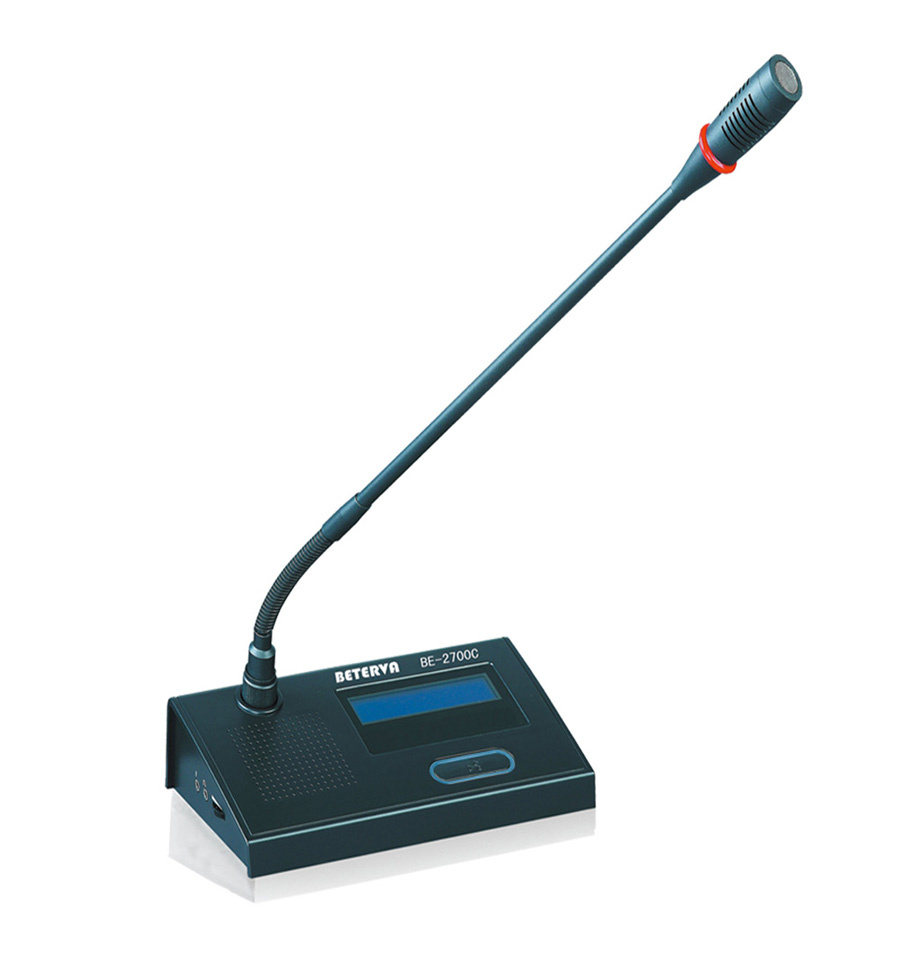

Conference systems BE-2700C/D
Chairman/delegate units
160*32 LCD Chinese/English display for showing the conference information and equipment status
Unit-direction condenser microphone
Red ring indicator on the head of the gooseneck microphone
Double colour indicators on the microphone buttons
Controller supply DC240V to units, it is safe for operation
Inside loudspeaker will be off automatically when the unit is on, 3.5mm earphone jack, volume
Control knob
Lapel microphone interface
Delegate units are hand in hand connecting by splitter
Chairman priority function, can shut down all the delegate units
Numbers for chairman units is unlimited, and can be connected at any position of the system
Chairman unit can not be controlled by other conference mode
NAME System discussion BE-2700C/D MIC UNIT
Input/output (8P-DIN× 1)
Input MIC
Power supply DC24V
Current drain 40mA
Sensitivity -47dB
S/n 65dB
Frequency response 100-10kHz
Dimension 190× 105× 52mm microphone stem 400mm
Weight 1kg
Colour silver-white/ grayish-black.
