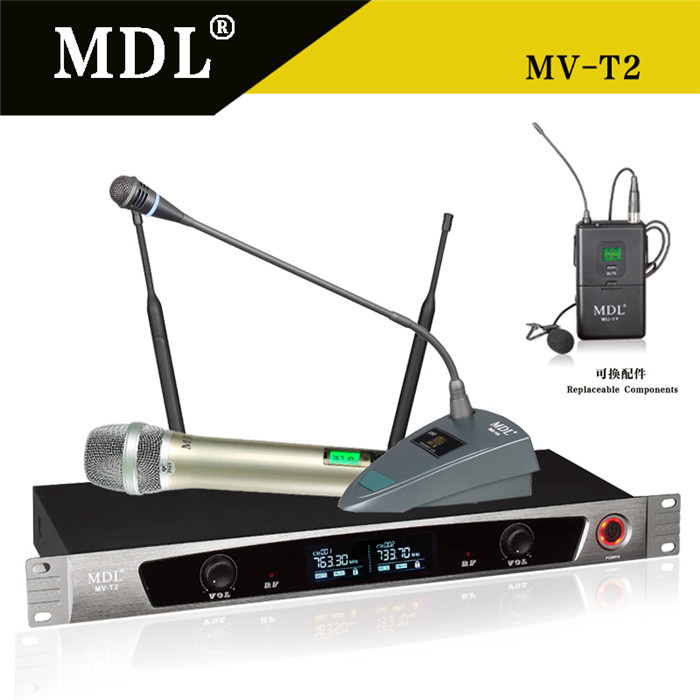

| Prod Model: |
MV-T2 |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
Product Description
carrier frequency range: 520MHz-960MHz (depending on
applicable national standard)
RF output power: the biggest 30 mW (depending on
applicable national standard)
Oscillation mode: PLL (digital frequency synthesizer)
Launch frequency stability: < 30 PPM
Dynamic range:≥100dB(A)
Frequenry response: 50Hz-15KHz
Maximum input pressure: 130 dB SPL
Microphone sound pickup head: Handheld launcher (moving coil type)
Purse type launcher/Meeting a type transmitters (capacitor)
Power supply: 9 V battery cascad
Working current: 20 mA
FIXED RECEIVER
carrier frequency range: 520MHz-960MHz (depending
on applicable national standard)
Modulation mode: FM
Oscillation mode: crystal oscillation
Scattered stray or: ≥80Db
Image and spurious rejection: ≥80Db
Sensitivity:5dBuV
Voltage output:
Balance outout for(XLR output jack): 250mV/600Ω
Mix output for (1/4" output jack):400mV/3KGΩ
working distance: 50-80meters (based on the use of the environment)
Working voltage: DC12-16 V
Working current: ≤400mA
Our factory is a research and development, production and sales of enterprises. Mainly produces microphones, stage and sound settings, and other products. Has a strong technical force and strict quality management system, excellent product quality to win customer recognition and praise!
"OEM" "ODM" processing production, welcome all friends to invite agents throughout the country to join, create brilliant!
